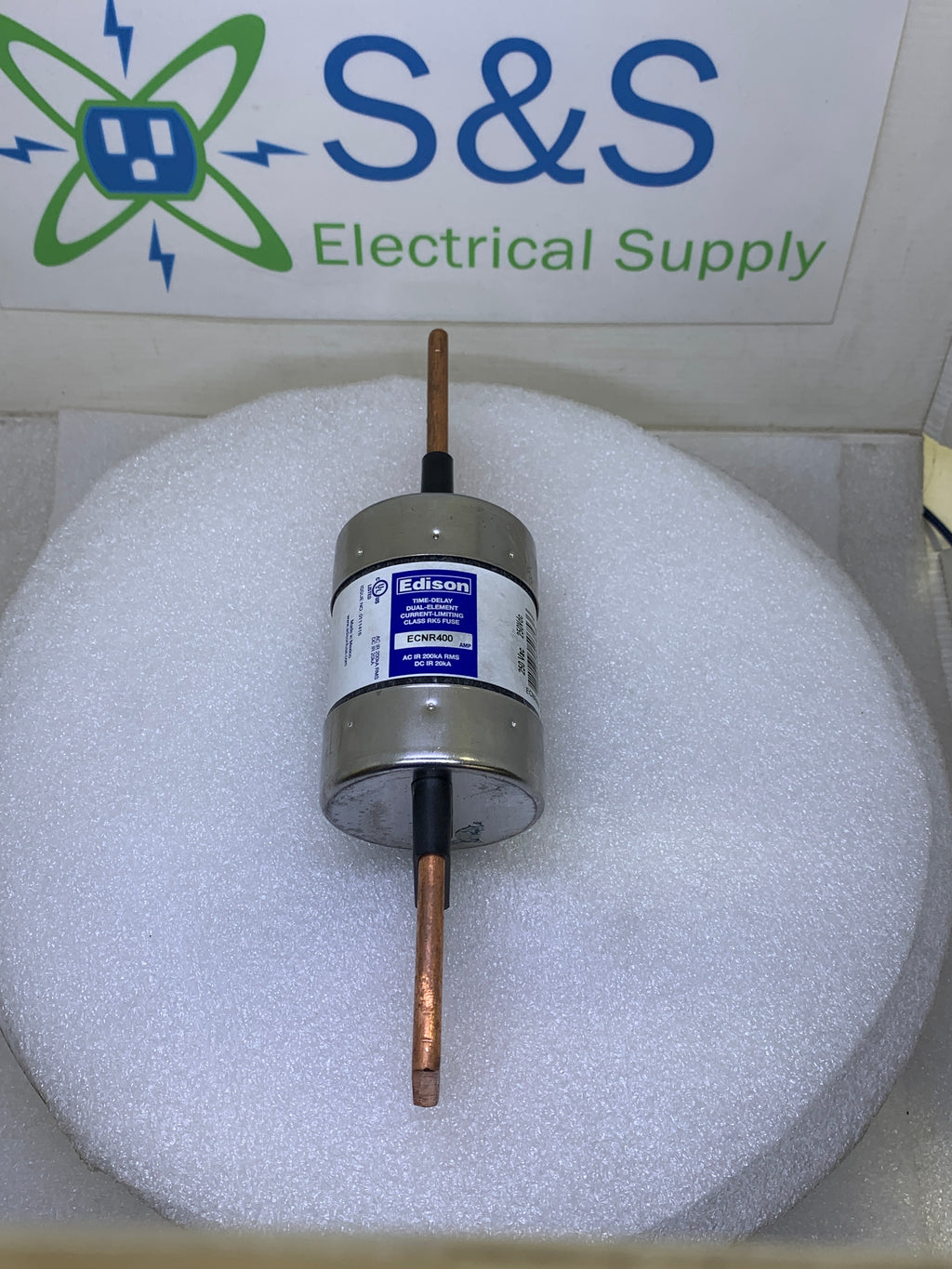

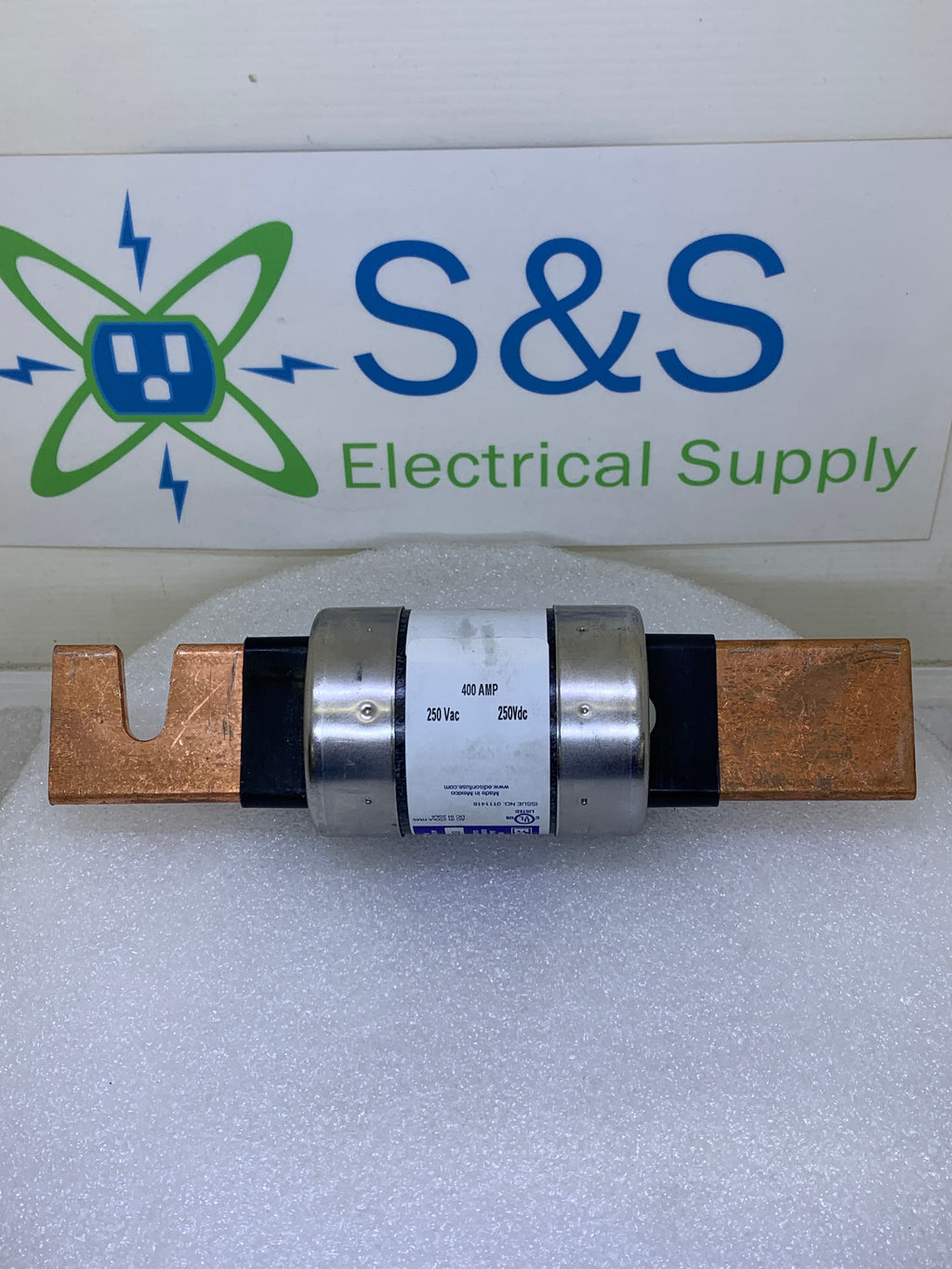

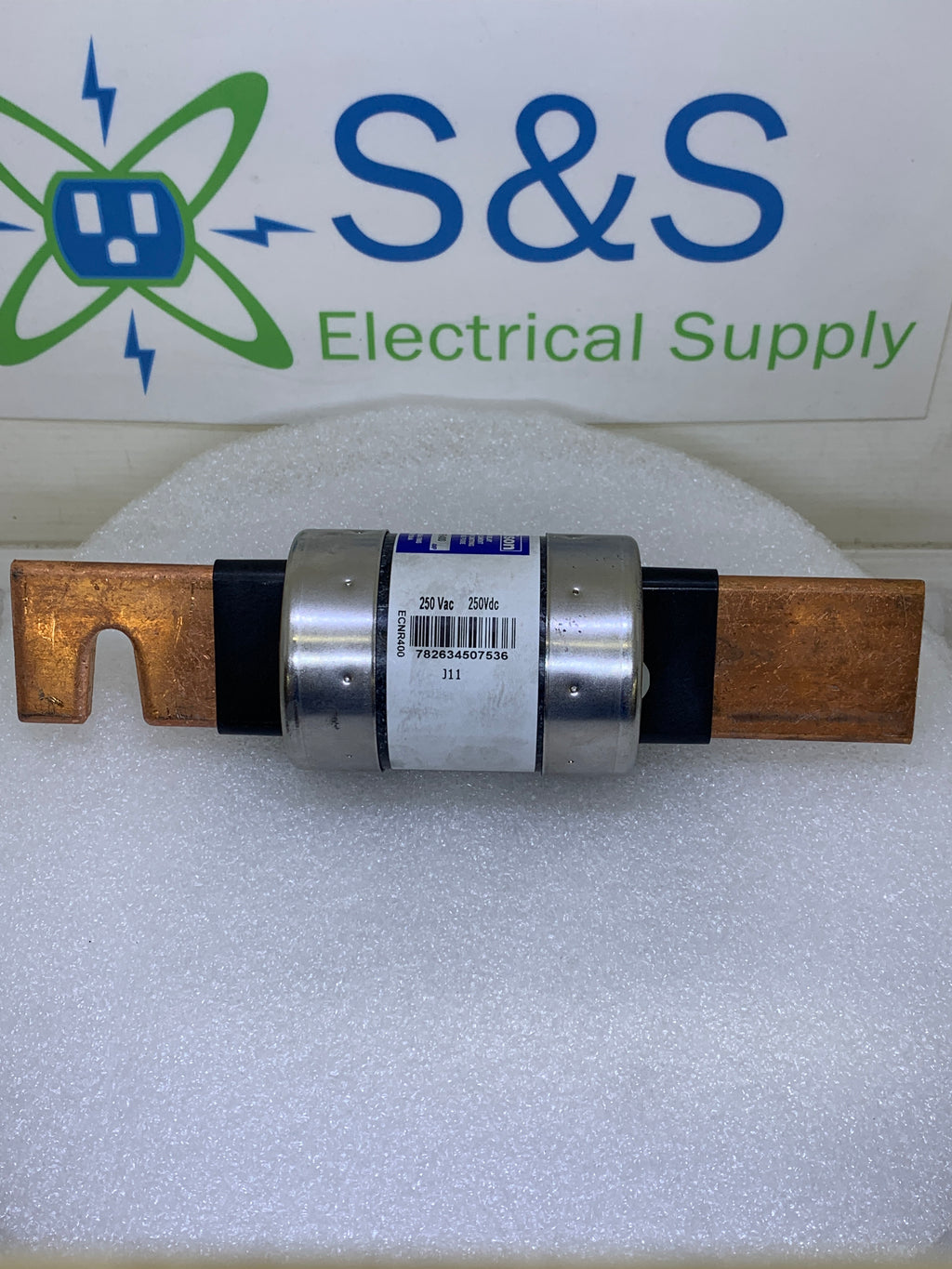

Edison ECNR400 400 Amp 250V Time Delay Dual Element Class RK5 Fuse

Edison / BulletSKU: 09152605JH
filler

Style: Used
Price:
Sale price$51.45

Shipping calculated at checkout

Stock:
In stock (2 units), ready to be shipped
By placing your order you agree to purchase from Global-e as the merchant of record, subject to Global-e’s Terms and Conditions and Privacy Policy, and share your information with S&S Electrical Supply.

Description

The Edison ECNR400 is an industrial grade 400 Amp 250V Class RK5 dual element time delay fuse manufactured under Eaton's Bussmann division. It provides critical current-limiting protection against short circuits and temporary electrical surges.

Key Specifications:
  • Amperage / Voltage: 400 Amps | 250 VAC / 125 VDC
  • Interrupting Rating: 200 kAIC (symmetrical)
  • Time-Delay Characteristic: 10 seconds minimum at 500% of the rated load to prevent nuisance tripping during motor start-ups.
  • Body Type / Dimensions: Cylindrical knife-blade terminal body, measuring approximately 2.38 inches in diameter by 8.63 inches in length.
  • Applications: Widely utilized in branch and feeder circuits, AC drives, transformers, heating, lighting, and motor backup safety.
