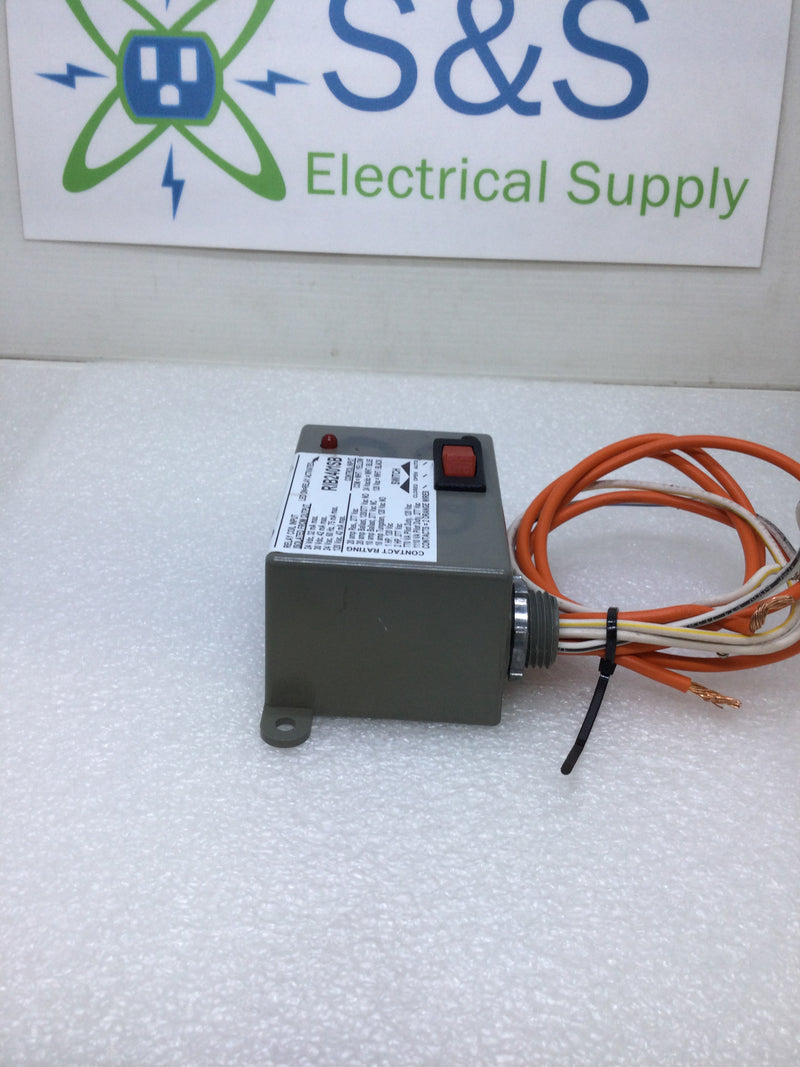

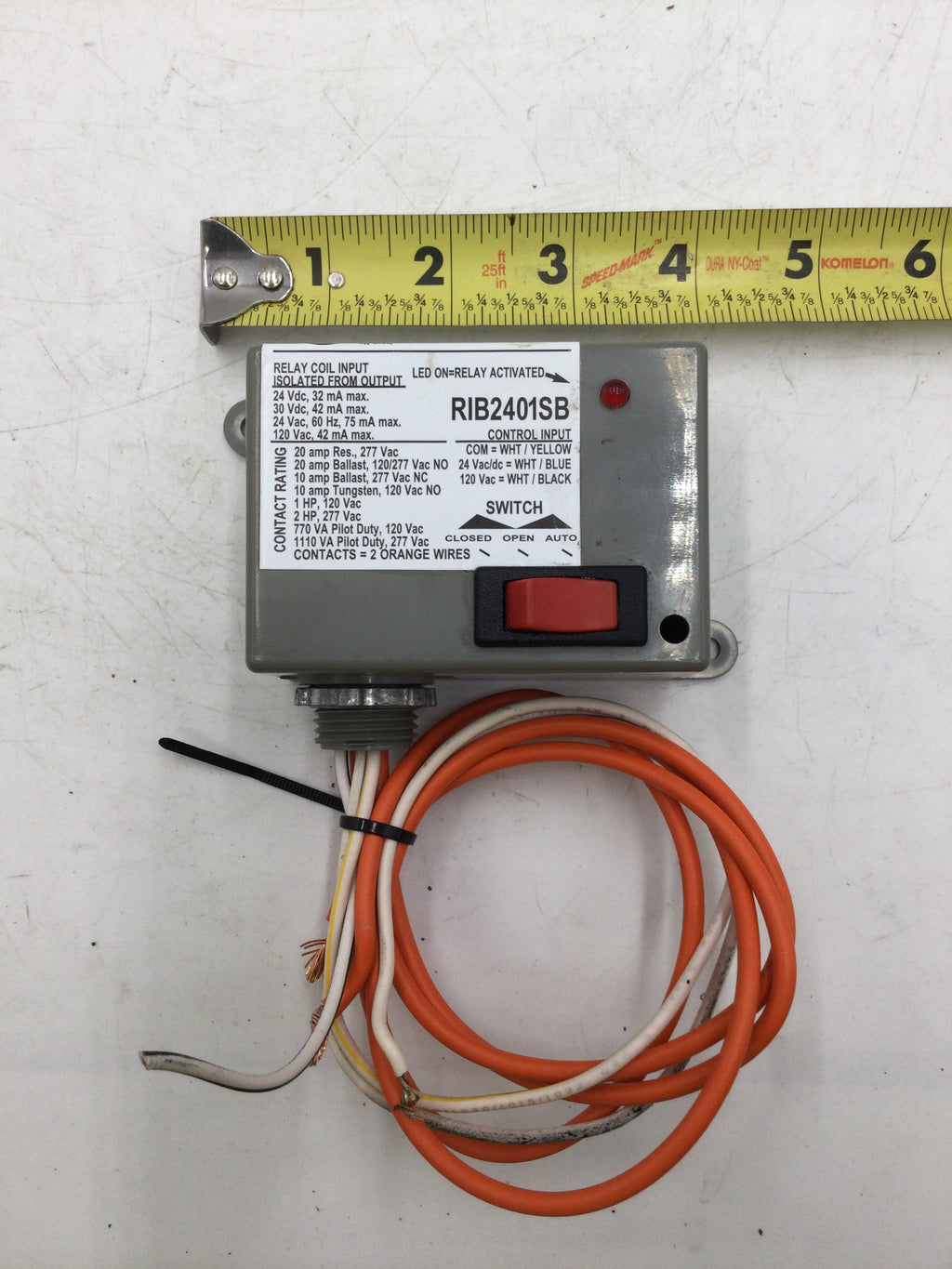

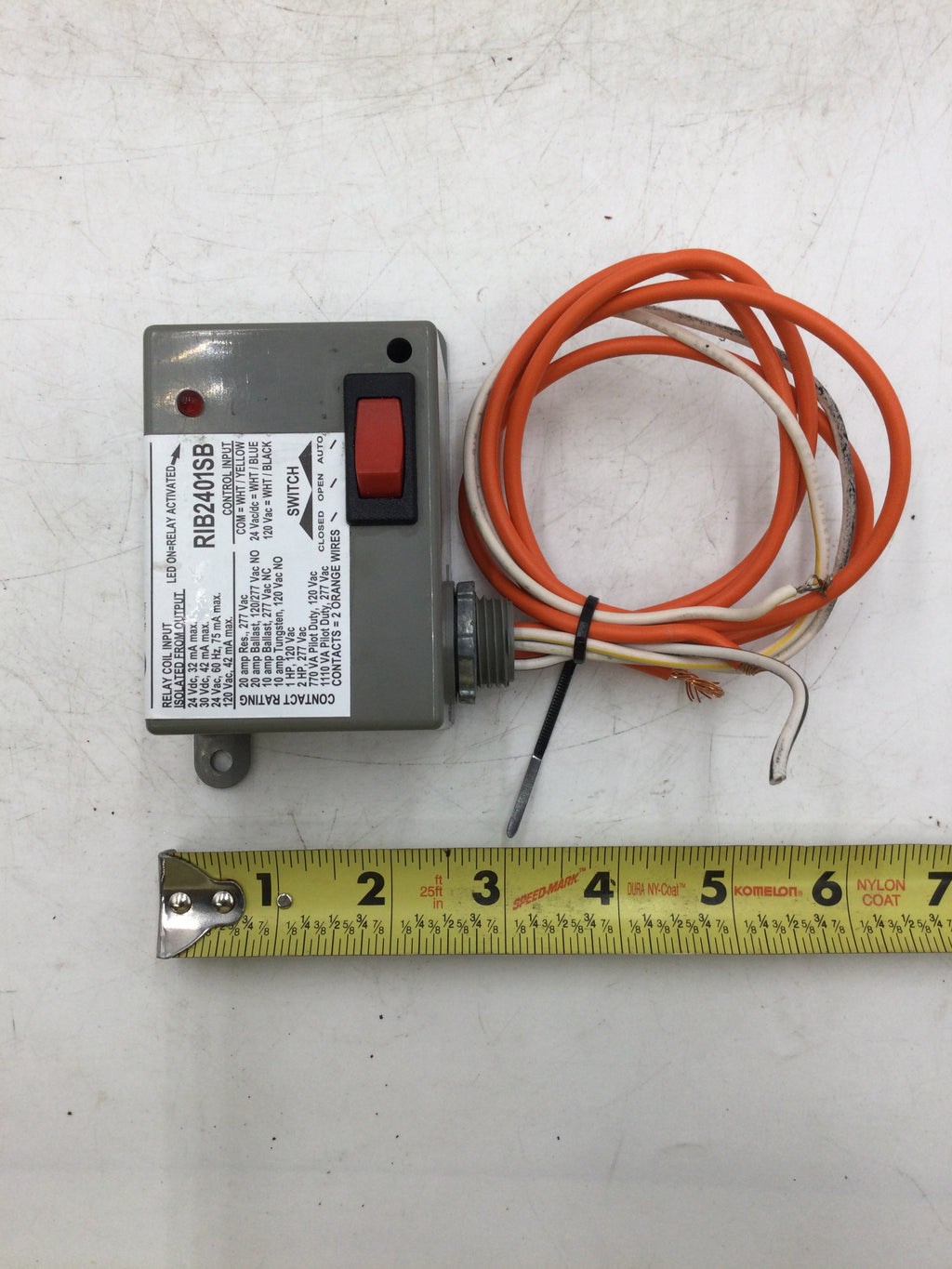

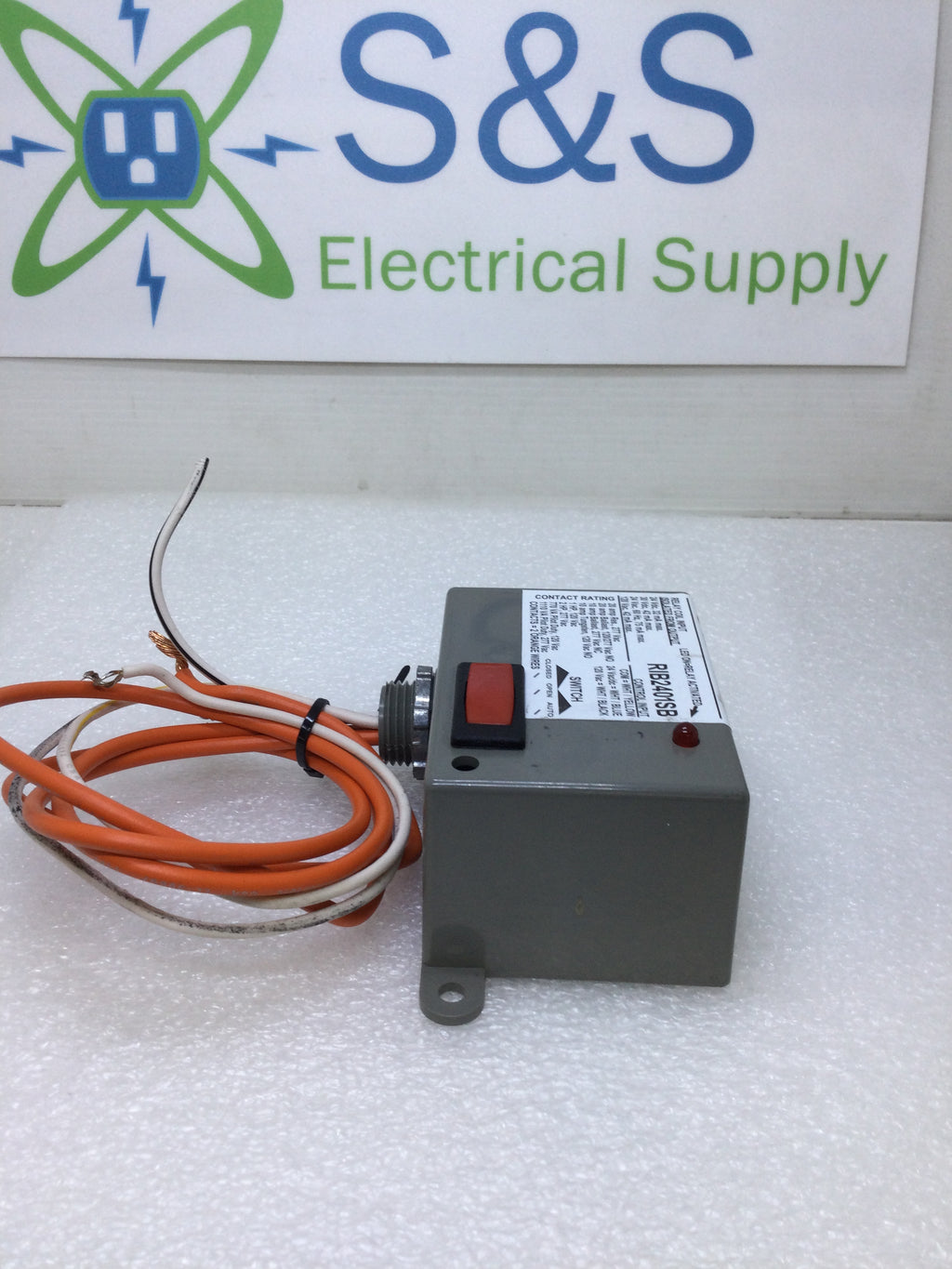

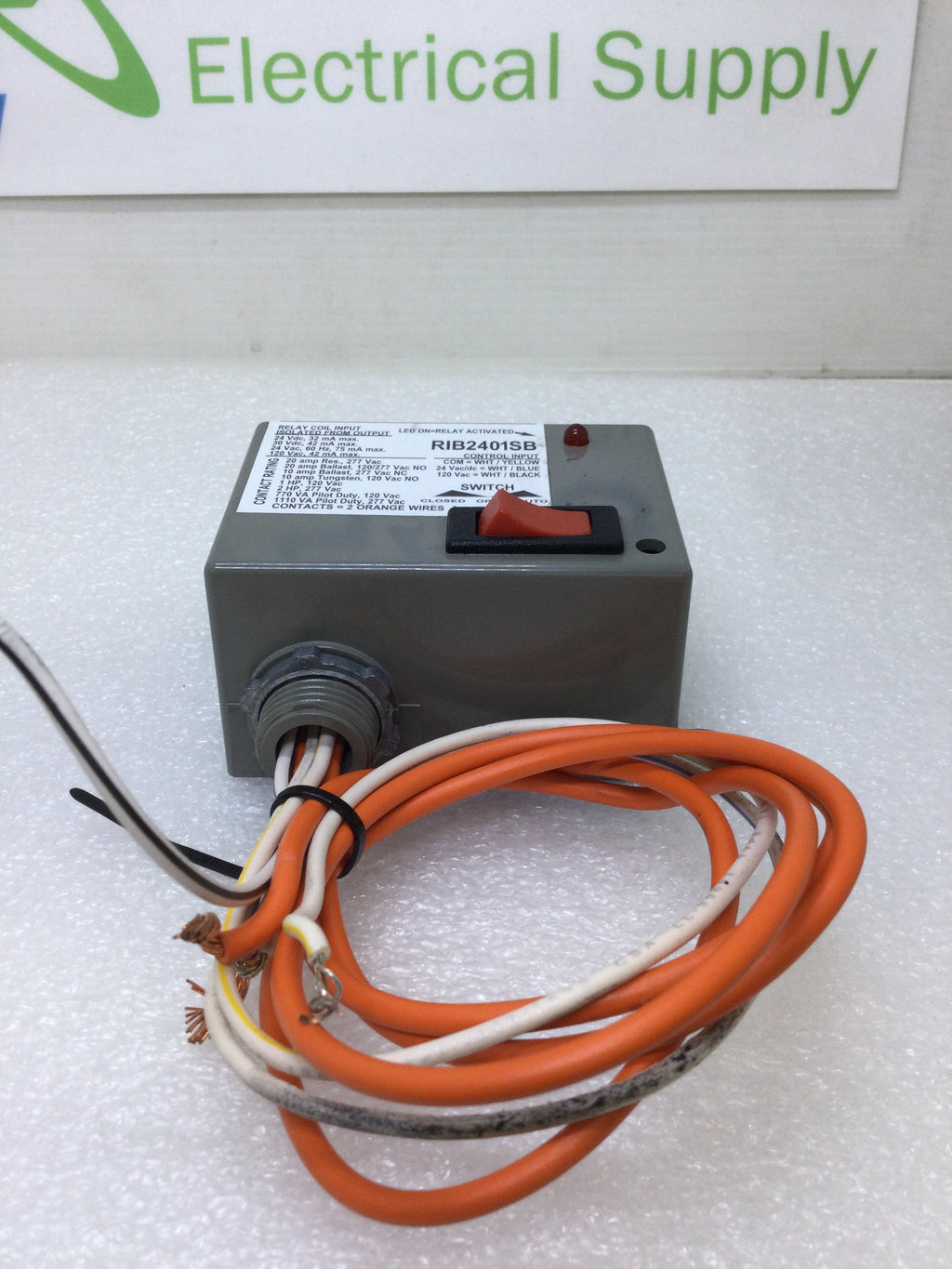

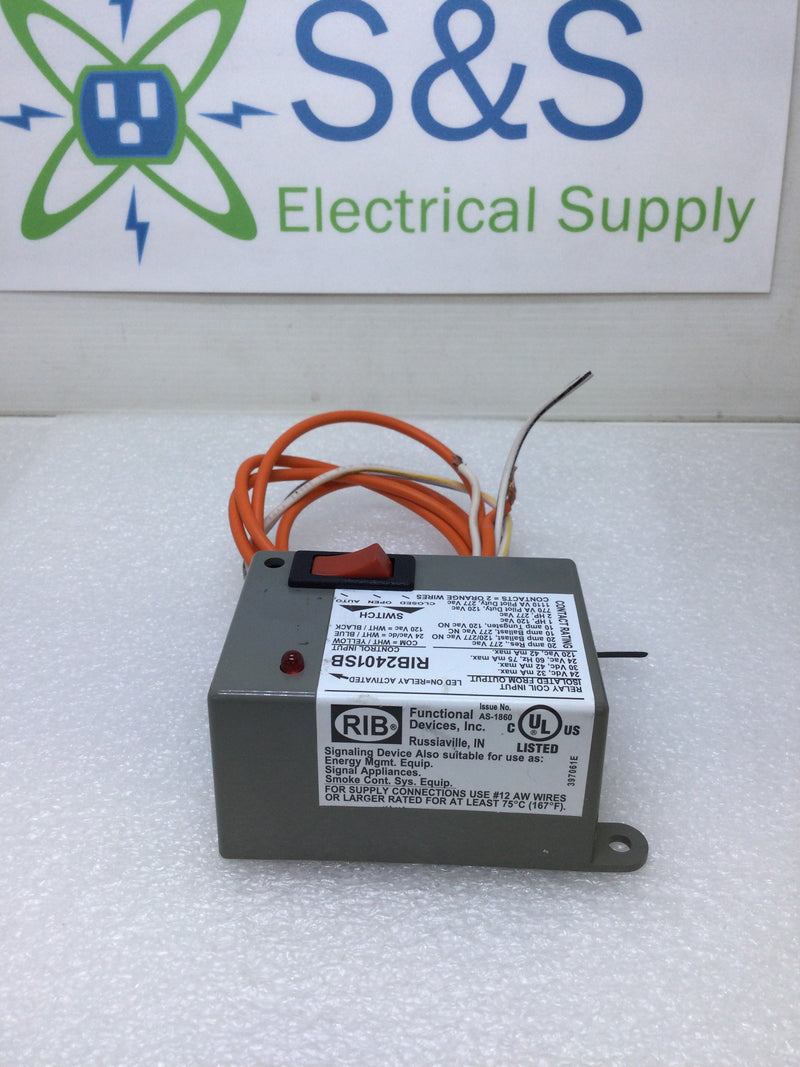

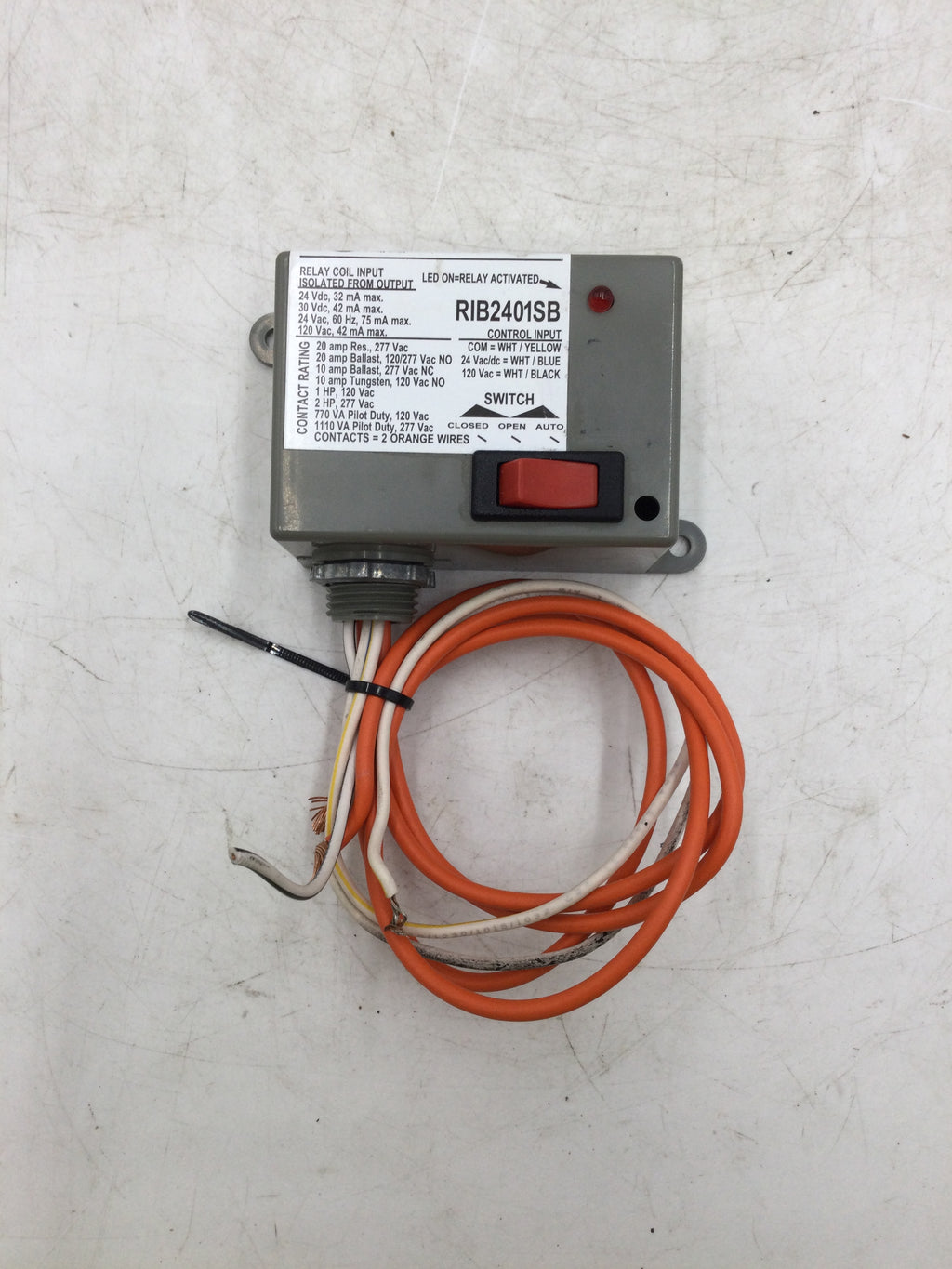

RIB2401SB is a 20 Amp Relay SPST-N/O with an override switch, suitable for 24 VAC/DC/120VAC applications. Its durable design ensures safe and reliable operation for long-term use. Key features include a silver contact, LED indicator and up to 20A switching capacity. A must-have for industrial and commercial use.
Key Specifications
Contact Type: SPST-N/O (Single Pole Single Throw, Normally Open) with a manual override switch and status indicator LED
Coil Voltage: 24 VAC, 24 VDC, or 120 VAC
Contact Rating: 20 Amp resistive/ballast (up to 2 HP)
Enclosure: NEMA 1 gray plastic, plenum-rated, with a 1/2" NPT nipple and 16-inch 600V-rated wires
Operating Temperature: -30 to 140°F (-34 to 60°C)
Approvals: UL Listed (UL916, UL864), cUL, CE, and California State Fire Marshal (CSFM)
