A dual run capacitor keeps your AC compressor and condenser fan motor running once the start cycle is over — pick the wrong MFD or voltage rating and the compressor either short-cycles or burns out early. Best overall: Amrad USA2238 (50+7.5MFD, 370/440V). Best for high-voltage or harsh-climate systems: EPCOS B32363-S5466-A080 (46uf, 580VAC). Best budget pick for small fan-motor loads: Aerovox D149076P05 (12.5uf, 370V).
- Amrad USA2238 (50+7.5MFD, 370/440V) is the best hvac run capacitor for ac compressor use on standard 3-5 ton condensers in 2026.
- EPCOS B32363-S5466-A080 handles 580VAC, making it the pick for systems that run hotter or see voltage spikes.
- Kickstart KS-1 is a hard-start kit, not a straight run capacitor — pair it with a run cap, don't replace one with it.
- Aerovox D149076P05 (12.5uf) is the budget option, but only for small fan-motor circuits, not compressor loads.
- Match MFD and voltage exactly to the compressor nameplate before buying anything on this list.
Why this matters
A dual run capacitor does two jobs from one case: it keeps the compressor's start winding energized during run mode and it phase-shifts the condenser fan motor. Get the MFD wrong by more than the rated tolerance (typically 5% to 10% on these parts) and the compressor draws more amps than it should, running hotter every cycle in 2026's summer load conditions same as any other year. S&S Electrical Supply stocks replacement capacitors sized for common residential and light commercial compressor nameplates, alongside the breakers and contactors that share the same condenser circuit.
Most failures show up as one of two symptoms: the compressor hums but won't start, or it starts fine and shuts off on high-limit within minutes. Both point at the run capacitor first, the start capacitor or contactor second.

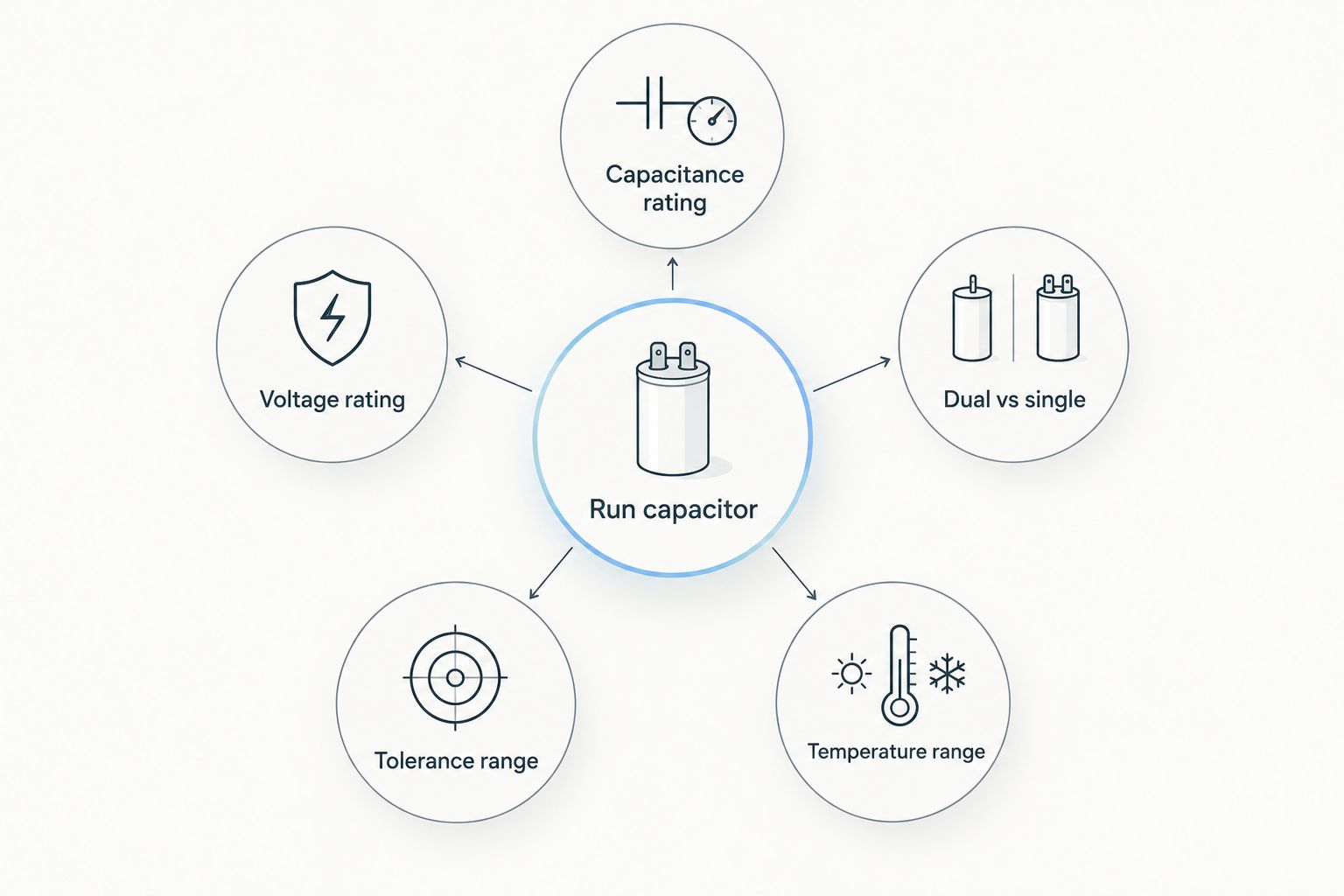

What makes the best HVAC run capacitor for an AC compressor
- Capacitance rating (MFD) matched within tolerance to the compressor and fan motor nameplate
- Voltage rating — 370V and 440V are the two standard rungs; 440V-rated parts cover 370V applications, not the reverse
- Dual vs. single design — one case wired to both compressor and fan, versus two separate capacitors
- Tolerance spec — most parts run +10%/-5% or +/-5%; tighter tolerance means steadier amp draw
- Temperature range — look for a rating that covers your climate's low and high extremes, commonly -40C to 70C on these units
- Case style and terminal layout — round vs. oval changes mounting, not performance
At a glance
| Capacitor | Best for | Standout feature | Key limitation |
|---|---|---|---|
| Amrad USA2238 | 3-5 ton compressor/fan combos | 50+7.5MFD dual rating covers most residential condensers | No single-value option if only the fan side fails |
| EPCOS B32363-S5466-A080 | High-voltage or harsh-climate systems | 580VAC rating, well above the 440V standard | Single 46uf value, no dual-run wiring |
| Trade Pro TP-CAP-45/5/440R-A | Universal multi-purpose replacement | 45+5 MFD round case fits common OEM mounts | Mid-range MFD won't cover larger 5-ton compressors |
| Kickstart KS-1 | Hard-starting compressors | 270-324 MFD start-assist kit for 3.5 to 5HP motors | Not a run capacitor — supplements one, doesn't replace it |
| Amrad USA2227 | Smaller 2-3 ton residential systems | 35+5.0MFD dual rating, 70c/-40c range | Undersized for larger commercial fan motors |
| Aerovox D149076P05 | Small fan-motor-only loads | Compact 12.5uf single-value capacitor | Not rated for compressor start/run duty |

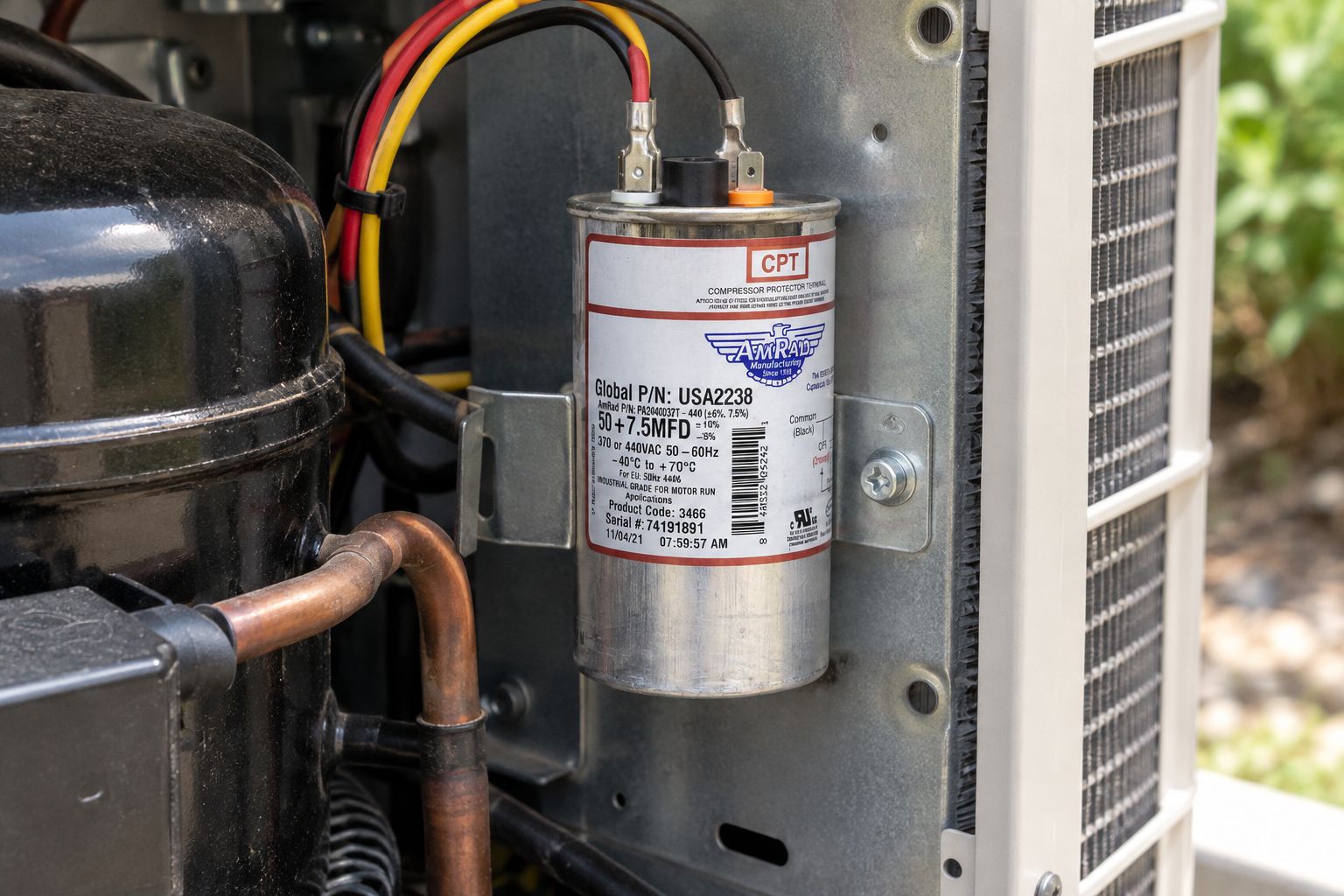

1. Amrad USA2238: best hvac run capacitor for ac compressor for 3-5 ton systems
The Amrad USA2238 is a 50+7.5MFD dual run capacitor rated for 370/440VAC at 50/60Hz, built to a 70c/-40c temperature window with +10%/-5% tolerance. It's sized for the compressor-plus-fan combination found on most 3-to-5-ton residential and light commercial condensers.
Amrad USA2238 pros:
- Dual MFD rating covers both compressor and fan from one case
- 440V ceiling gives headroom above the 370V standard
- Wide temperature range fits most US climates
Amrad USA2238 cons:
- Not a match for smaller 2-ton systems that need lower MFD
- No hard-start assist built in — pair with a separate kit if the compressor struggles to start
Amrad USA2238 verdict: Buy. It's the safest default pick for a standard-size compressor swap in 2026.
2. EPCOS B32363-S5466-A080: best hvac run capacitor for ac compressor for high-voltage systems
This EPCOS capacitor carries a 580VAC rating with a 46uf value and a -1%/+5% tolerance band — well above the 370/440V standard most residential parts use. That headroom matters on systems exposed to voltage surges or running on less stable feeds.
EPCOS B32363-S5466-A080 pros:
- 580VAC rating gives significant headroom over standard-voltage parts
- Tight -1%/+5% tolerance keeps capacitance close to nominal
EPCOS B32363-S5466-A080 cons:
- Single 46uf value, not a dual compressor/fan design
- Overkill for a straightforward 370V residential swap
EPCOS B32363-S5466-A080 verdict: Buy if the application calls for extra voltage margin; Skip for a plain like-for-like residential swap.
3. Trade Pro TP-CAP-45/5/440R-A: best hvac run capacitor for ac compressor for universal replacement
The Trade Pro combines a 45 MFD and a 5 MFD capacitor in one round case rated for 370/440VAC — a heavy-duty multi-purpose design aimed at general air conditioning replacement work.
Trade Pro TP-CAP-45/5/440R-A pros:
- Common 45+5 MFD combination fits a wide range of OEM mounting patterns
- Round case matches typical bracket clamps without adapters
Trade Pro TP-CAP-45/5/440R-A cons:
- Mid-range MFD isn't enough for larger 5-ton compressor/fan pairs
- No listed temperature range in the spec, so verify against your climate before installing
Trade Pro TP-CAP-45/5/440R-A verdict: Buy for a fast, common-fit replacement on mid-size residential units.
4. Kickstart KS-1: best hvac run capacitor for ac compressor for hard-starting compressors
The Kickstart KS-1 is a 270-324 MFD hard-start capacitor kit sized for 3.5 to 5HP motors at 50/60Hz. It's not a run capacitor — it's a start-assist add-on that goes alongside one when a compressor struggles to spin up, especially on hot days or low-voltage circuits.
Kickstart KS-1 pros:
- Solves hard-start symptoms a run capacitor alone won't fix
- Sized specifically for 3.5 to 5HP compressor motors
Kickstart KS-1 cons:
- Doesn't replace the run capacitor — it's an addition, not a substitute
- Only useful if the failure is a start-up problem, not a running one
Kickstart KS-1 verdict: Buy as a companion part when start-up is the actual complaint; Hold if the compressor runs fine once started.
5. Amrad USA2227: best hvac run capacitor for ac compressor for smaller residential systems
The Amrad USA2227 is a 35+5.0MFD dual run capacitor rated 370/440VAC at 50/60Hz with the same 70c/-40c range as the USA2238, just scaled down for smaller compressor/fan pairs common on 2-to-3-ton systems.
Amrad USA2227 pros:
- Right-sized MFD for smaller residential condensers
- Same wide temperature and voltage tolerance as the larger USA2238
Amrad USA2227 cons:
- Undersized for 4-ton and larger commercial compressors
- Easy to confuse with the USA2238 if you don't check the nameplate first
Amrad USA2227 verdict: Buy for smaller residential replacements; Skip on anything rated above 3 tons.
6. Aerovox D149076P05: best hvac run capacitor for ac compressor for budget fan-motor swaps
The Aerovox D149076P05 is a compact single-value 12.5uf capacitor rated 370V at 50/60Hz. It's built for fan-motor-only circuits, not compressor start/run duty, which makes it the budget entry on this list for the right job.
Aerovox D149076P05 pros:
- Small, low-MFD footprint fits tight fan-motor housings
- Lowest-complexity part on this list — single value, single job
Aerovox D149076P05 cons:
- Not rated for compressor loads at all
- 370V ceiling with no 440V headroom
Aerovox D149076P05 verdict: Buy for a fan-motor-only replacement; Skip entirely if the compressor is the failing part.
How we ranked these
Every capacitor on this list is scored against the same five specs from the criteria section above: capacitance match, voltage rating, dual-vs-single design, tolerance, and temperature range. The Amrad USA2238 lands first because its dual 50+7.5MFD rating and 440V ceiling cover the widest slice of residential and light commercial compressors without over- or under-sizing the load. Items further down the list either narrow to a specific voltage niche (EPCOS), a specific failure mode (Kickstart), or a smaller compressor class (Amrad USA2227, Aerovox).
Compressor electronics beyond the capacitor — inverter boards, ECM motor modules — carry their own failure signatures. A bad ECM motor module can mimic a weak run capacitor by making the fan run slow or stall, so rule the capacitor out with a meter before swapping either part. Larger 3-ton systems running variable-speed compressors often pair a run capacitor with a 3-ton HVAC inverter kit, and on 5-ton commercial rooftop units the run capacitor sits downstream of a 5-ton inverter control board that regulates compressor speed before the capacitor ever sees load.
Which HVAC run capacitor should you choose?
Check the compressor and fan nameplate MFD and voltage first — that number rules out most of this list before you even look at features. For a standard 3-to-5 ton residential or light commercial condenser, the Amrad USA2238 is the default buy in 2026. Step down to the Amrad USA2227 for smaller 2-to-3 ton systems, add the Kickstart KS-1 alongside either one if the compressor struggles on start-up, and reach for the EPCOS B32363-S5466-A080 only when the application specifically calls for 580V headroom.
FAQ
What size run capacitor does my AC compressor need?
Match the MFD and voltage printed on the failed capacitor or the compressor nameplate exactly, within the part's stated tolerance. Going higher than the rated MFD makes the motor run hotter; going lower starves it of the phase shift it needs to run smoothly.
Can I substitute a 40+5 MFD capacitor for a 35+5 MFD capacitor?
Only within the tolerance band printed on the capacitor, typically 5% to 10% on parts like the Amrad USA2227 and USA2238. A 40+5 substitution for a 35+5 spec exceeds most tolerance ranges and isn't a safe swap.
What's the difference between a run capacitor and a hard start capacitor?
A run capacitor like the Amrad USA2238 stays in the circuit the whole time the compressor operates. A hard start capacitor, like the Kickstart KS-1, only kicks in during the start cycle and is wired alongside a run capacitor, not instead of one.
How do I know if my AC compressor's run capacitor is failing?
A visibly bulging or leaking case is the clearest sign, independent of what a capacitance reading shows. A compressor that hums without starting, or starts and trips off within minutes, points at the run capacitor first.
Is a 370V and a 440V rated capacitor interchangeable?
A 440V-rated capacitor covers a 370V application, but a 370V-rated part is not safe on a circuit specified for 440V. Always match or exceed the original voltage rating, never go below it.
Can a dual run capacitor replace two separate single capacitors?
Yes, if the dual capacitor's two MFD values match what the separate compressor and fan capacitors were individually rated for. The Amrad USA2238 and USA2227 are both built this way, combining compressor and fan values into one case.
Does voltage rating matter if the MFD already matches?
Yes. MFD and voltage are independent specs — a capacitor with the right capacitance but the wrong voltage rating will still fail early under load. Check both numbers against the original part before buying.
One last thing
A run capacitor that reads within spec on a multimeter can still be the problem — a bulging case, even with a technically passing capacitance reading, means it's on its way out and should be replaced anyway. Don't wait for a full failure reading before swapping a visibly deformed capacitor in 2026 or any other year.
