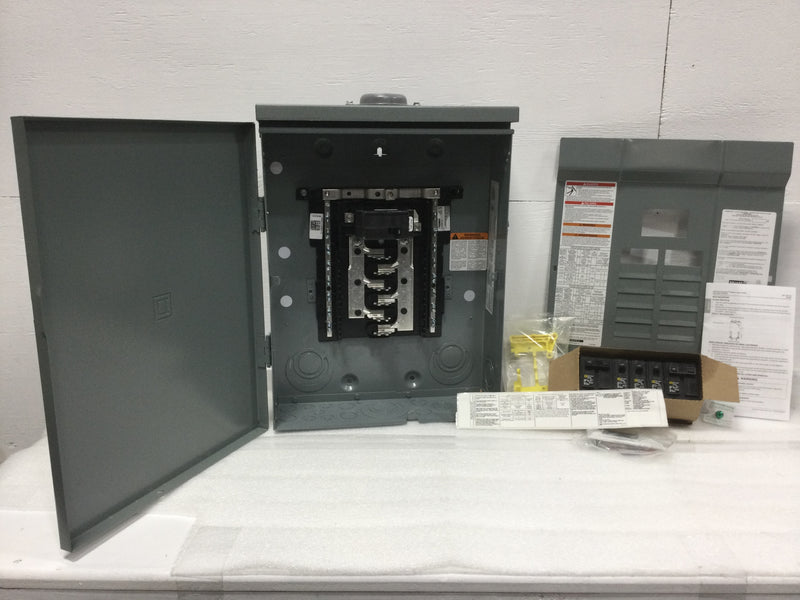

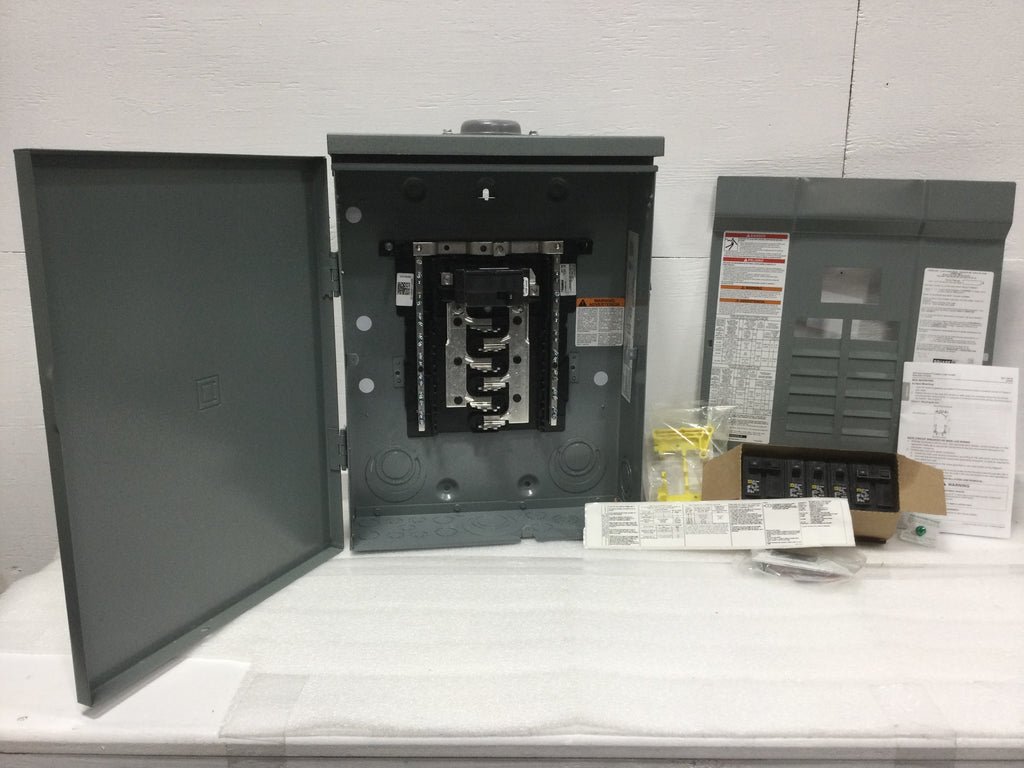

The Square D HOM1224M125PRBVP is a Homeline load center designed for residential, commercial, and industrial applications to protect electrical systems, equipment, and people. Let’s dive into the details:
- Type: Convertible Main/Main Breaker Load Center
- Rated Current: 125 A
- Number of Spaces: 12
- Maximum Number of Single Pole Circuits: 24

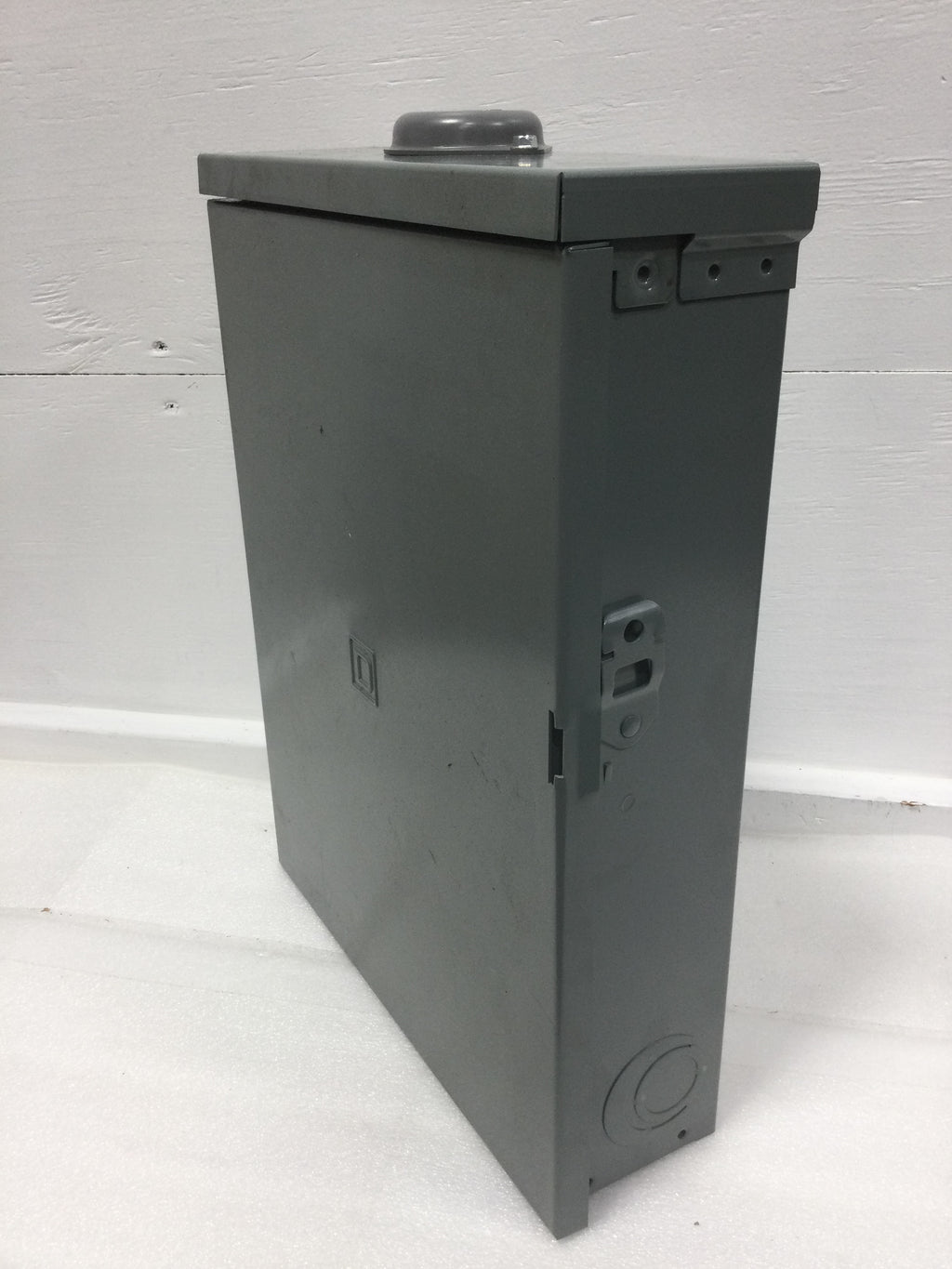

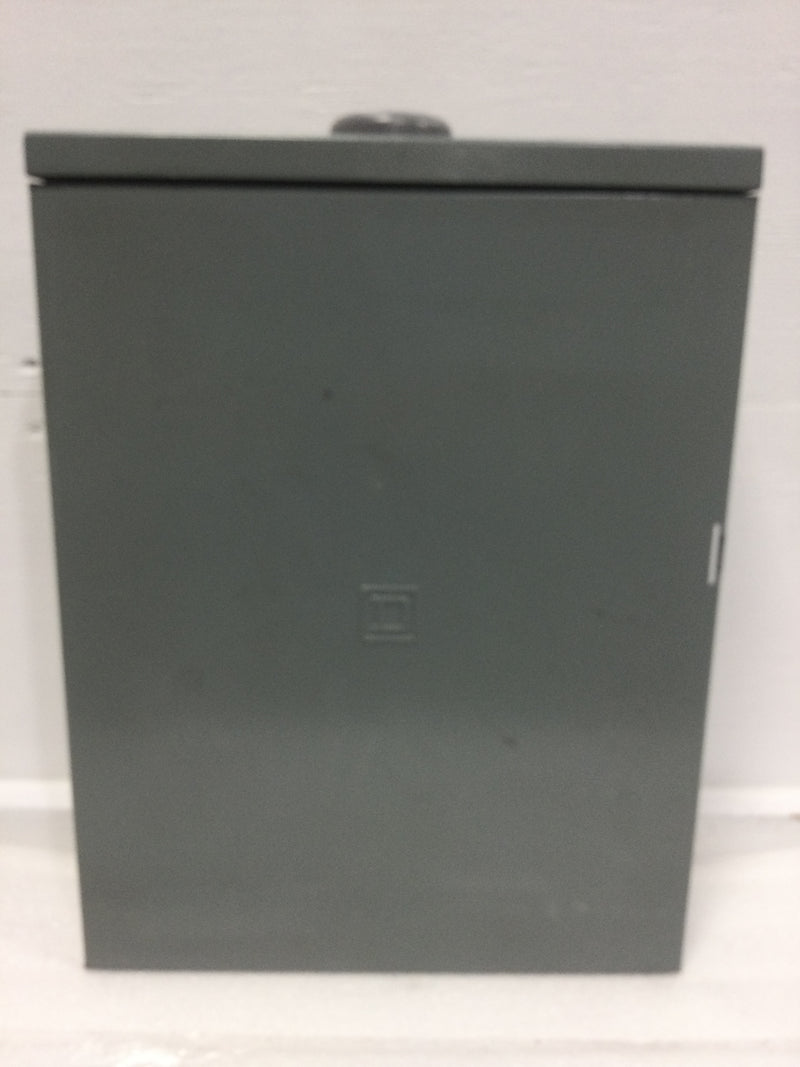

- Enclosure Rating: NEMA 3R (outdoor)
- Cover Type: Surface cover
- Electrical Connection: Box lugs provided
- Equipment:

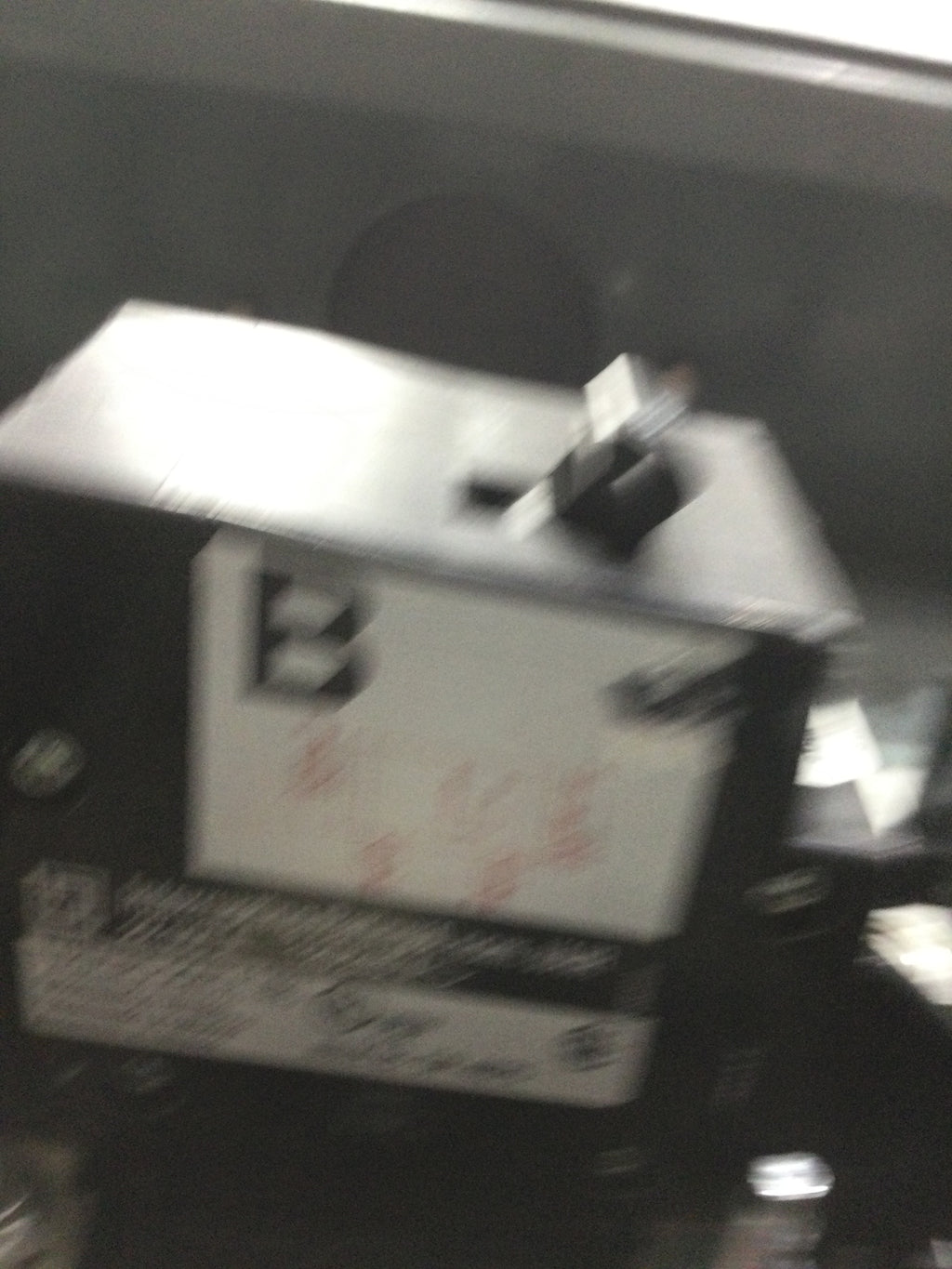

- One 2-pole 125 A 120/240 VAC main supply circuit breaker (plug-on neutral ready)
- One 2-pole 30 A 120/240 VAC circuit breaker
- One 1-pole 20 A 120/240 VAC circuit breaker
- Breaking Capacity: 22 kA
- Wire Size Range:
- Copper: 6 AWG to 1 AWG
- Aluminum: 6 AWG to 2/0 AWG
- Dimensions:

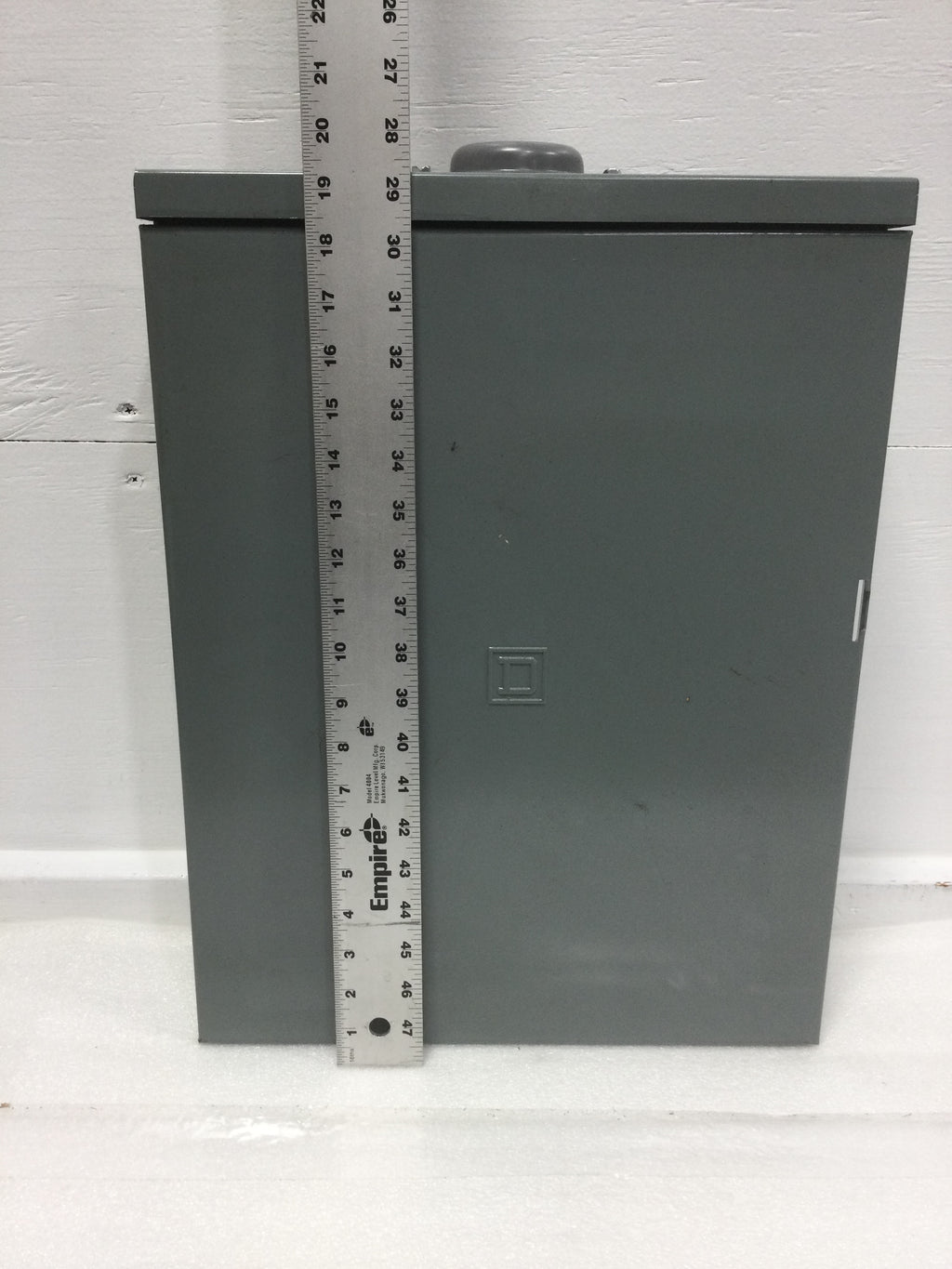

- Height: 18.92 inches

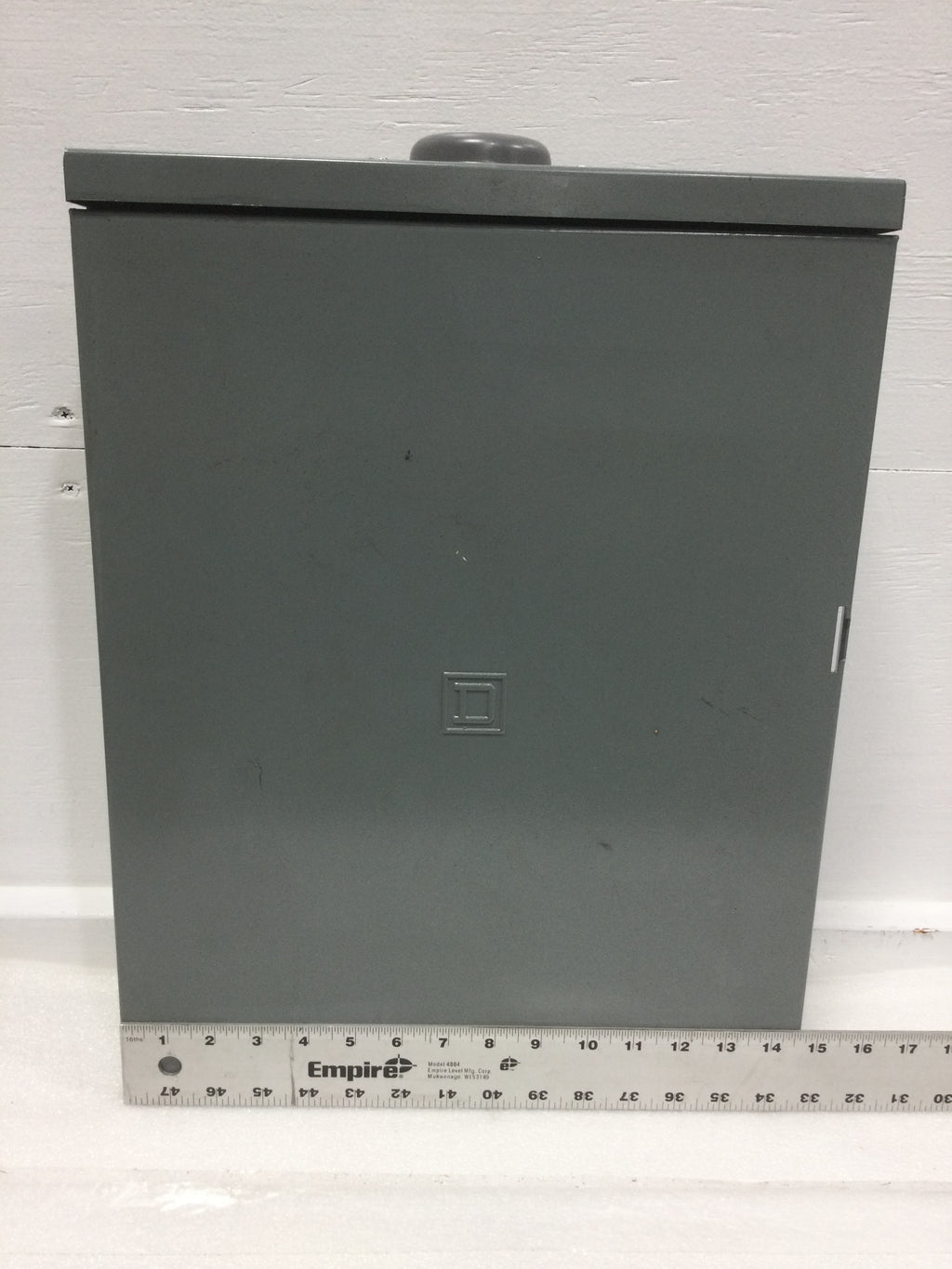

- Width: 14.75 inches
- Depth: 4.52 inches

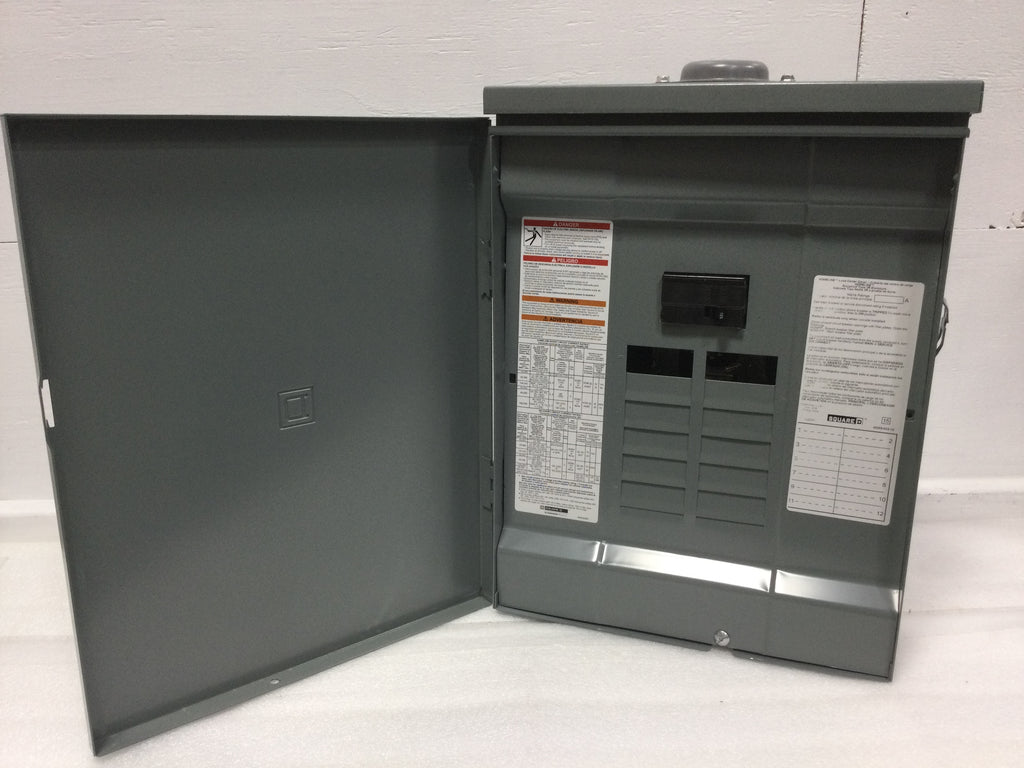

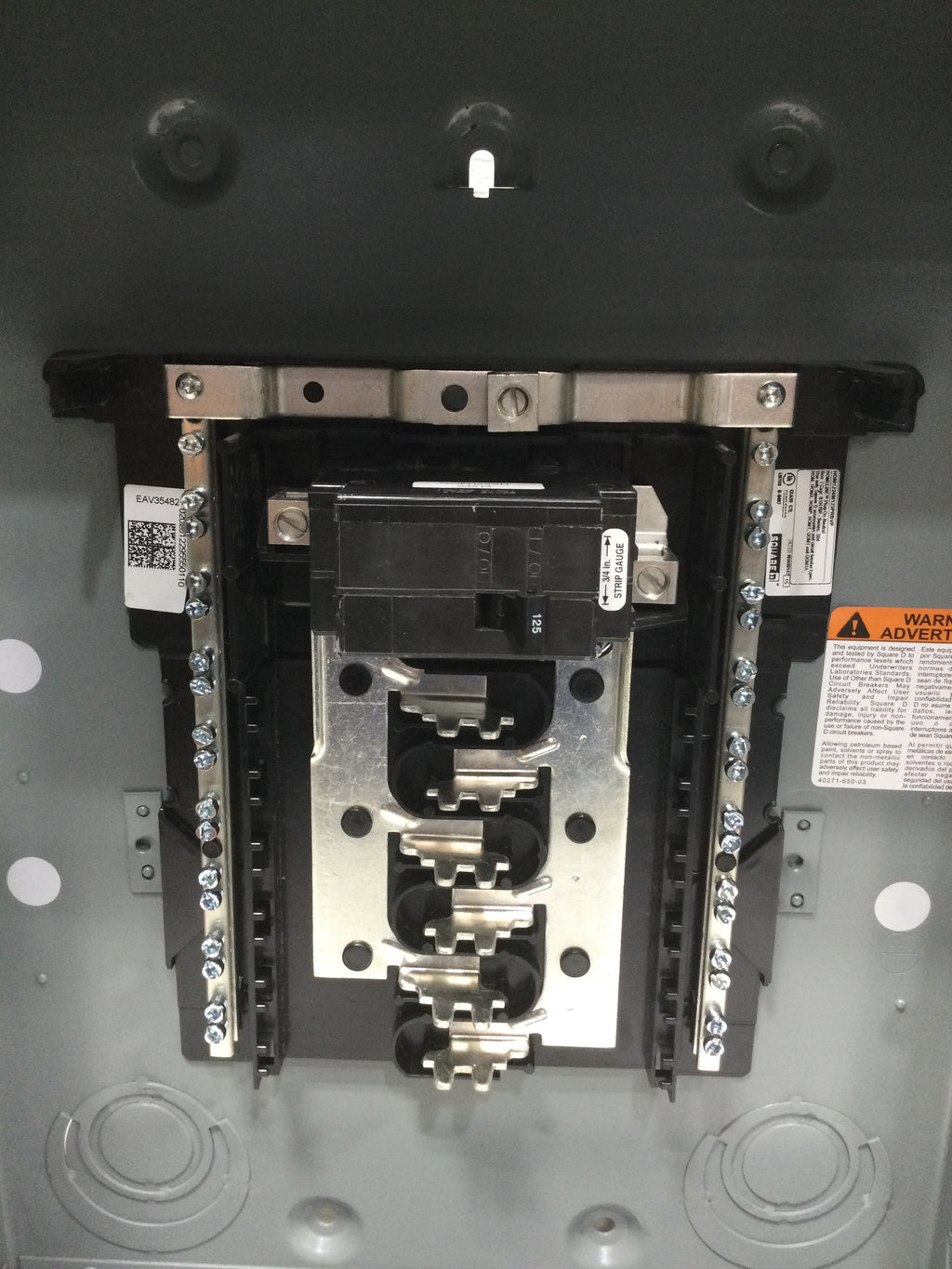

The HOM1224M125PRBVP load center provides 12 spaces within a NEMA 3R rainproof enclosure. Its fully distributed neutral bar allows for Homeline plug-on neutral circuit breakers in any space. Backed-out terminal screws make wiring and installation easy. This system is suitable for both aluminum and copper wiring, ensuring efficient power transfer.
Please note that this load center is value-packed and offers reliable circuit protection. If you have any further questions or need additional information, feel free to reach out to our knowledgeable sales team.
