Description
Eaton BRP20B100V25 100 Amps 120/240V 20 Space 20 Circuits Combination Mount Main Breaker Load Center Value Pack
Panel Cover with Dead Front (24" x 15 3/8")
Quick, easy and clean describe the new plug-on neutral design attributes offered by Eaton. Time saving features offer a quick installation equating to less time on the job. Designed to maximize installation efficiency and to provide additional convenience allowing for an easy installation. New features that help ensure an aesthetically clean and professional installation.

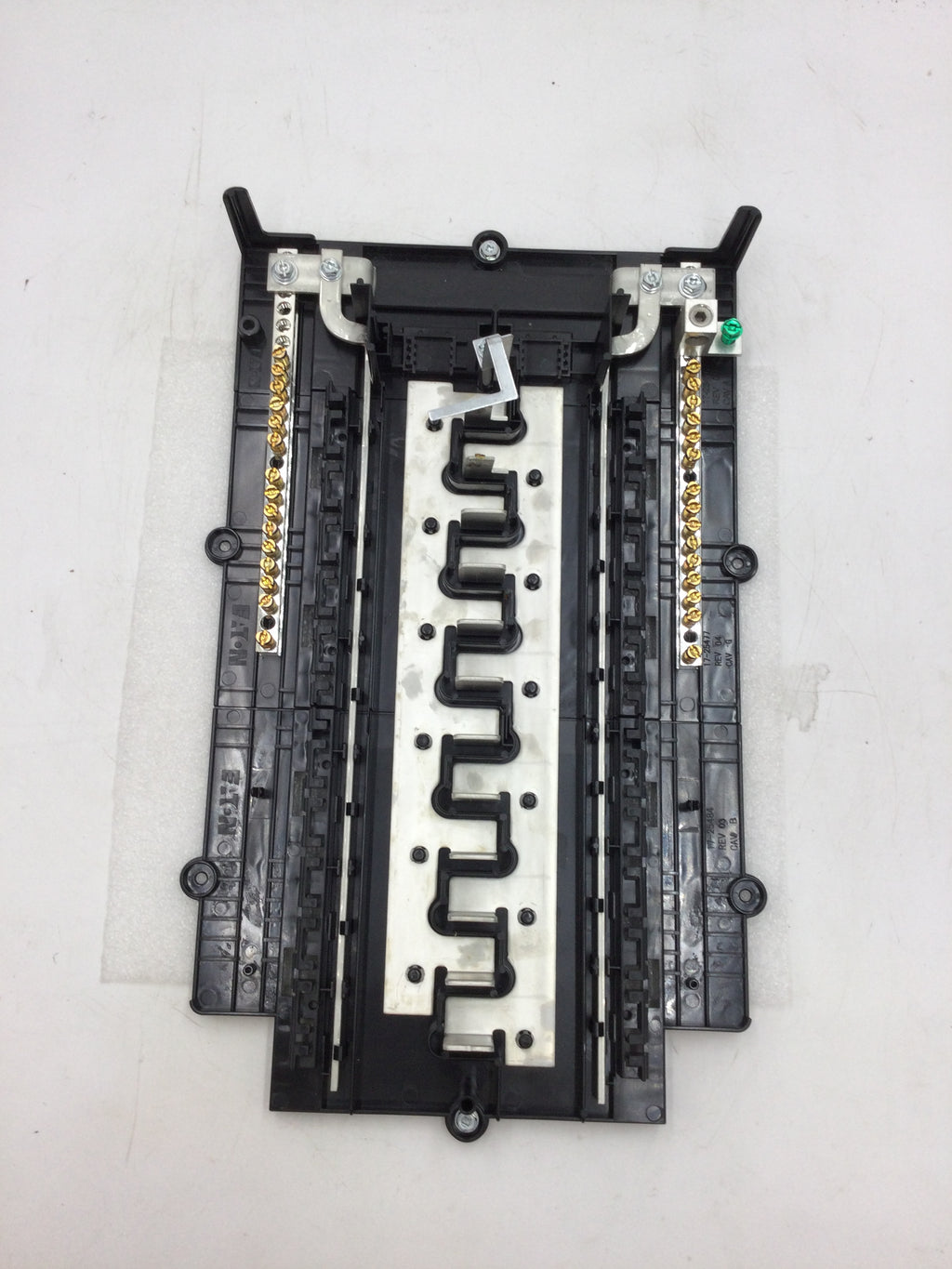

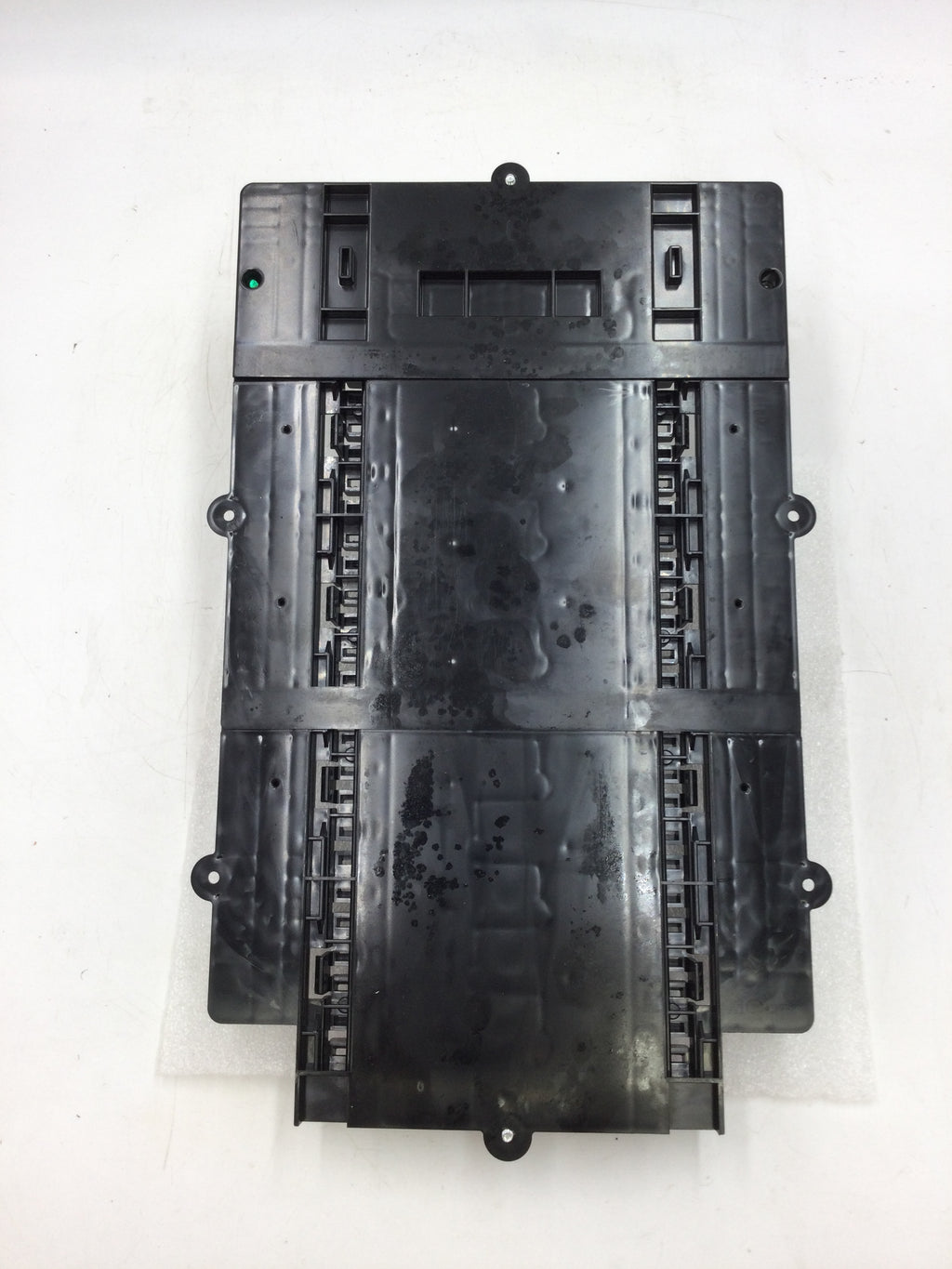

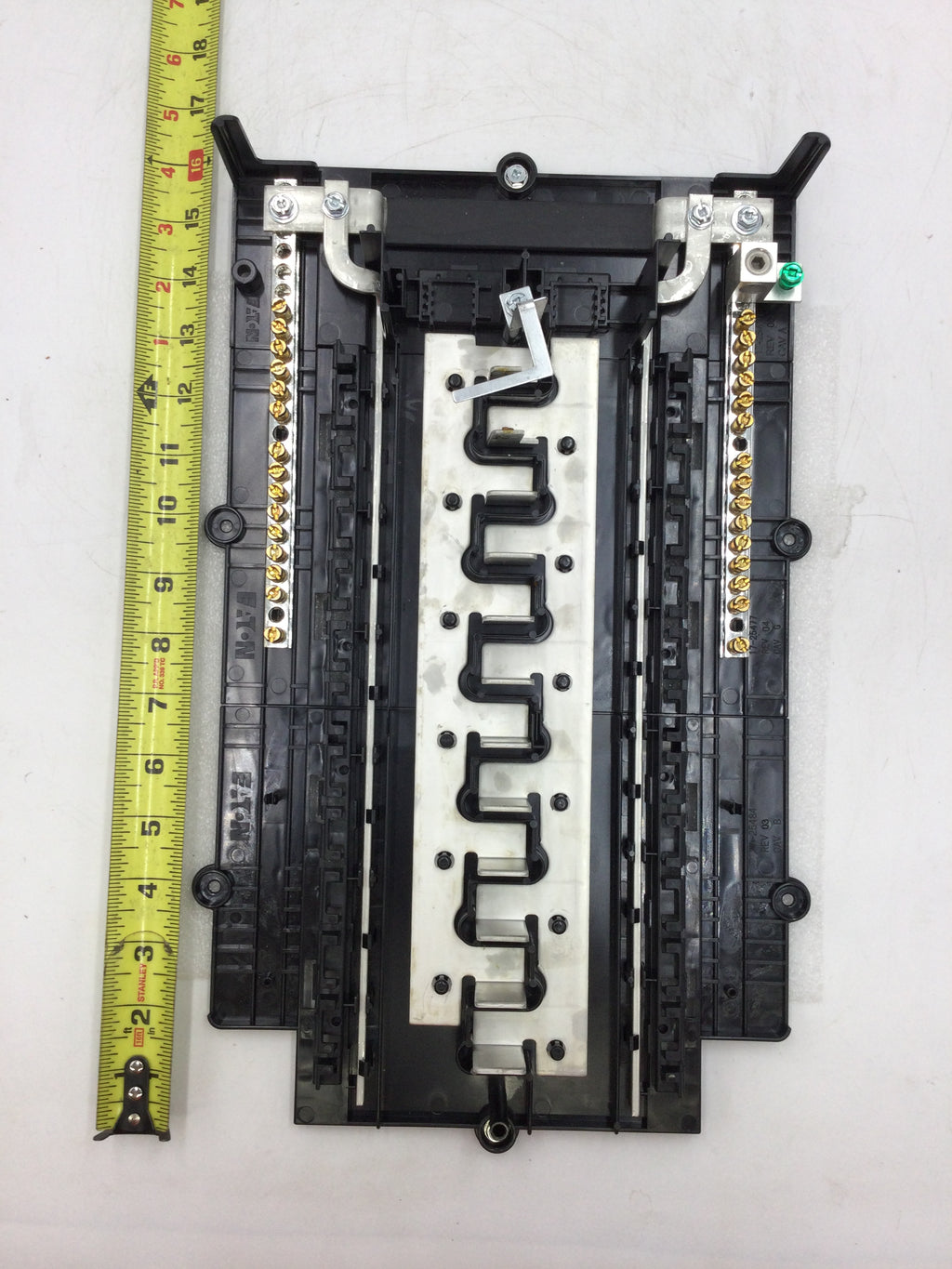

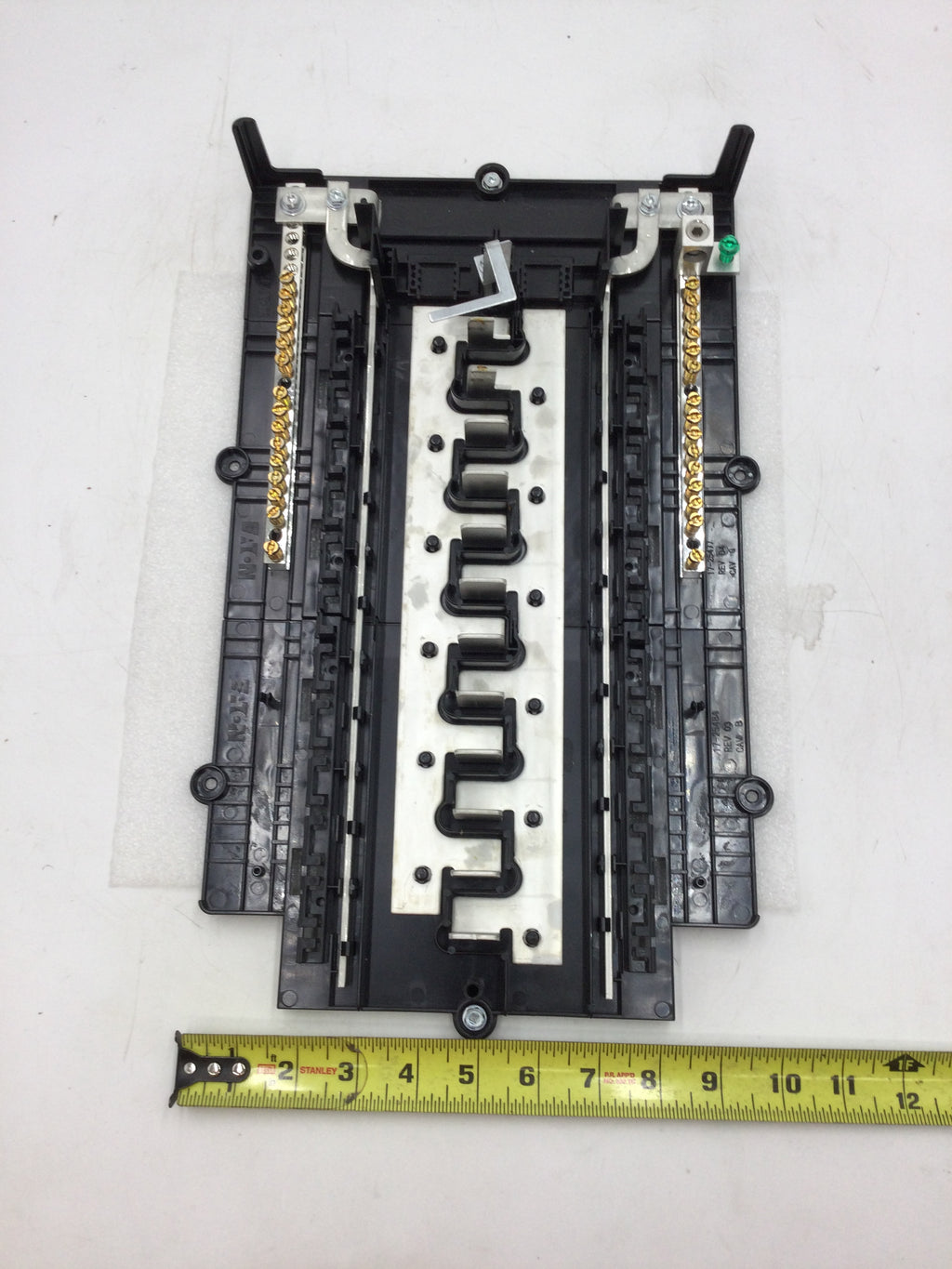

See Pictures for Variants Available
- BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings
- Dedicated neutral bus for breaker connection
- In-board neutral bar increases gutter space to allow for professional installation of conductors
- Backed out neutral screws allows for quick connection of neutral and ground conductors
- Optimized knockout locations for additional access and easier to remove
- Self-leveling tabs allow for quick drywall offset and helps simplify installation
- Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications
- Rigid cover spine provides strength when twist outs are removed allowing for easier removal
- Amperage rating: 100 Amp
- Cover: cover included
- Enclosure: NEMA 1
- Interrupt rating: 10 kAIC
- Wire size: #4-1/0 AWG Cu/Al
- Used with: type BR 1 in. breakers
- Value Pack Includes 2 - BR 20 Amp Breakers and 1 - BR 30 Amp Breaker
- Main Breaker Rated 10kAIC Included
| Load center depth (in.) | 24.75 | Load center height (in.) | 4.25 |
|---|---|---|---|
| Load center width (in.) | 16 |
Details
| Electrical Product Type | Load Center and Breaker Kit | Indoor/Outdoor | Indoor |
|---|---|---|---|
| Load Center Mounting Type | Flush | Load Center Type | Main Breaker |
| Maximum Amperage (amps) | 100 | Mounting Type | Bolt On |
| NEMA Configuration | NEMA 1 | Number of Circuits | 40 |
| Number of Spaces | 20 | Phase Type | 1 Phase |
| Product Weight (lb.) | 26.5 | ||
| Voltage (volts) | 120/240 |
