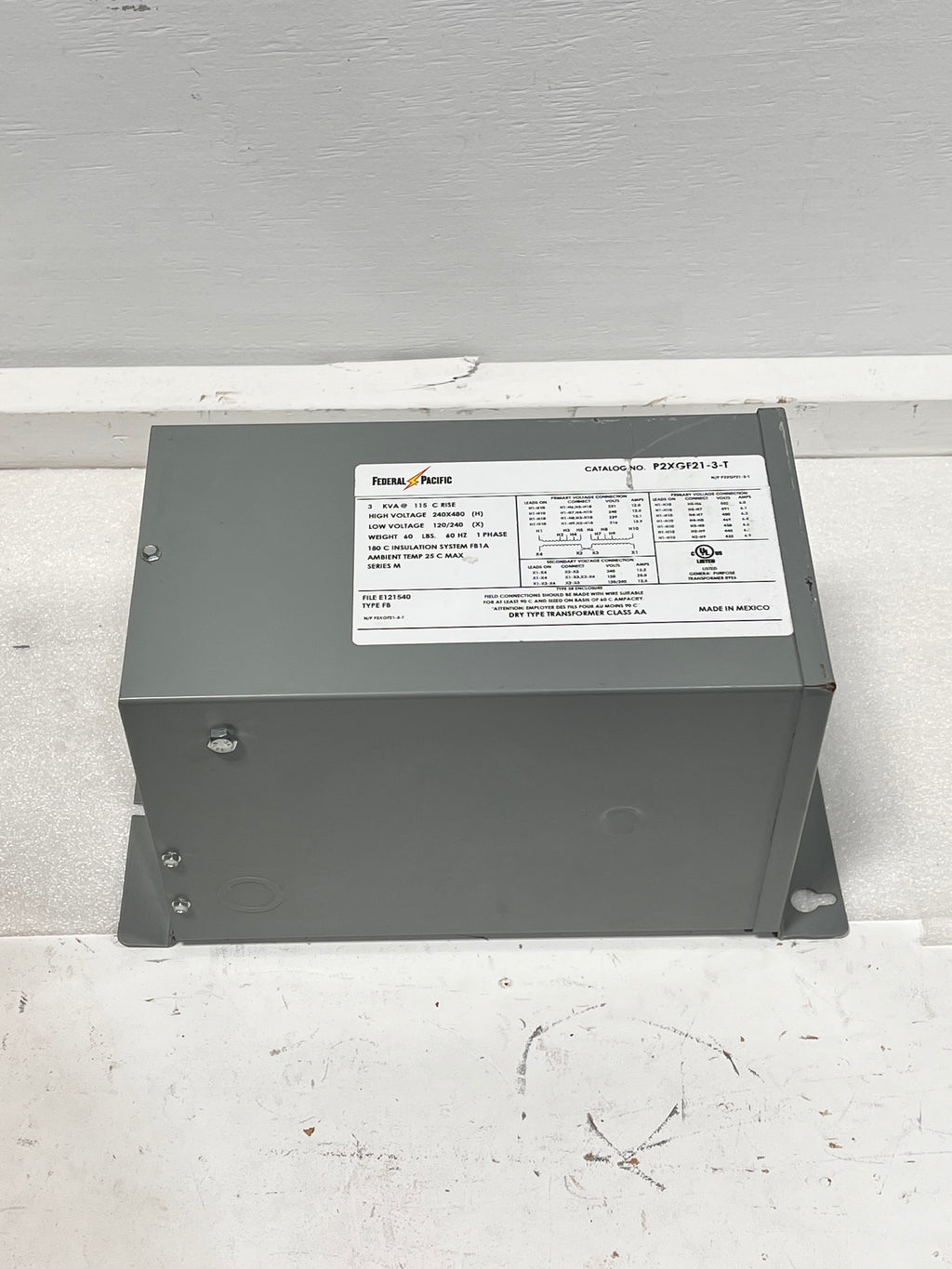

FPE P2XGF21-3-T 3 KVA Dry type Transformer

FPE Federal PacificSKU: 0515202413P

Style: New
Price:
Sale price$325.95

Shipping calculated at checkout

Stock:
Sold out

Description

The FPE P2XGF21-3-T is a single-phase dry-type transformer manufactured by Federal Pacific. Here are some key specifications for this transformer:

  • KVA: 3
  • Primary Voltage: 240V/480V
  • Secondary Voltage: 120V/240V
  • Conductor: Copper
  • Temperature Rise: 115°C
  • Phase: 1
  • Frequency: 60 Hz
  • Taps: +2/-4 at 2.5%
  • Insulation Class: 180°C
  • Wall Bracket: Built-In
  • Weight: 60 lbs
  • Sound Level: 40 dB @ 240V, 12.5 load
  • Notes: All units are UL listed and designed in accordance with applicable NEMA, ANSI, and IEEE standards. The transformers are dry-type, non-ventilated, and housed in a NEMA 3R enclosure. The wall mounting bracket is integrated into the enclosure, and the paint color is ANS.

P2XGF21-3-T.PDF (fptonline.com)
