Description

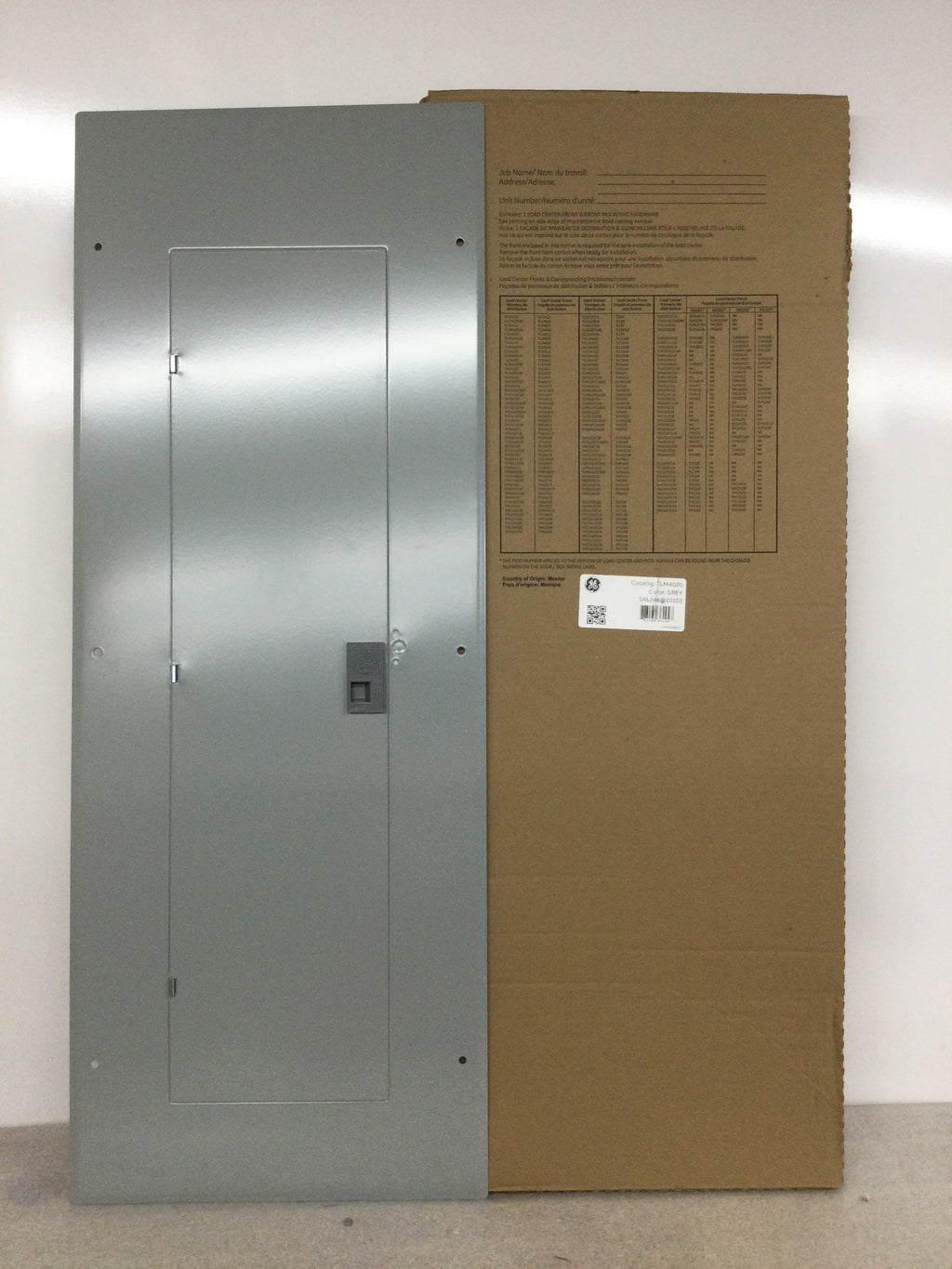

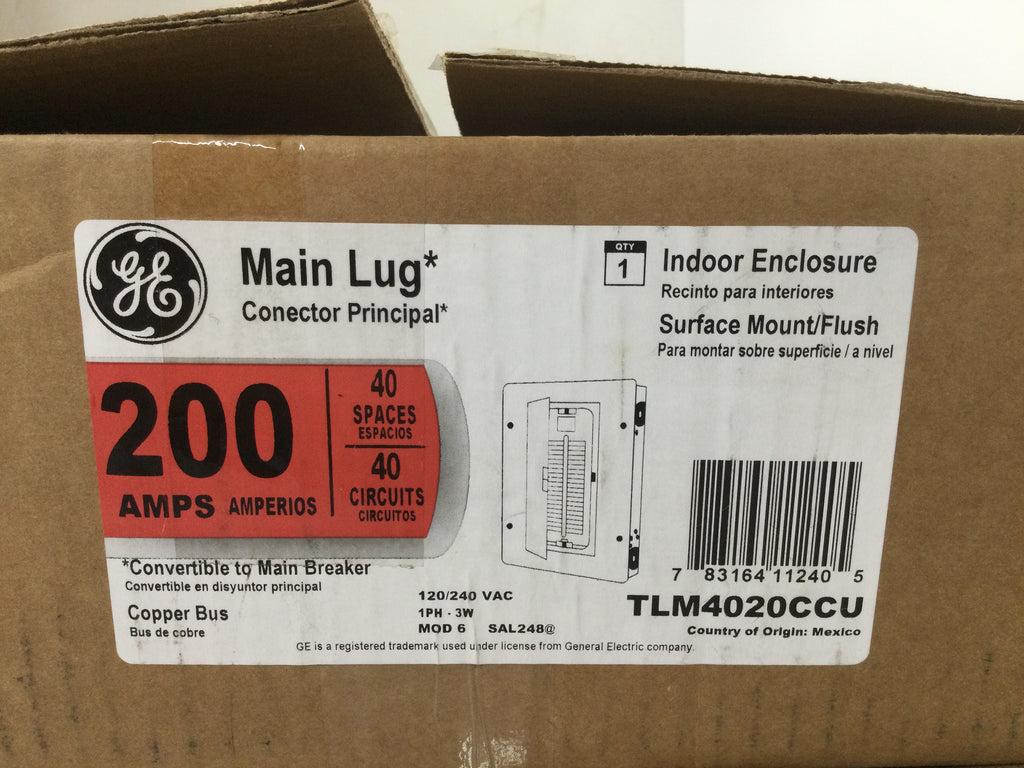

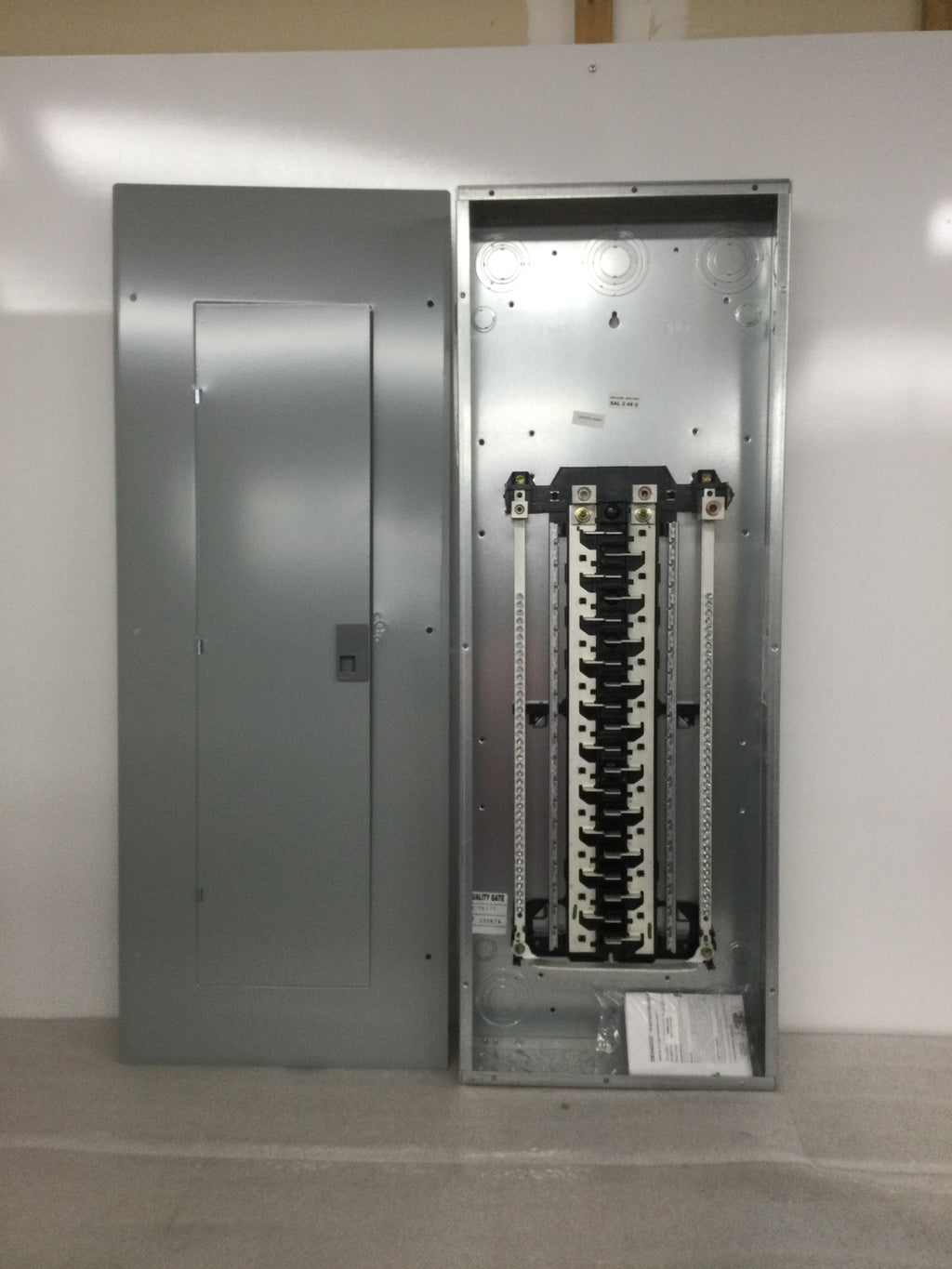

GE TLM4020CCU 200 Amp Main lug Load Center 1 Phase 3 Wire 120/240V Copper Buss

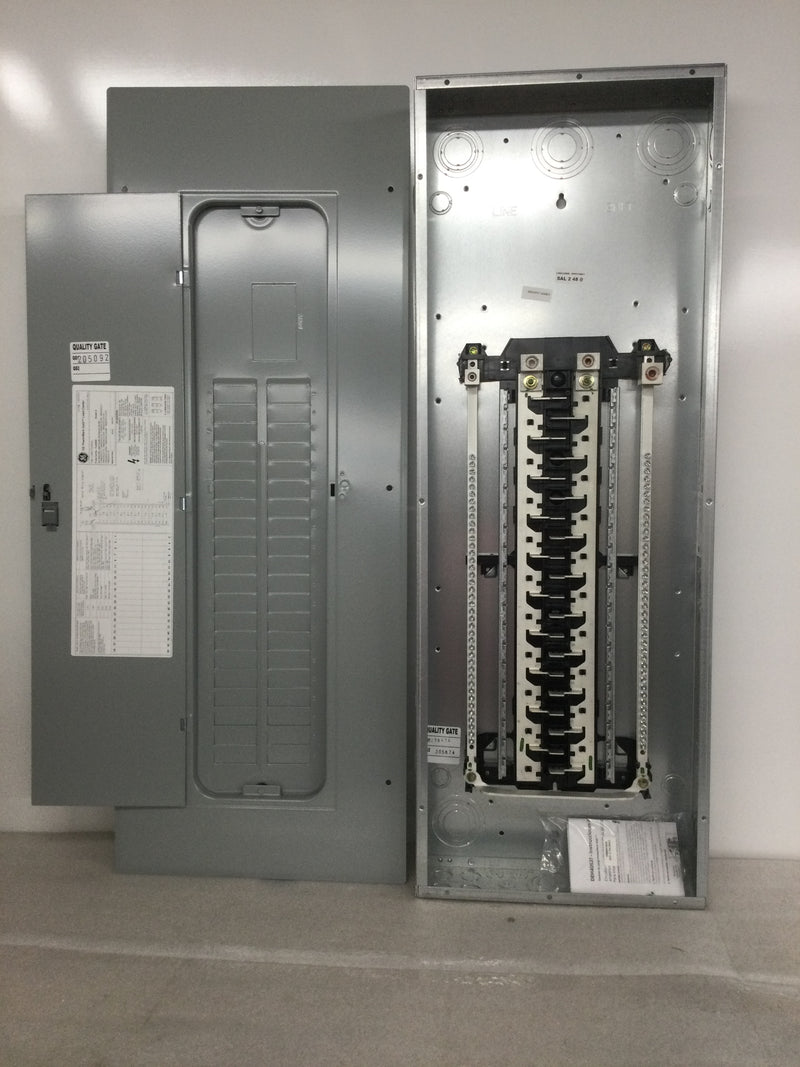

The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
- Use as a main lug load center or convert to a main breaker

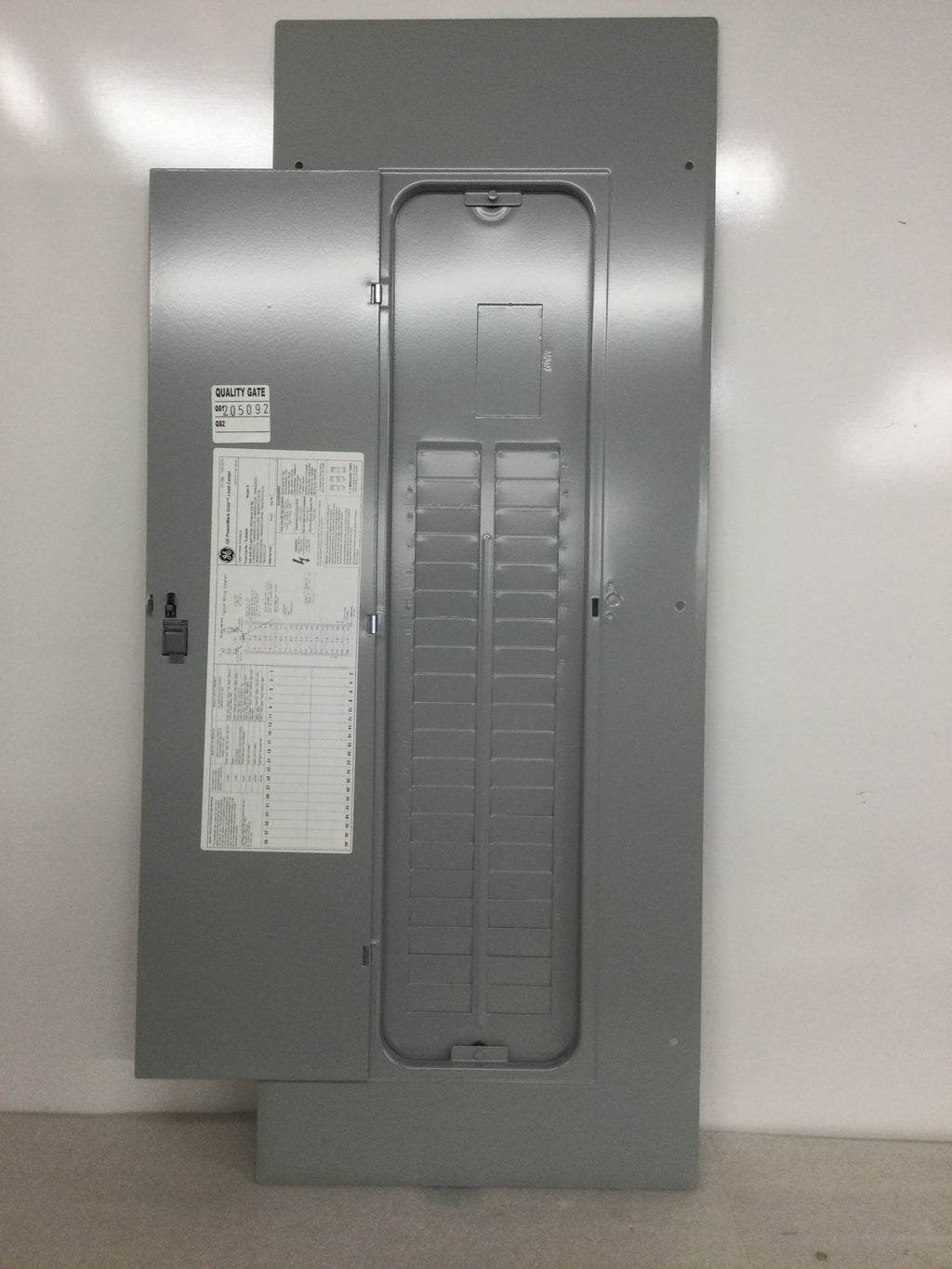

- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper buss for increased conduction
- Full-length neutral bars for faster and easier wiring
- 100% split neutral holes on each side are rated for #14-4 wire
- Top or bottom feed
- 240 VAC and 22,000 AIC rating

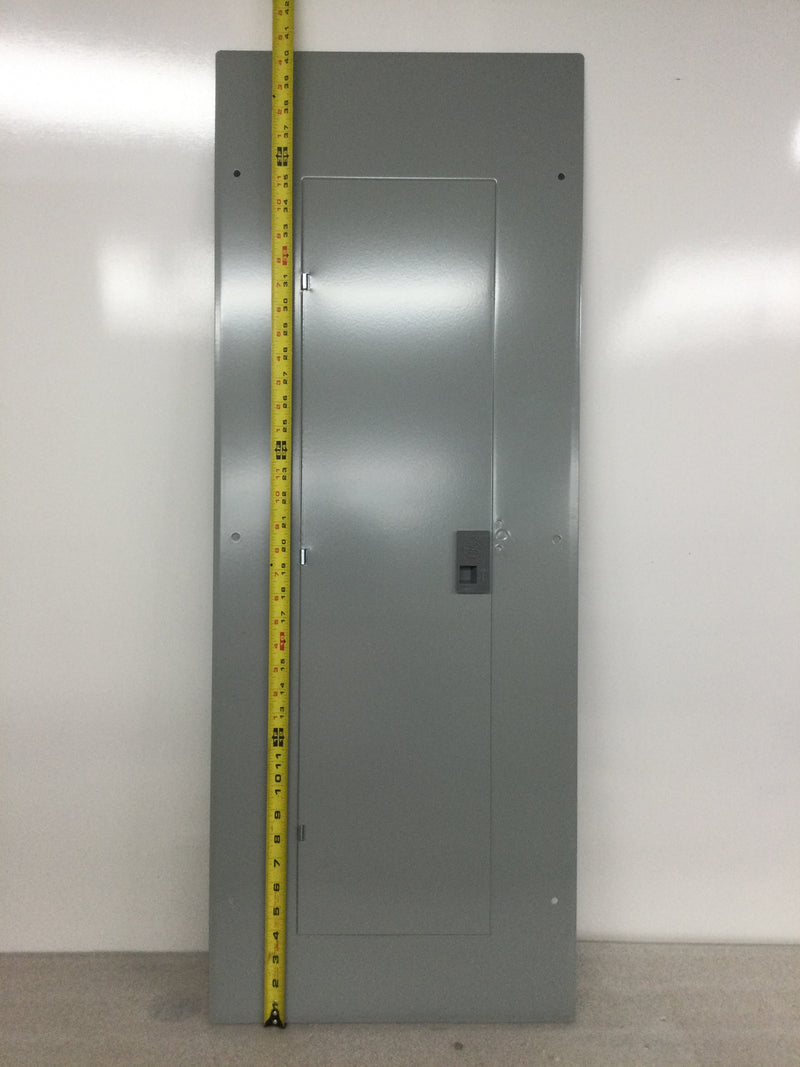

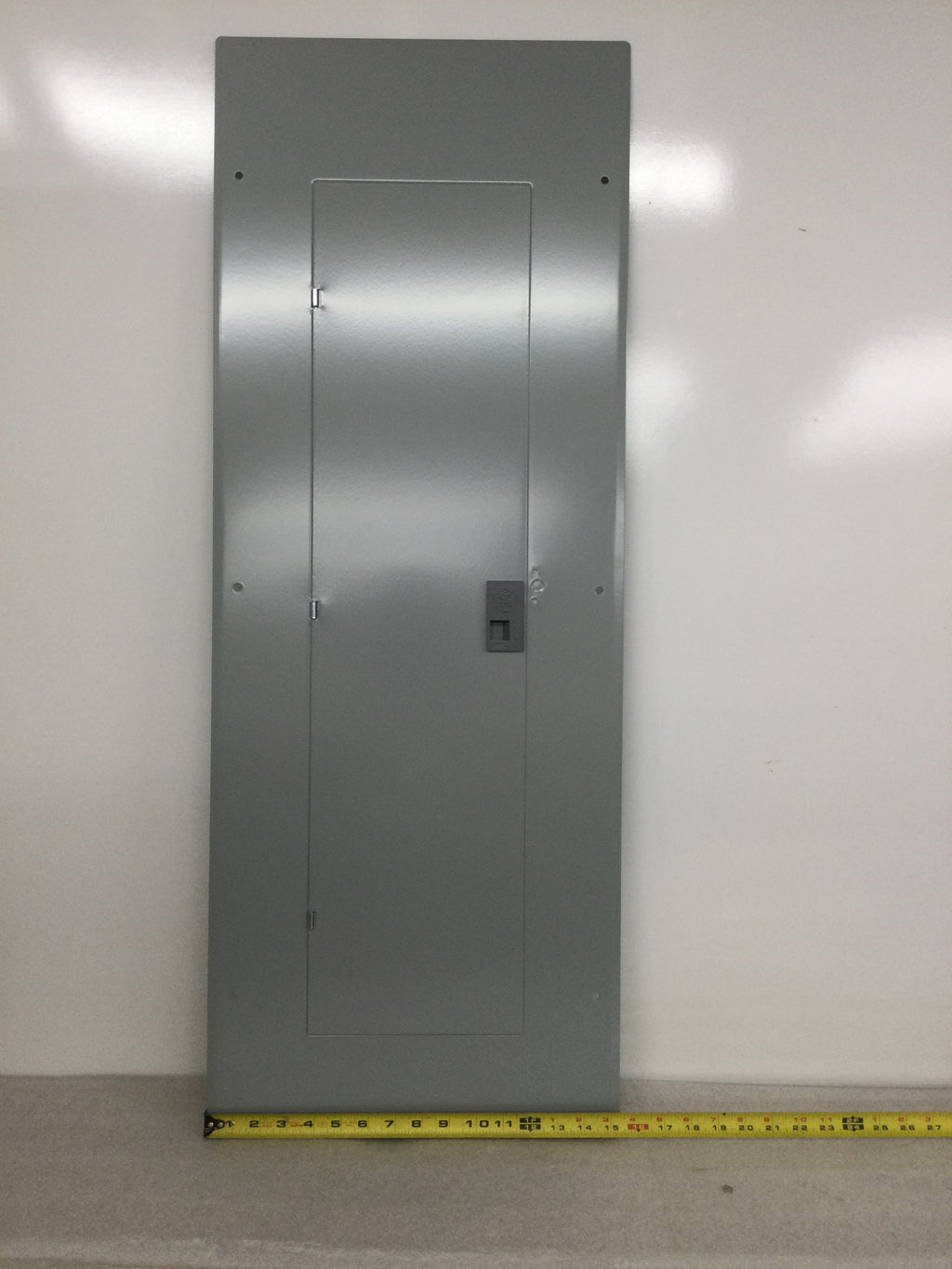

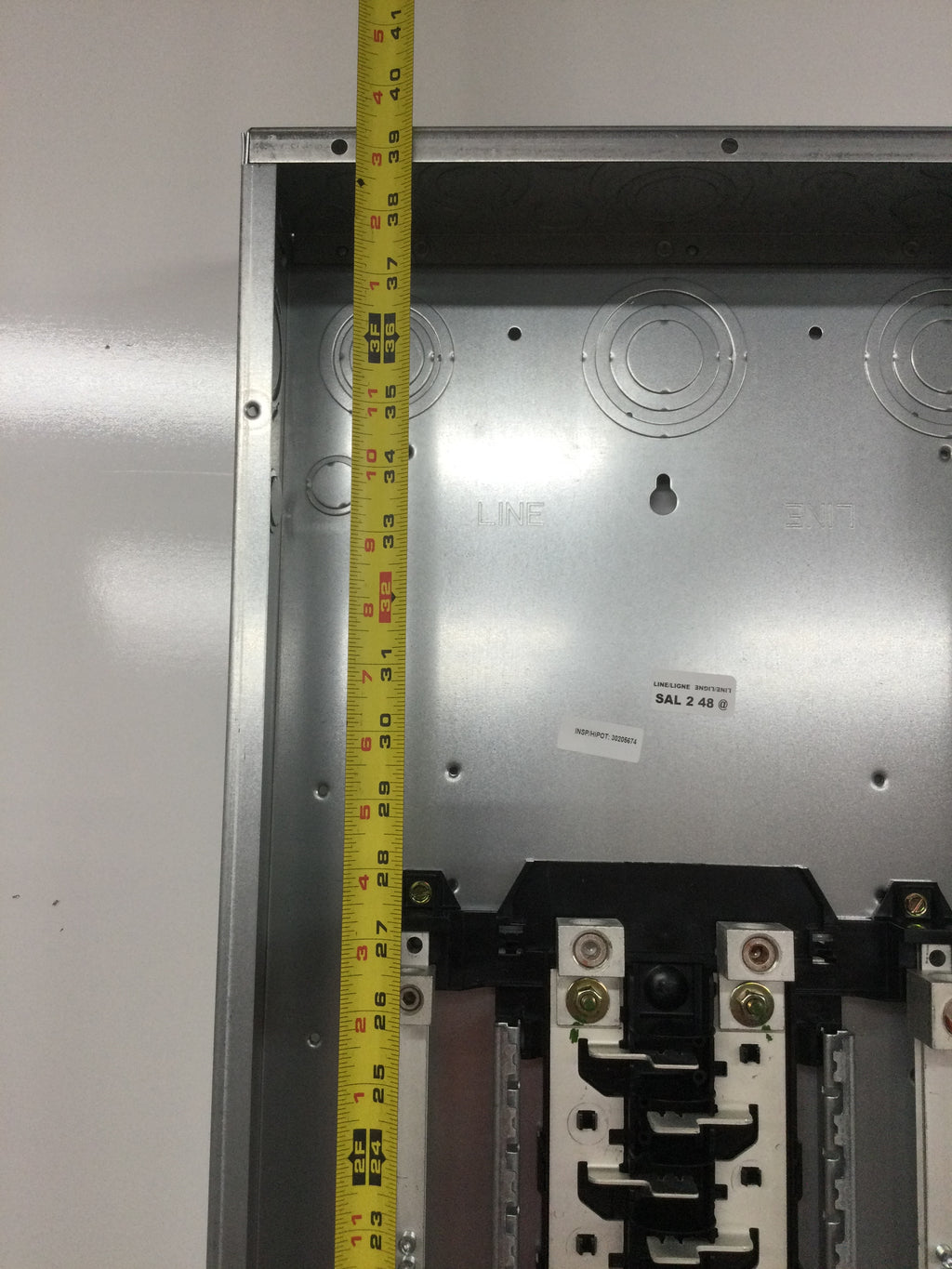

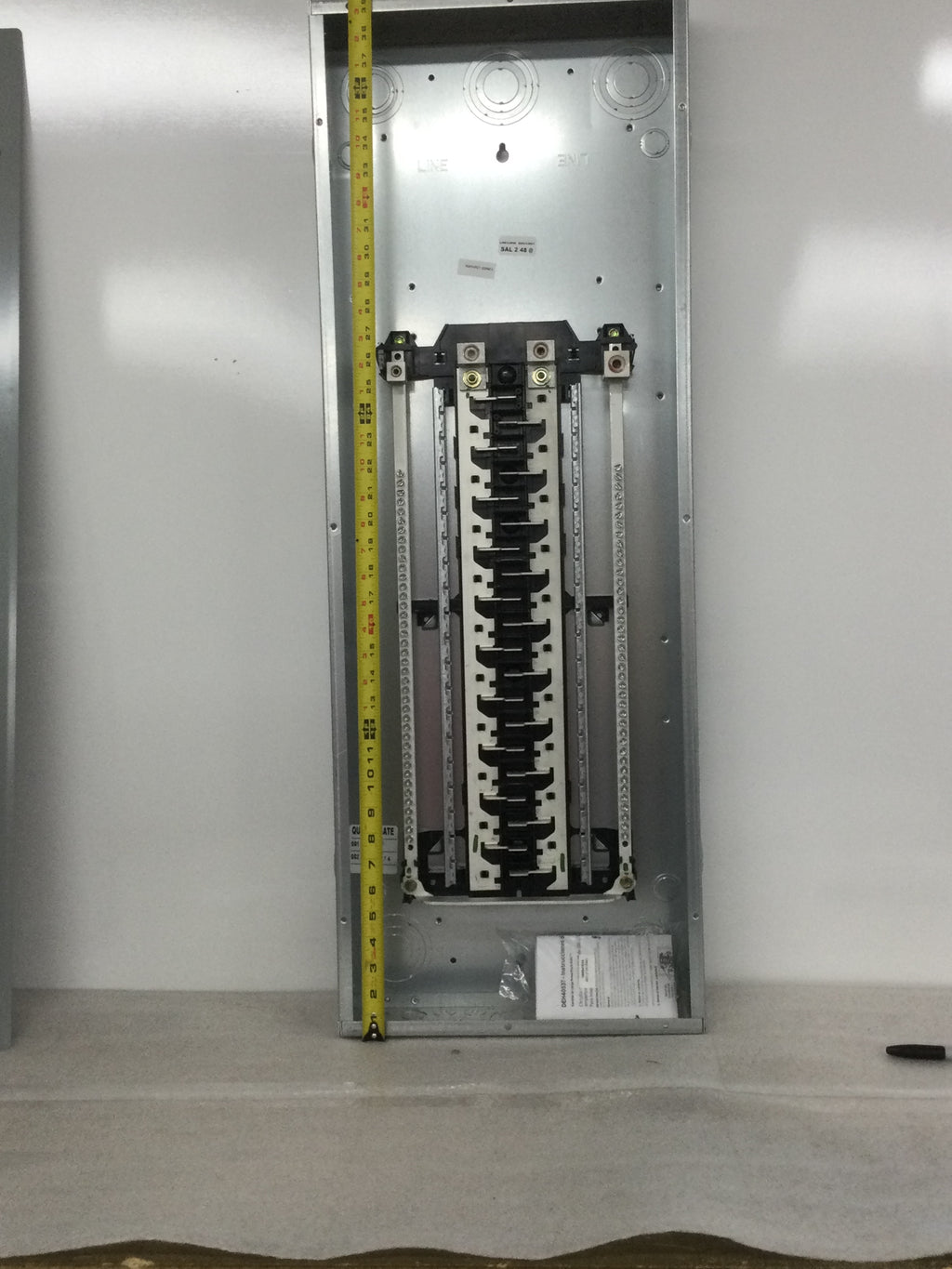

Dimensions
| Load center depth (in.) | 3.75 | Load center height (in.) | 39.31 |
|---|---|---|---|
| Load center width (in.) | 14.38 |
Details
| Electrical Product Type | Main Lug/ Main Lug Kit | Indoor/Outdoor | Indoor |
|---|---|---|---|
| Load Center Mounting Type | Surface | Load Center Type | Main Lug |
| Maximum Amperage (amps) | 200 | Mounting Type | Plug-On |
| NEMA Configuration | NEMA 1 | Number of Circuits | 40 |
| Number of Spaces | 40 | Phase Type | 1 Phase |
| Product Weight (lb.) | 37 | ||
| 240 |
