Description

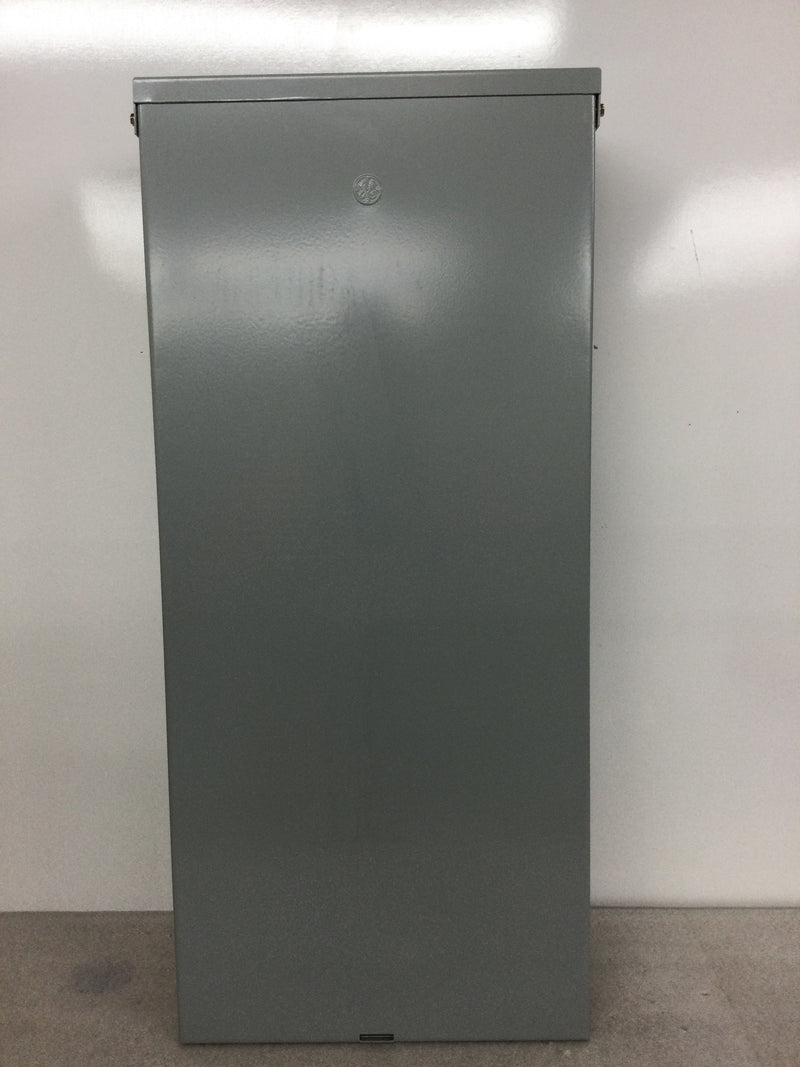

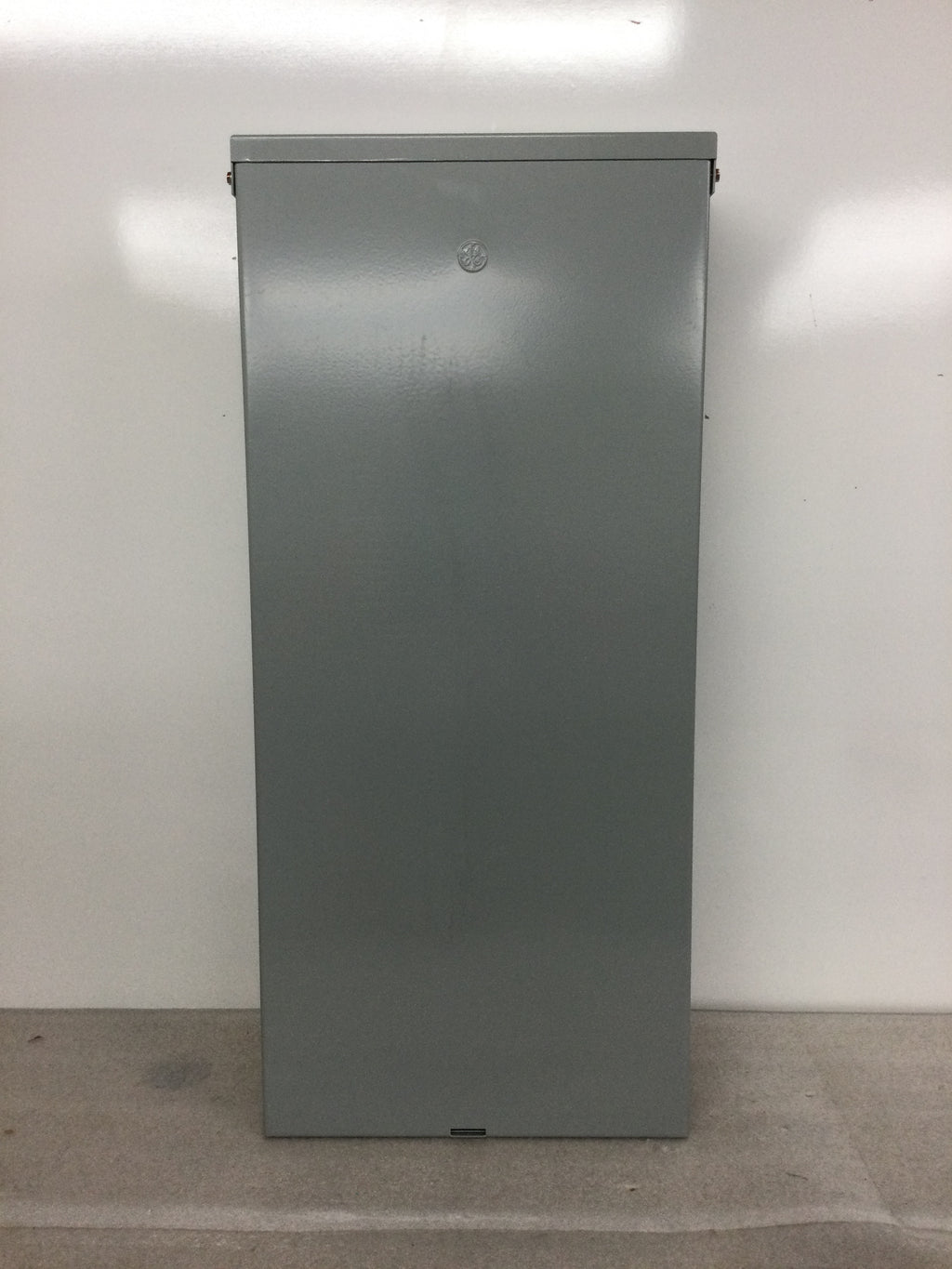

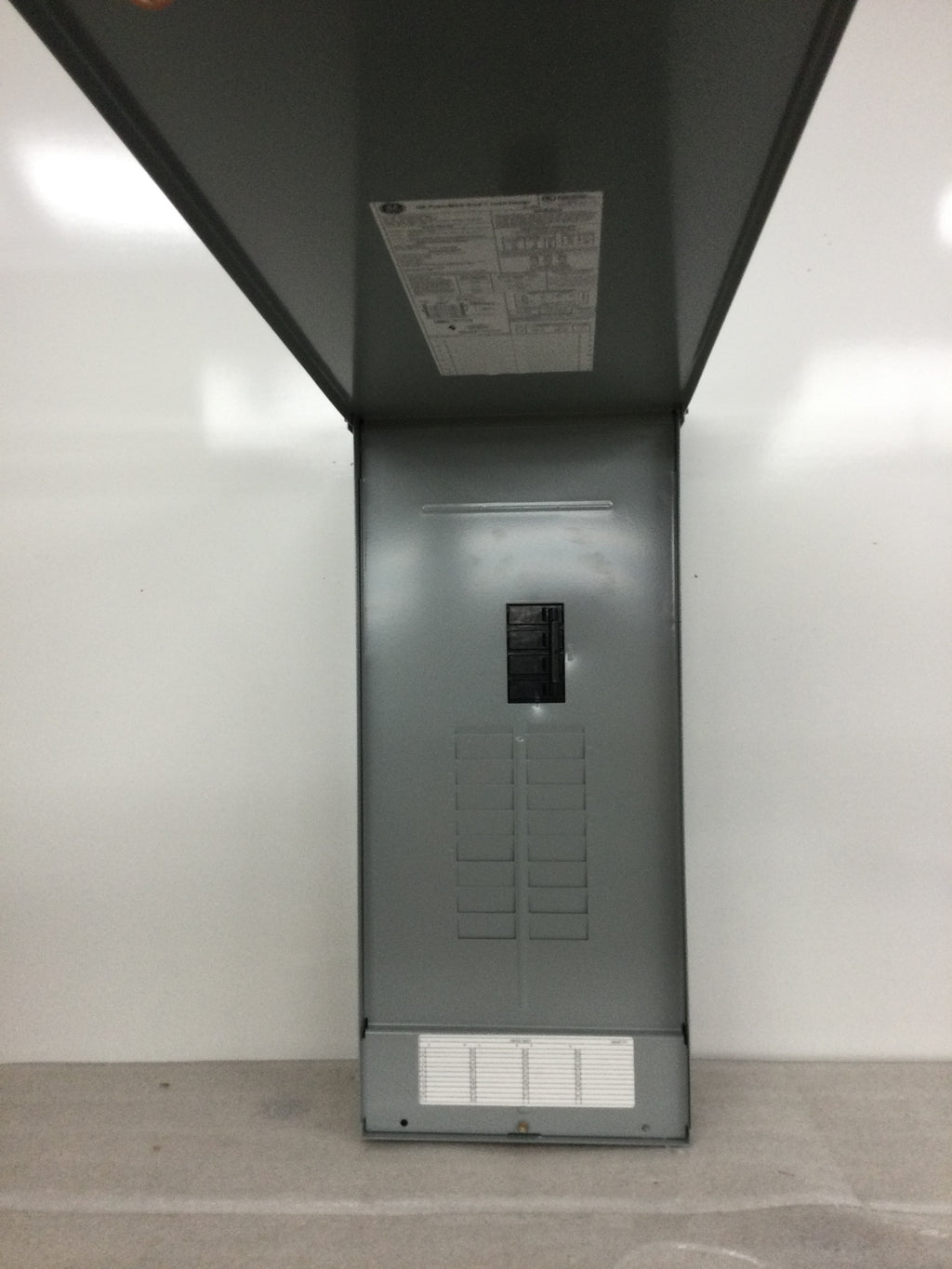

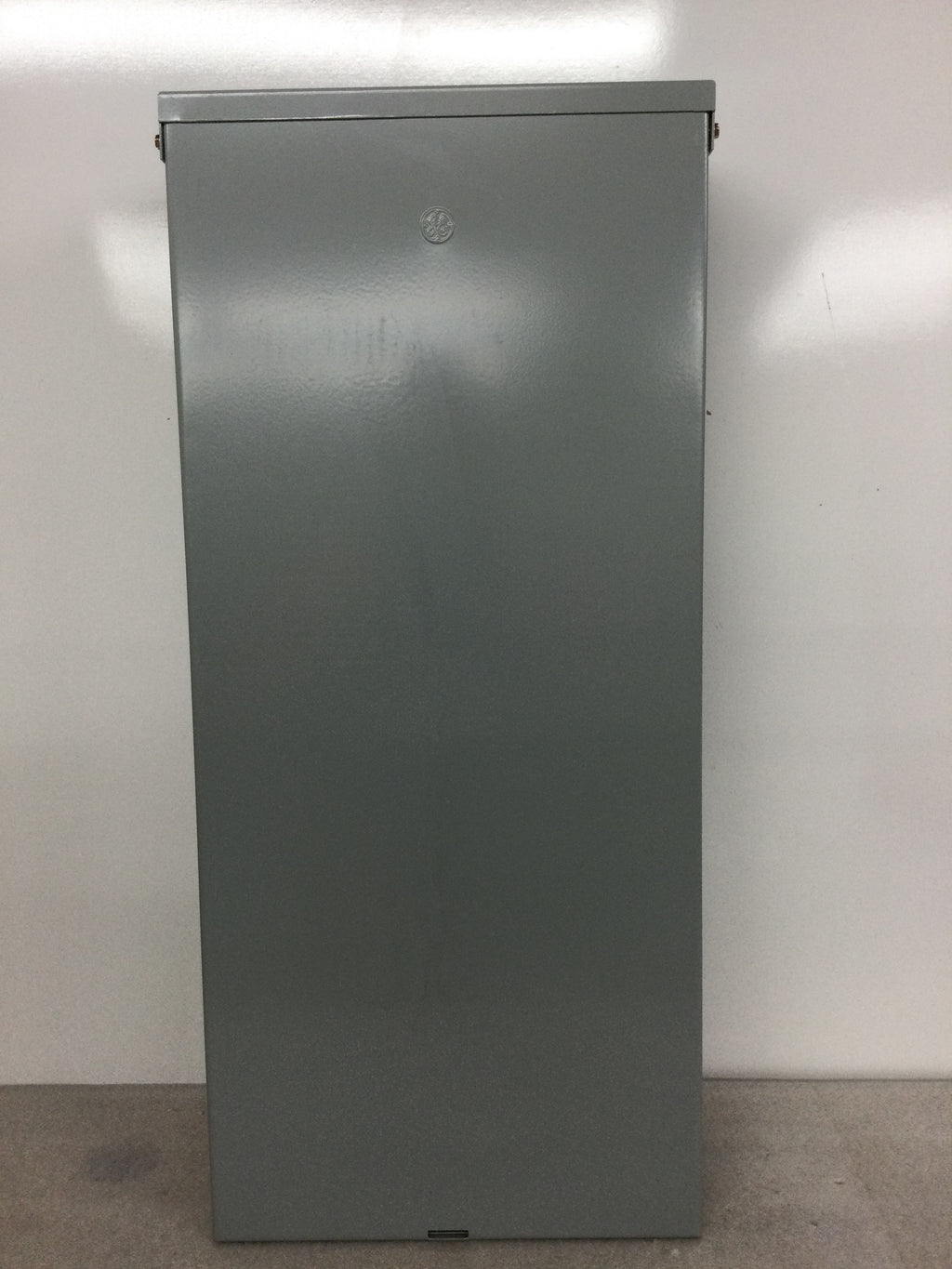

GE TM1615RCUP PowerMark Gold 150 Amp 16-Space 32-Circuit Outdoor Main Breaker Circuit Breaker Panel

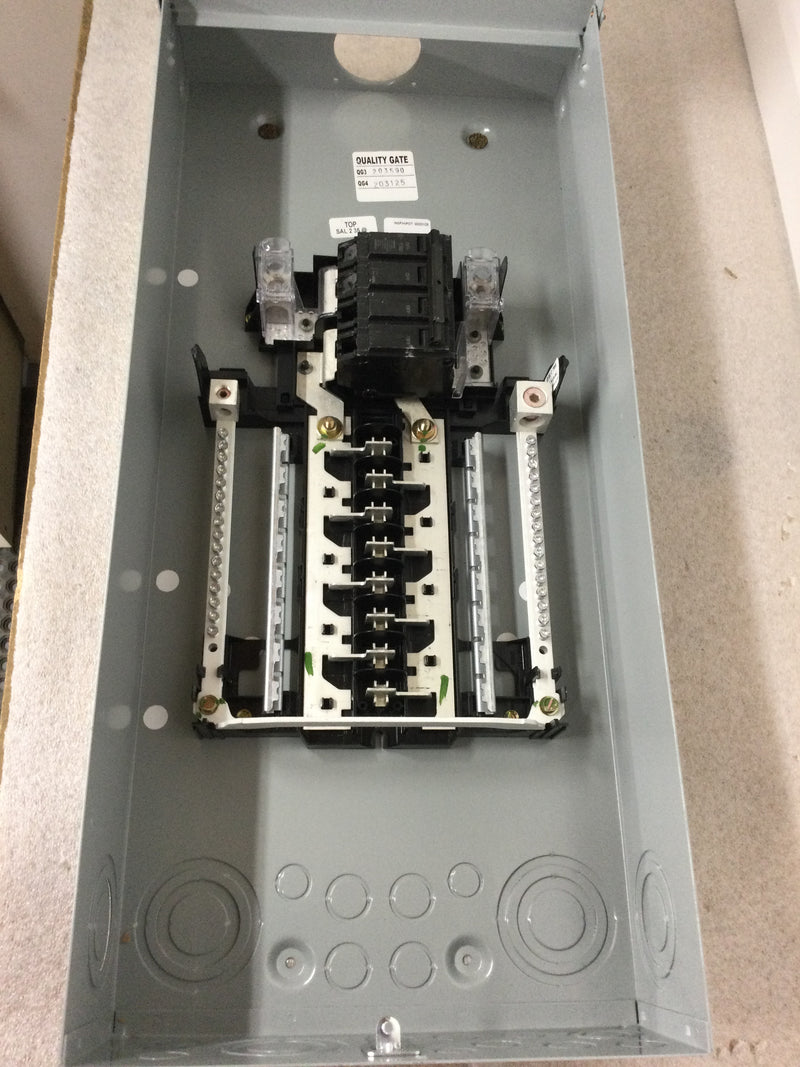

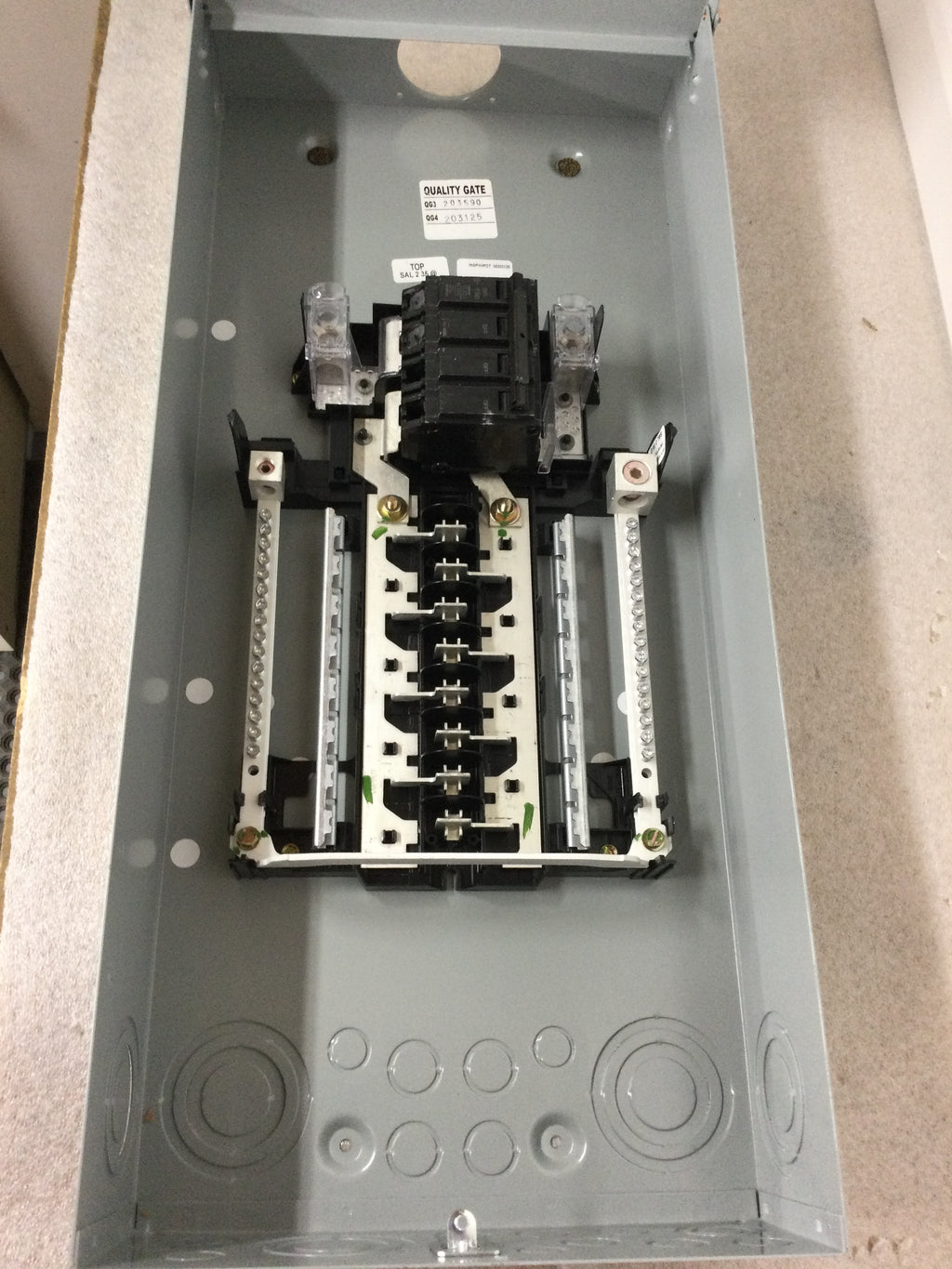

The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.

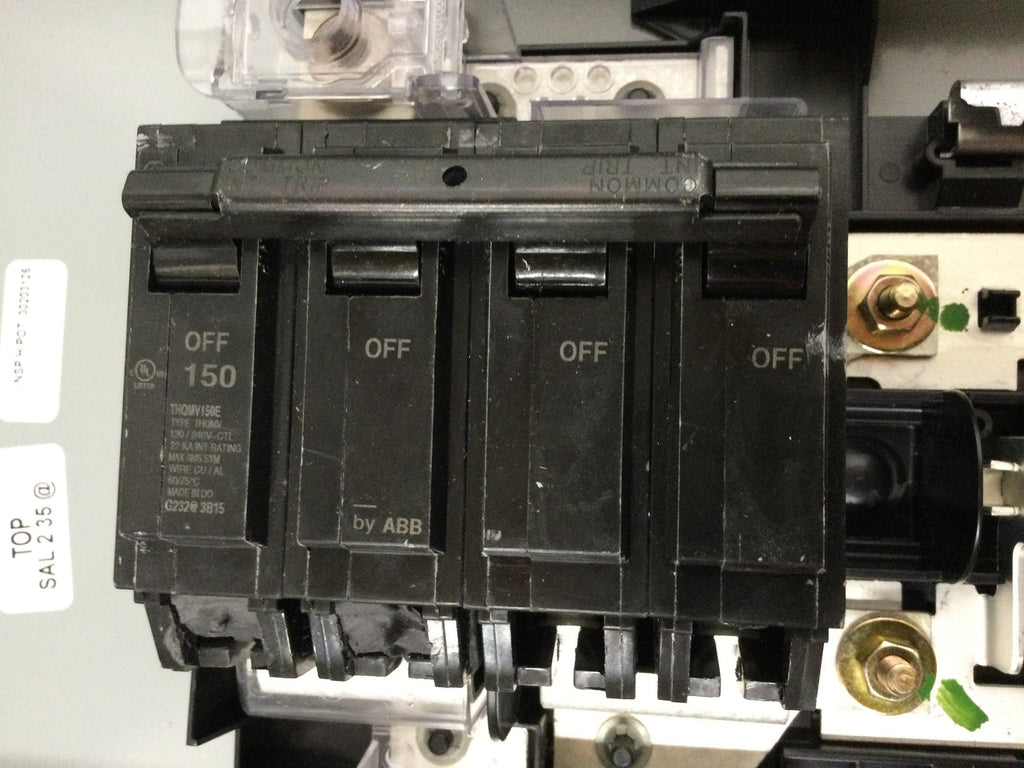

- For use as a main breaker load center
- Suitable for use as service entrance equipment when installed in accordance with the NEC

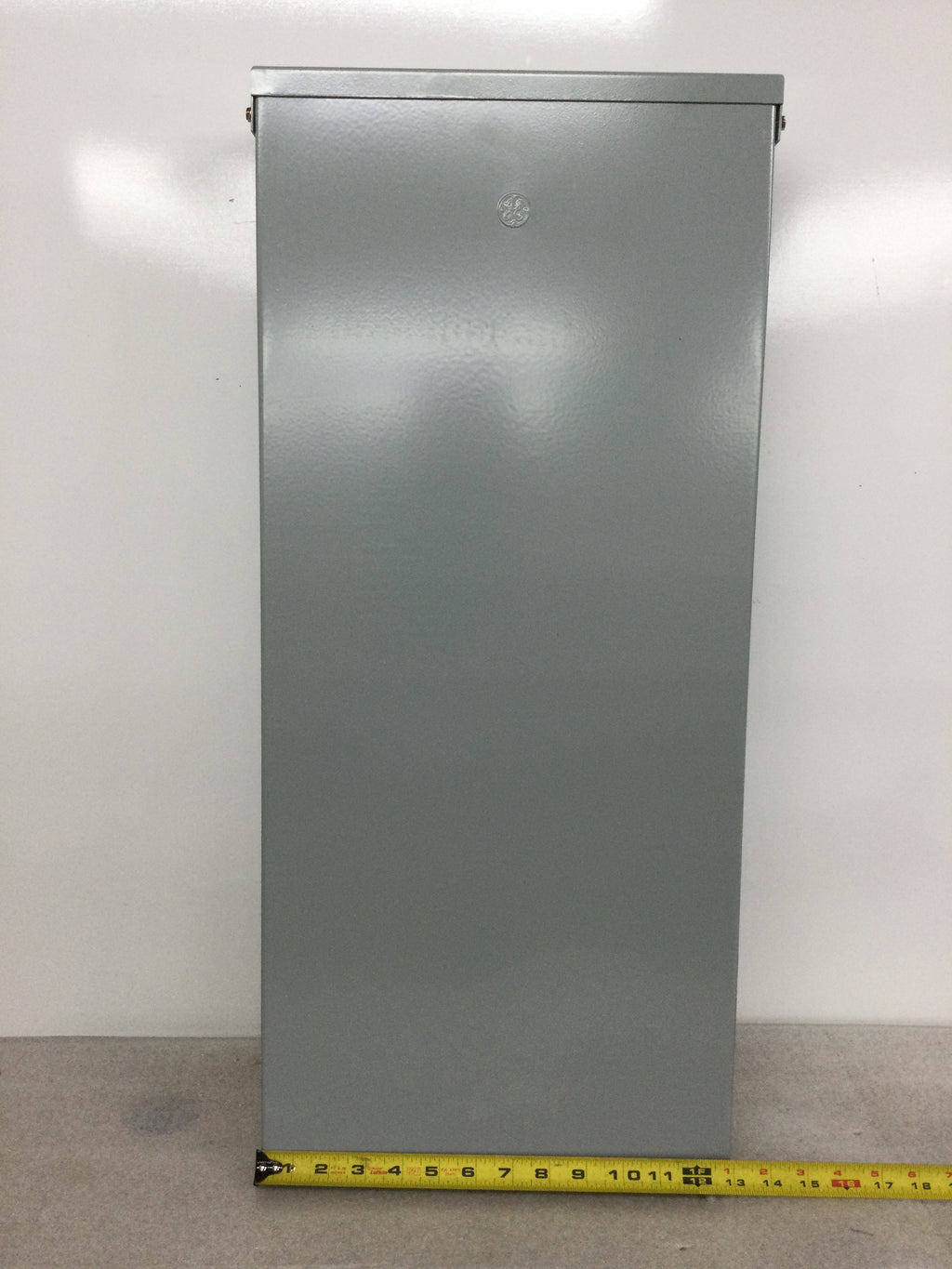

- NEMA 3R-rated enclosure for outdoor use
- Copper buss for excellent conductivity
- Single phase
- 240-Volts
Dimensions

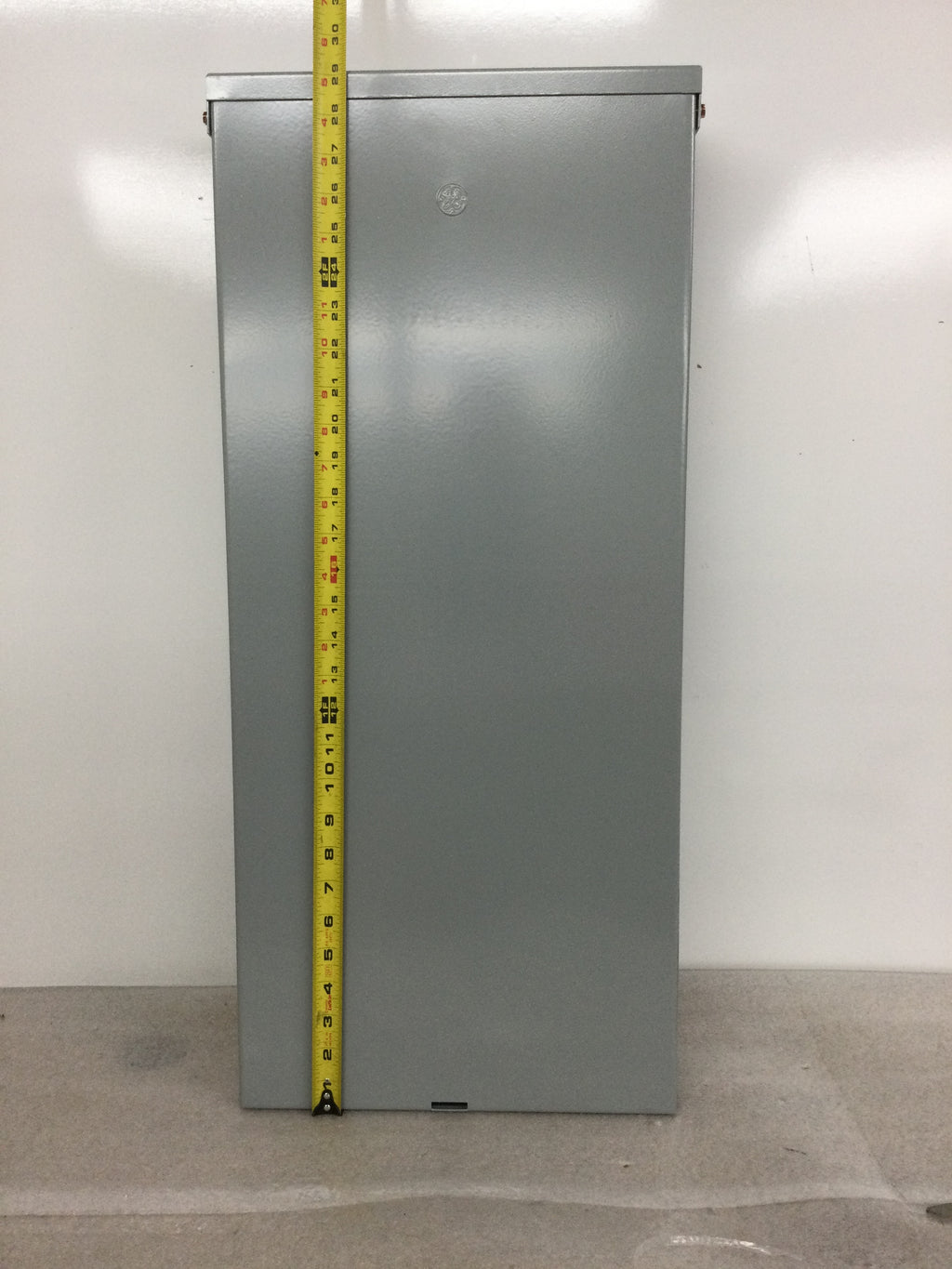

| Load center depth (in.) | 5 | Load center height (in.) | 29 |
|---|---|---|---|

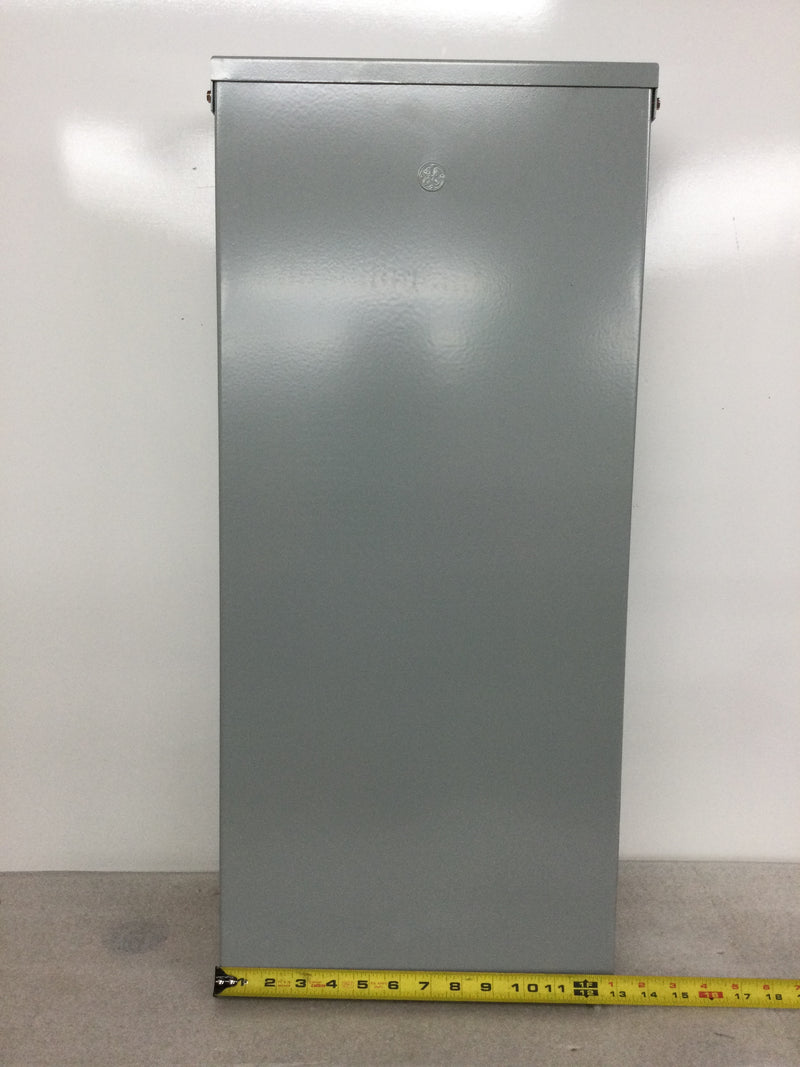

| Load center width (in.) | 13 |
Details
| Electrical Product Type | Load Center | Indoor/Outdoor | Outdoor |
|---|---|---|---|
| Load Center Mounting Type | Surface | Load Center Type | Main Breaker |
| Maximum Amperage (amps) | 150 | Mounting Type | Plug-On |
| NEMA Configuration | NEMA 3R | Number of Circuits | 32 |
| Number of Spaces | 16 | Phase Type | 1 Phase |
| Product Weight (lb.) | 30.0 | ||
| Voltage (volts) | 240 |
