Description

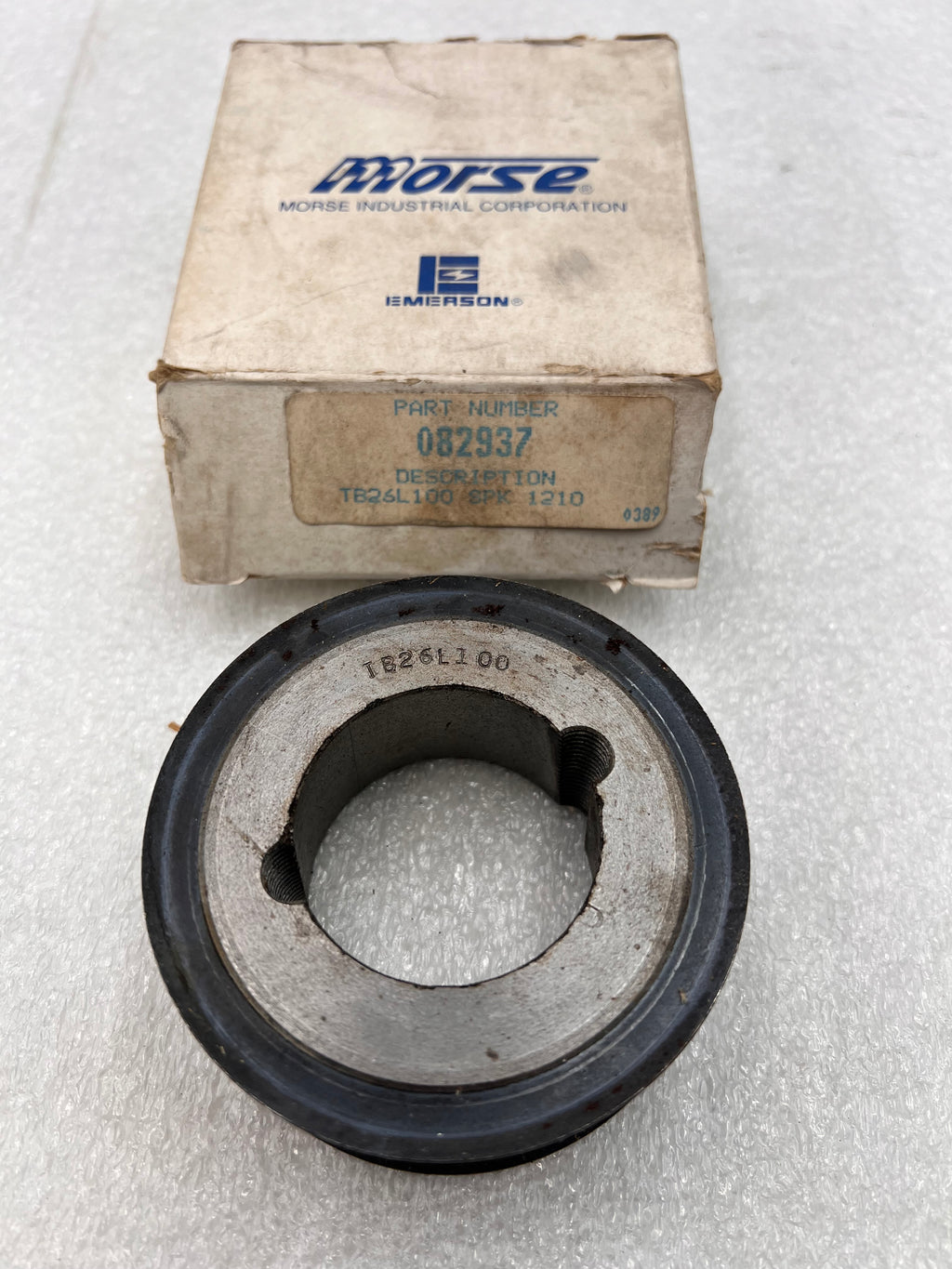

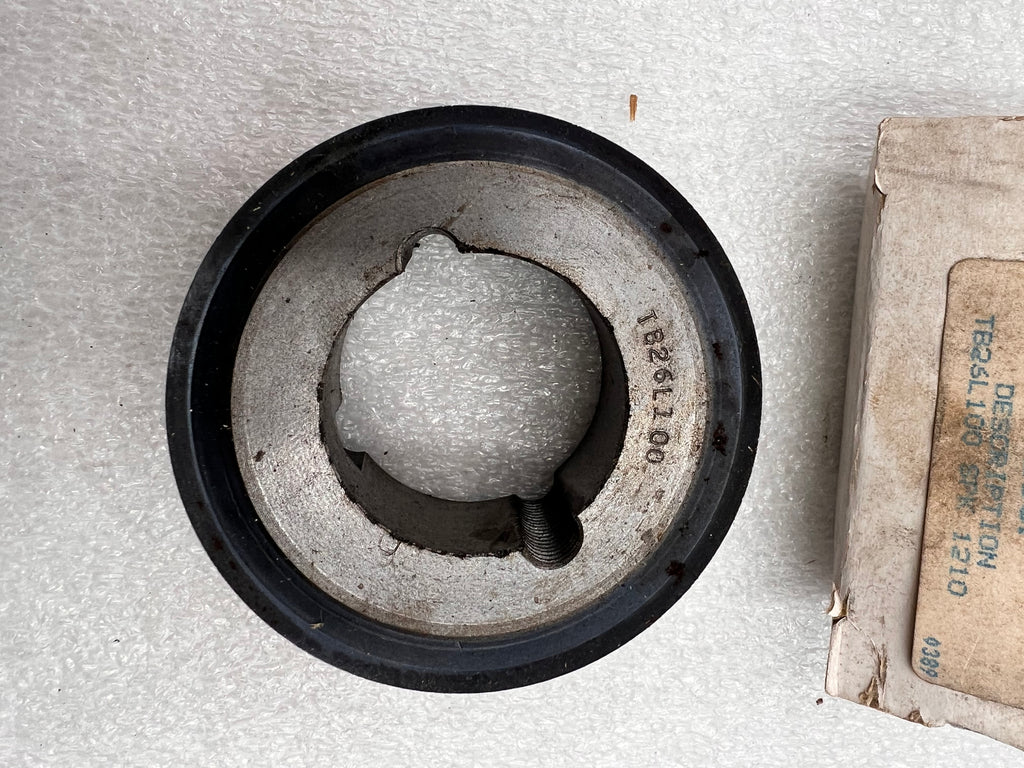

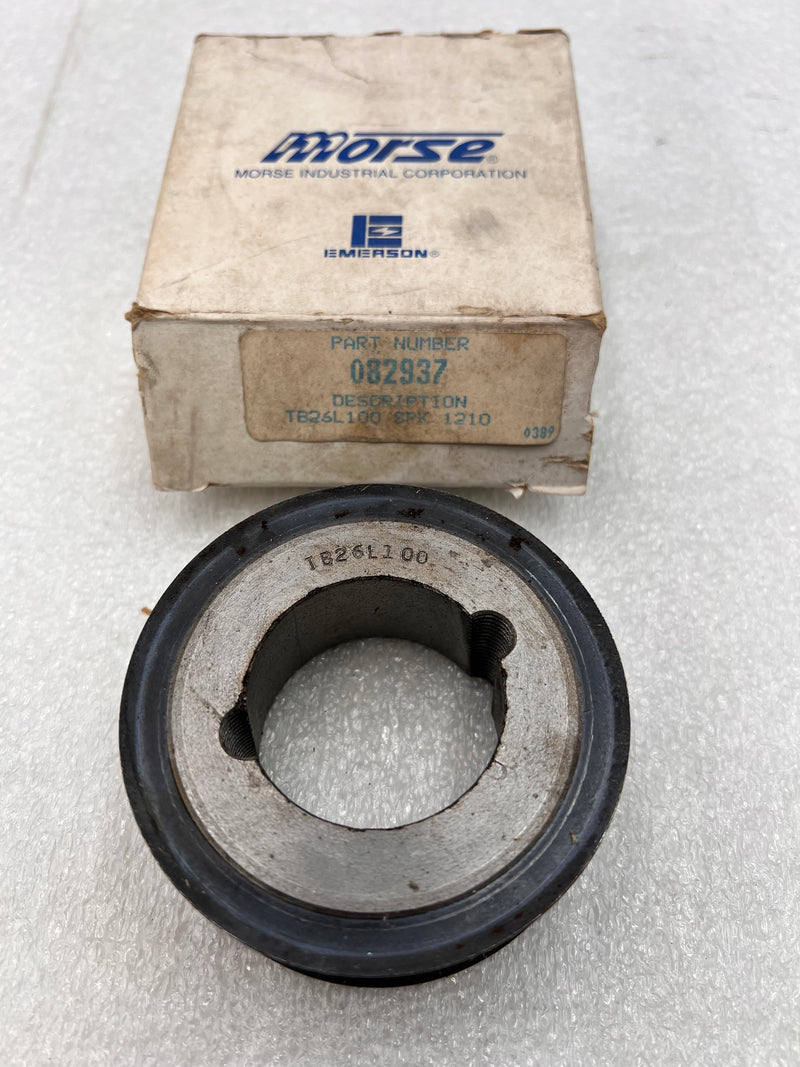

The Martin TB26L100 is a timing belt pulley with the following specifications:
- Pitch: 0.3750 inches
- Tooth Count: 26

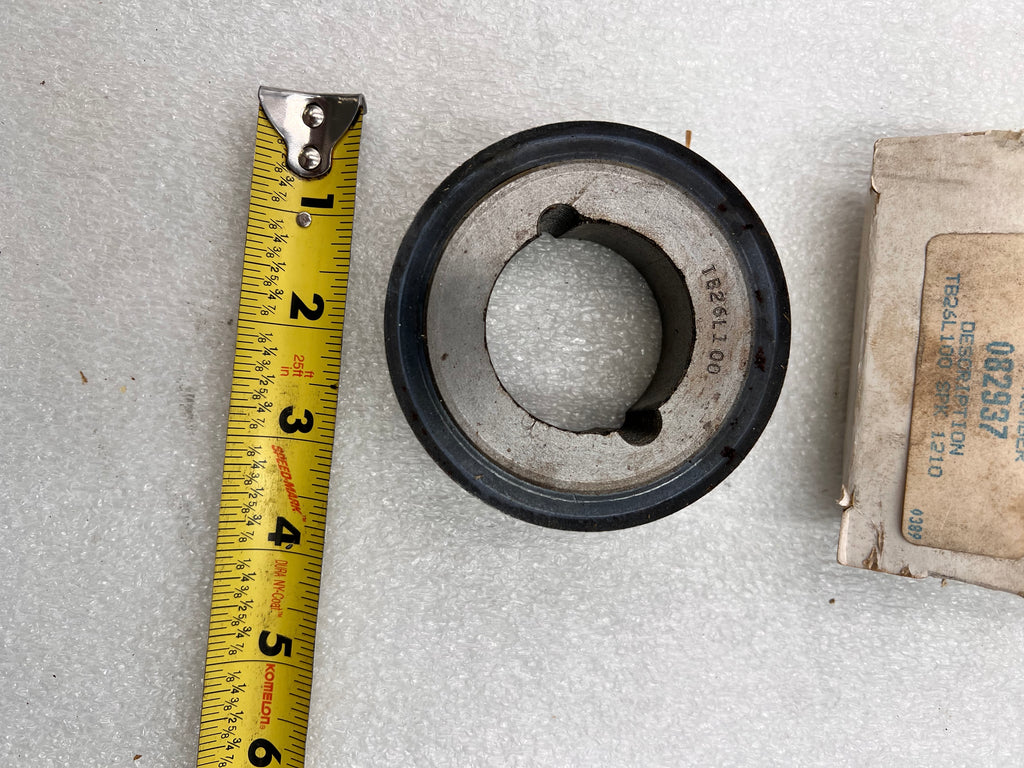

- Outer Diameter: 3.074 inches
- Belt Width: 1.0000 inch
- Bore Type: Taper Lock Bushed
- Bushing Bore Range: 1/2 to 1-1/4 inches
- Flange Outside Diameter: 3.328 inches
This pulley is designed for positive slip-proof engagement, has a wide speed range, constant driven speed, and higher horsepower capability. It requires a Taper Lock bushing for installation
