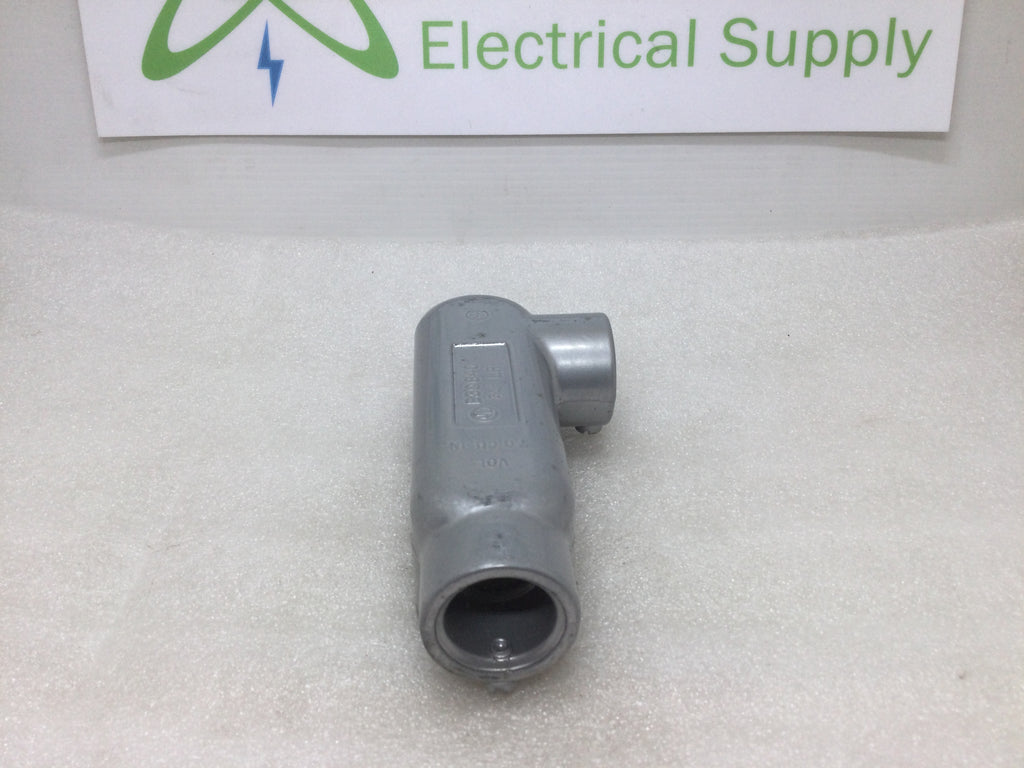

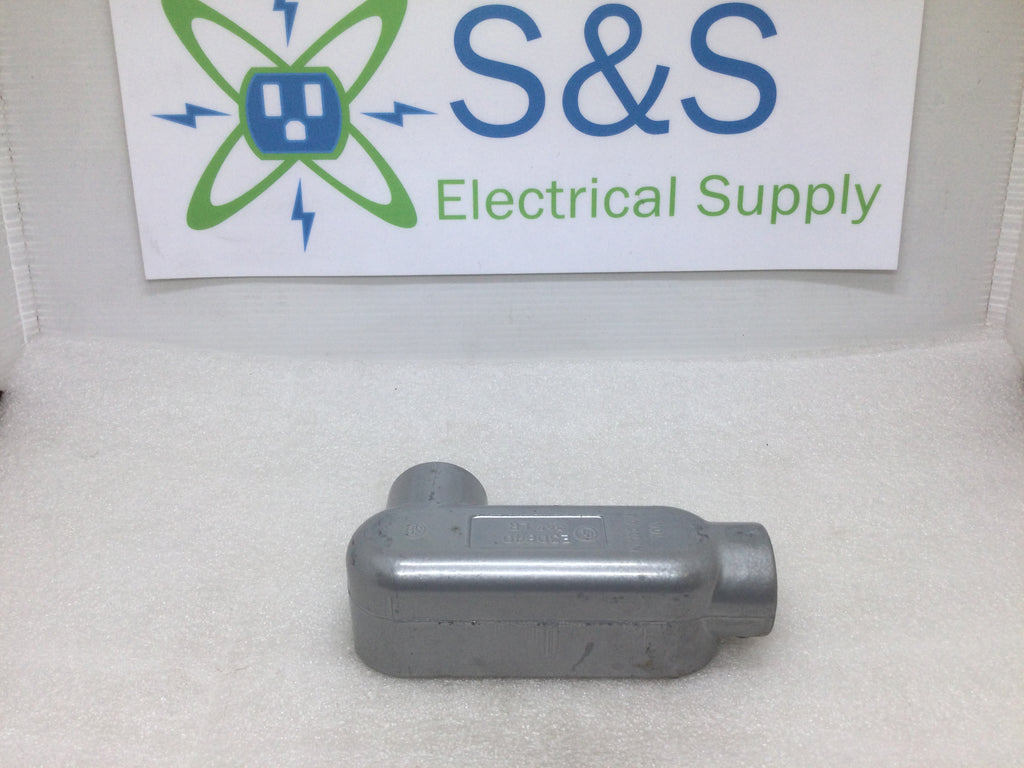

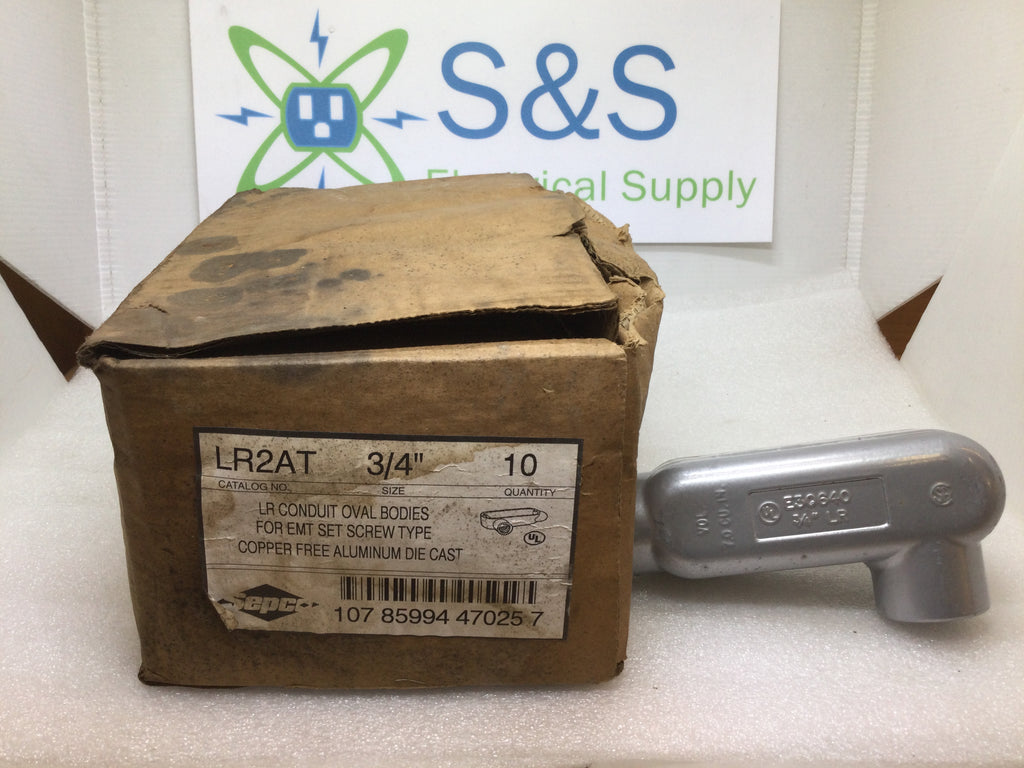

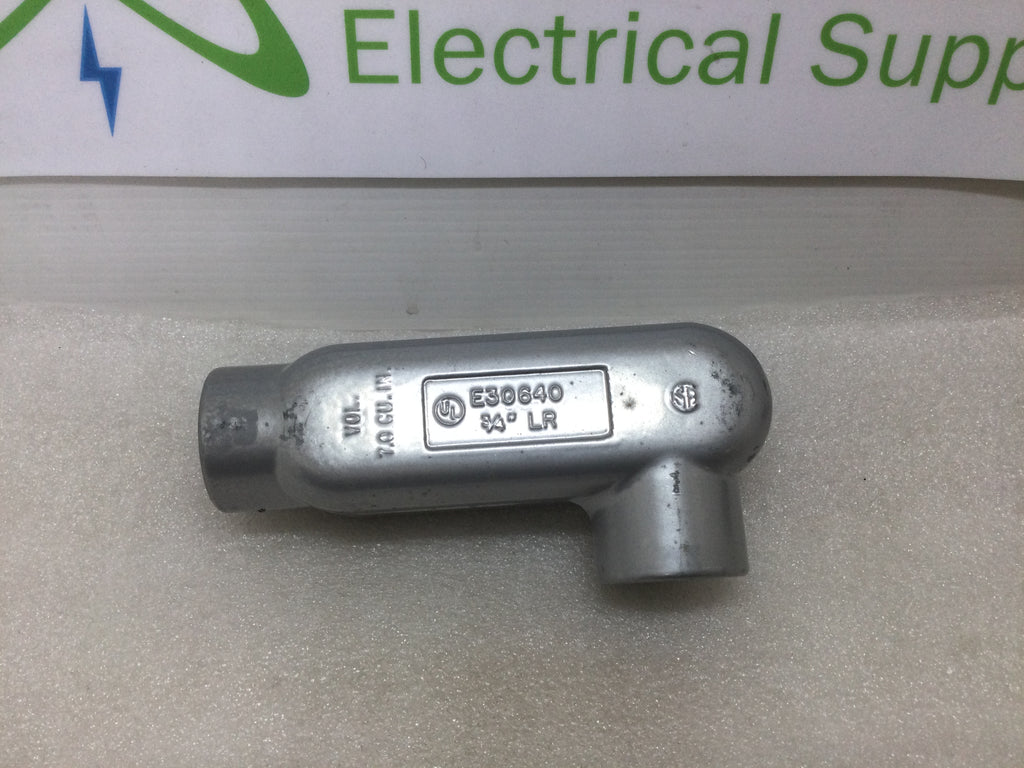

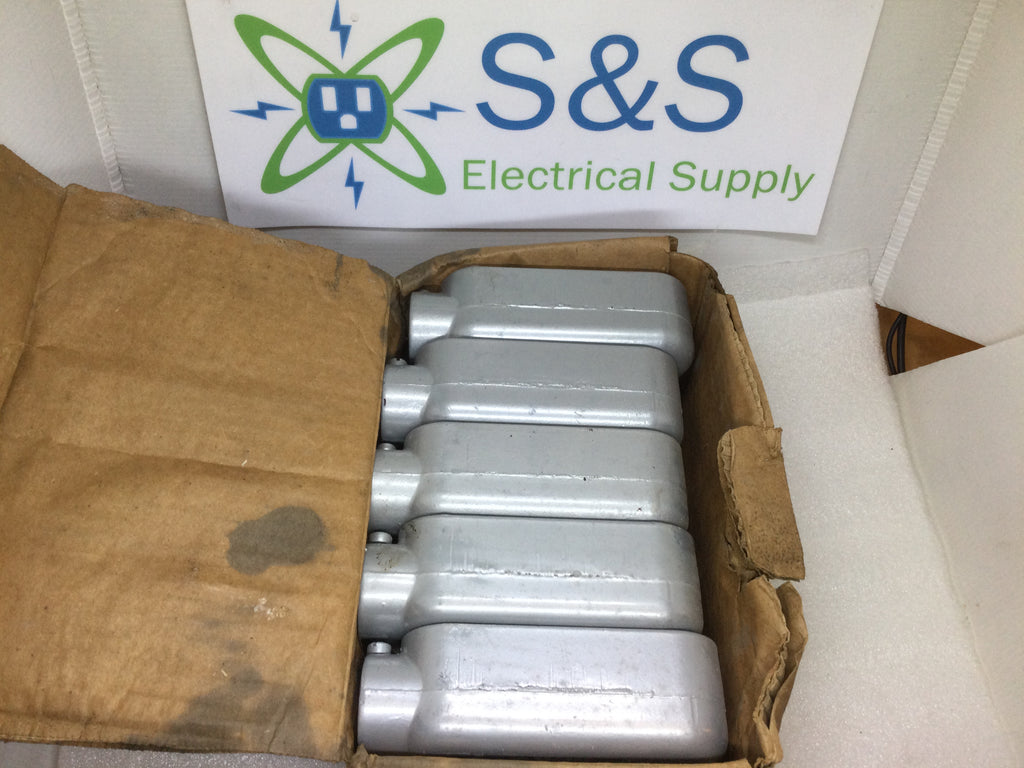

The Sepco LR2AT is a
3/4-inch Type LR set-screw conduit body manufactured by Steel Electric Products Company (SEPCO). It is designed to connect, guide, protect, and provide access to
EMT (Electrical Metallic Tubing) thinwall conduits for wire pulling, splicing, and ongoing system maintenance.
Technical Specifications
Type: LR (Right-side opening when looking from the feed end)
Trade Size: 3/4 inch
Material: Die-cast, copper-free aluminum with an aluminum enamel finish (corrosion and weather-resistant)
Connection Type: Set-screw (features two set-screw threaded hubs oriented at 90 degrees)
Maximum Wire Capacity: Up to 3 #6 AWG conductors
Internal Volume: 7.30 cubic inches
Dimensions: 5.06" Length x 2.25" Width x 1.63" Height
Certifications: UL Listed (UL 514-B)
Design Feature: Flat back design for clean, flush mounting close to walls. It typically pairs with a screw-on aluminum cover and protective gasket.
