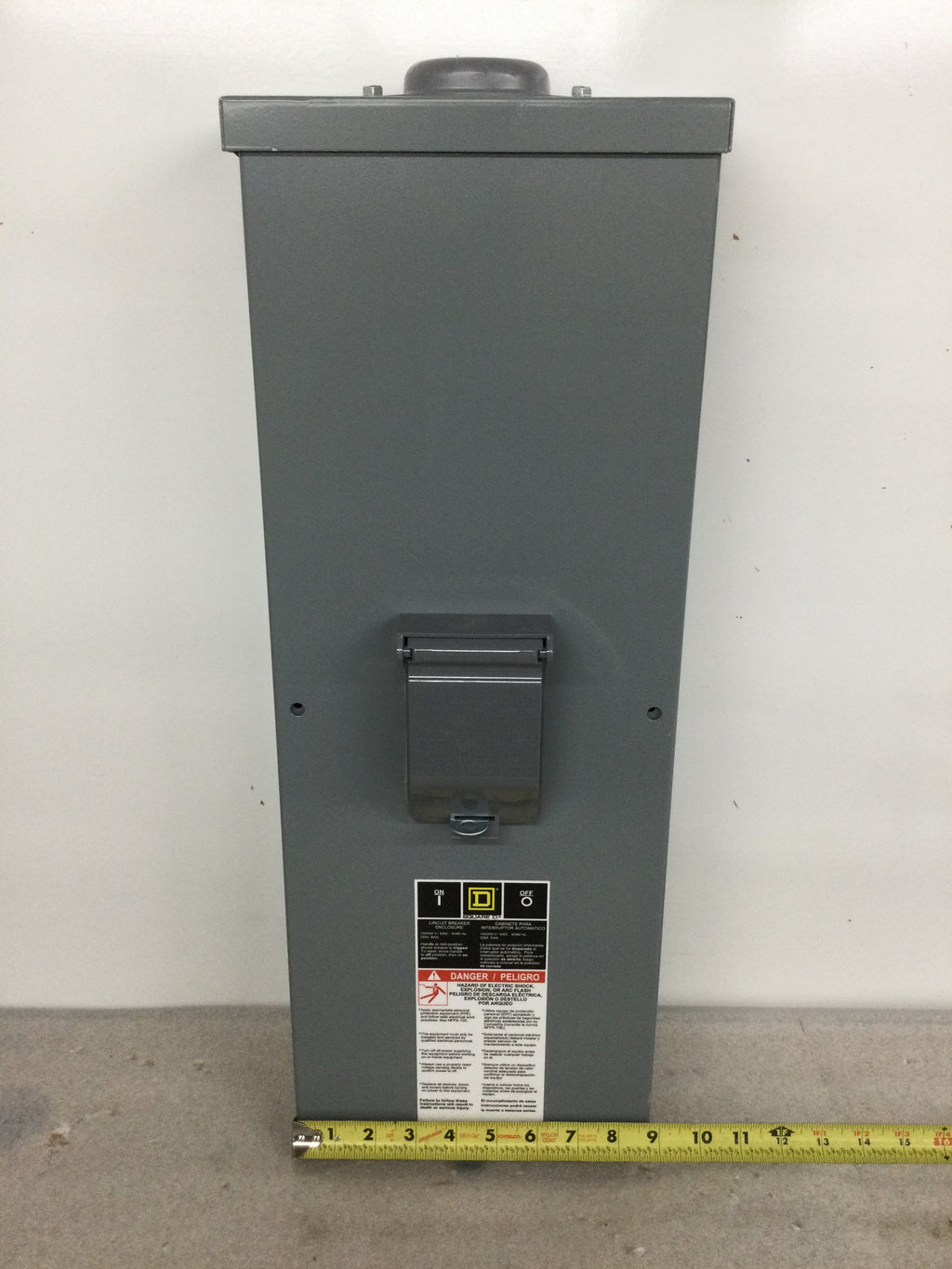

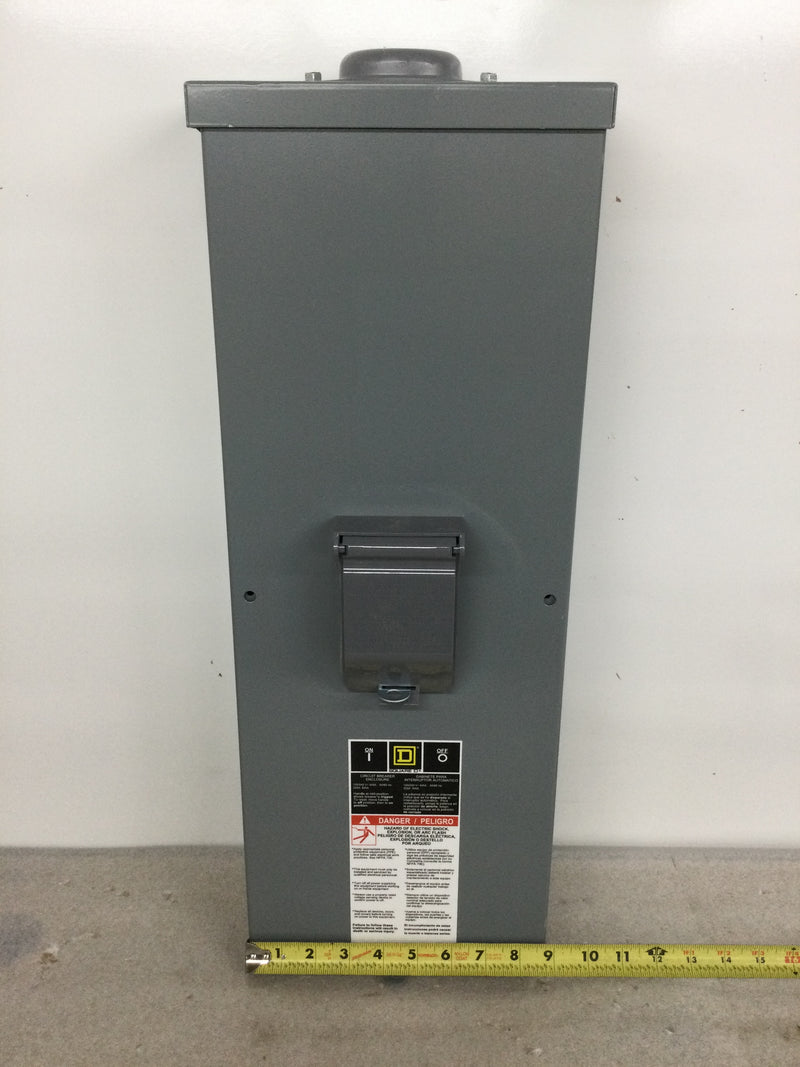

Square D OM2E2200NRB QO 200 Amp 2-Pole Outdoor Circuit Breaker Enclosure with QOM2200VH Breaker
The Square D by Schneider Electric QO 200 Amp Outdoor Circuit Breaker Enclosure includes a two-pole QOM2 frame sizes circuit breakers 100-225 amp capacity for use as an exterior disconnect. This breaker box is suitable for use as service entrance equipment for compliance up to 2017 NEC code, and is rated Type-3R for outdoor use. This enclosure accepts a B-Hub for top feed applications (sold separately). For non-service entrance equipment applications, ground bar PKOGTA-2 is included.

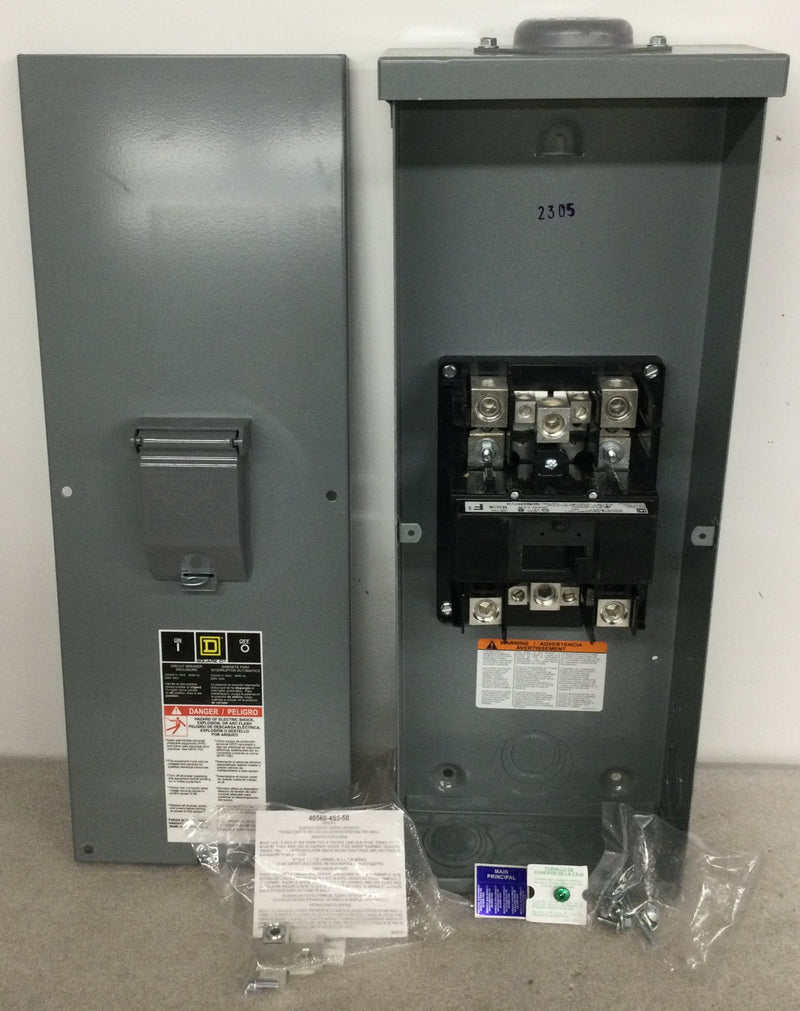

- Square D QOM2 200 Amp outdoor circuit breaker enclosure with QOM2200VH circuit breaker included
- Includes a PKOGTA-2 ground bar kit, B-hubs not included
- Not for use with single-pole QO breakers

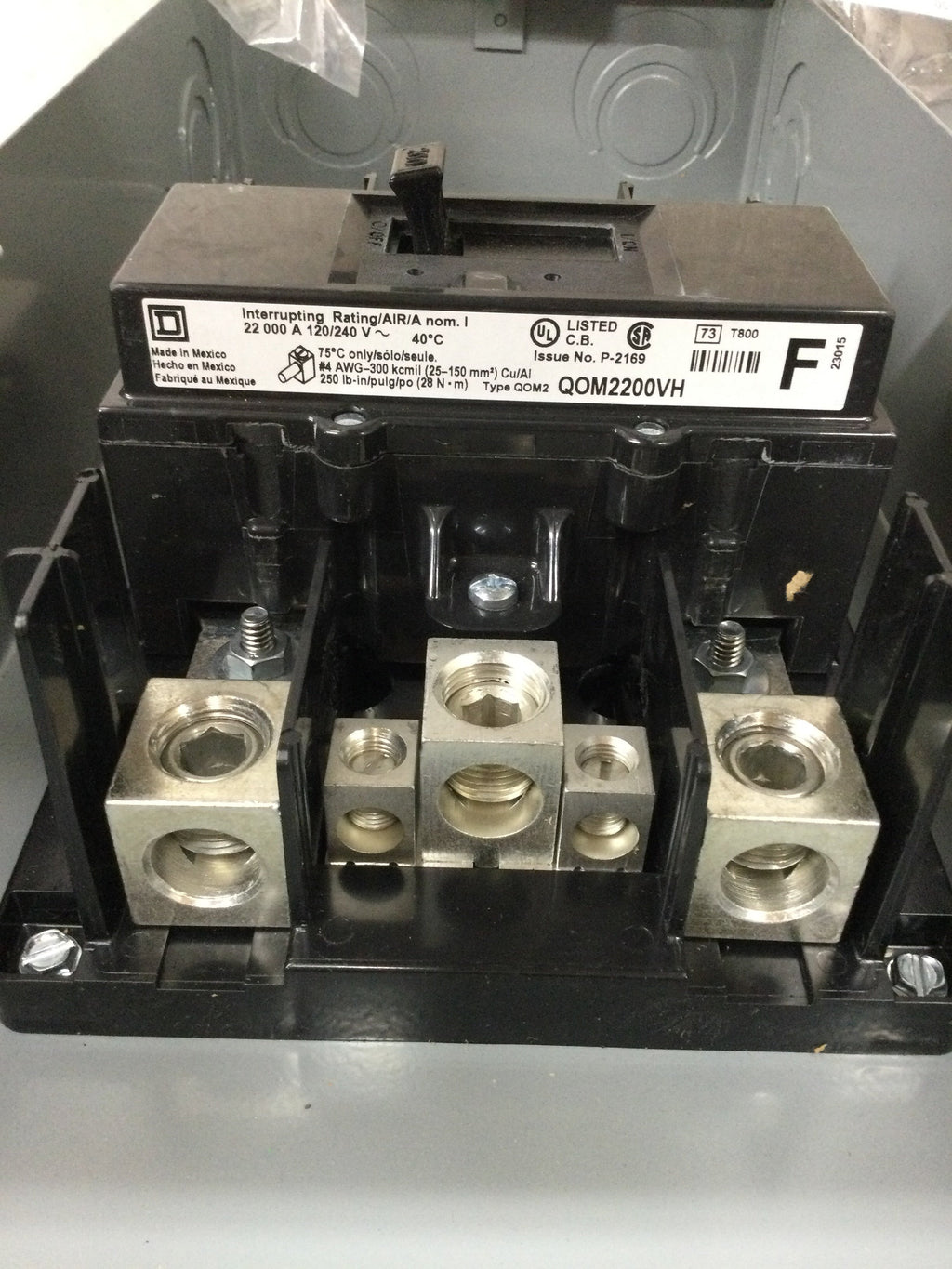

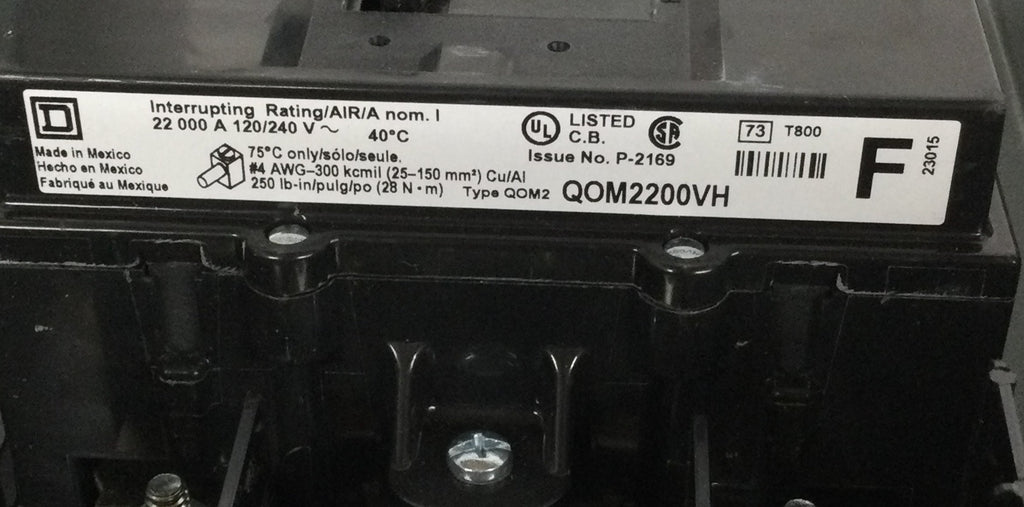

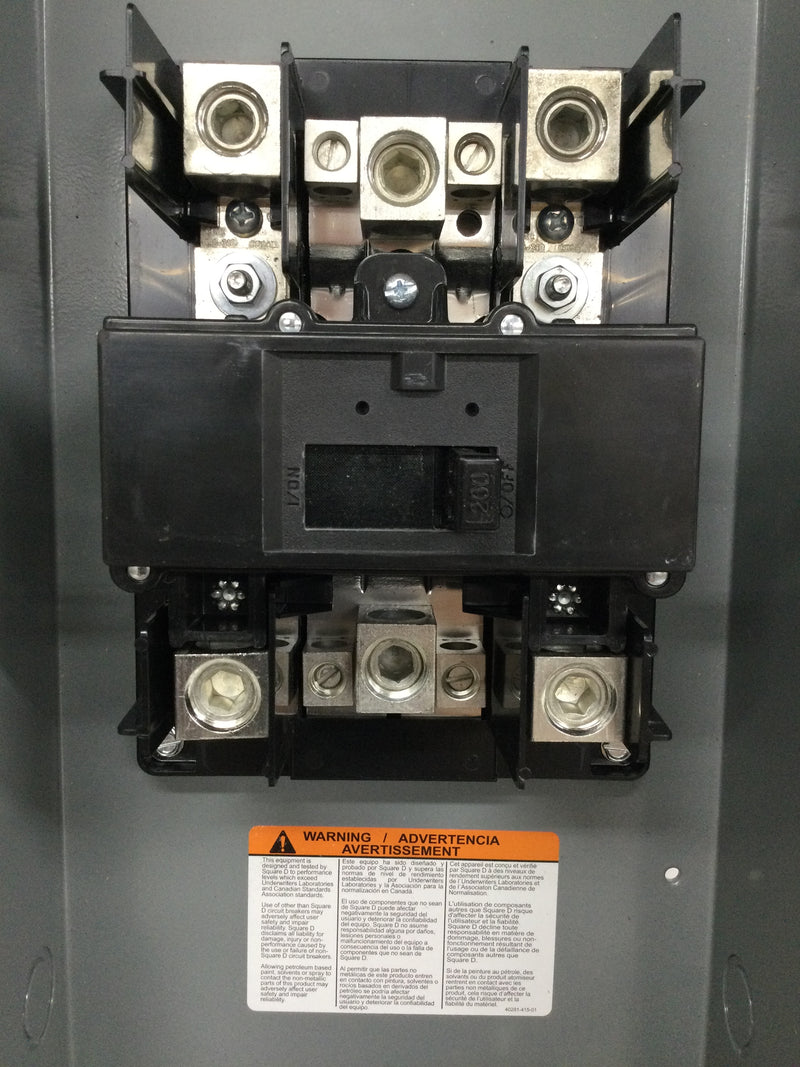

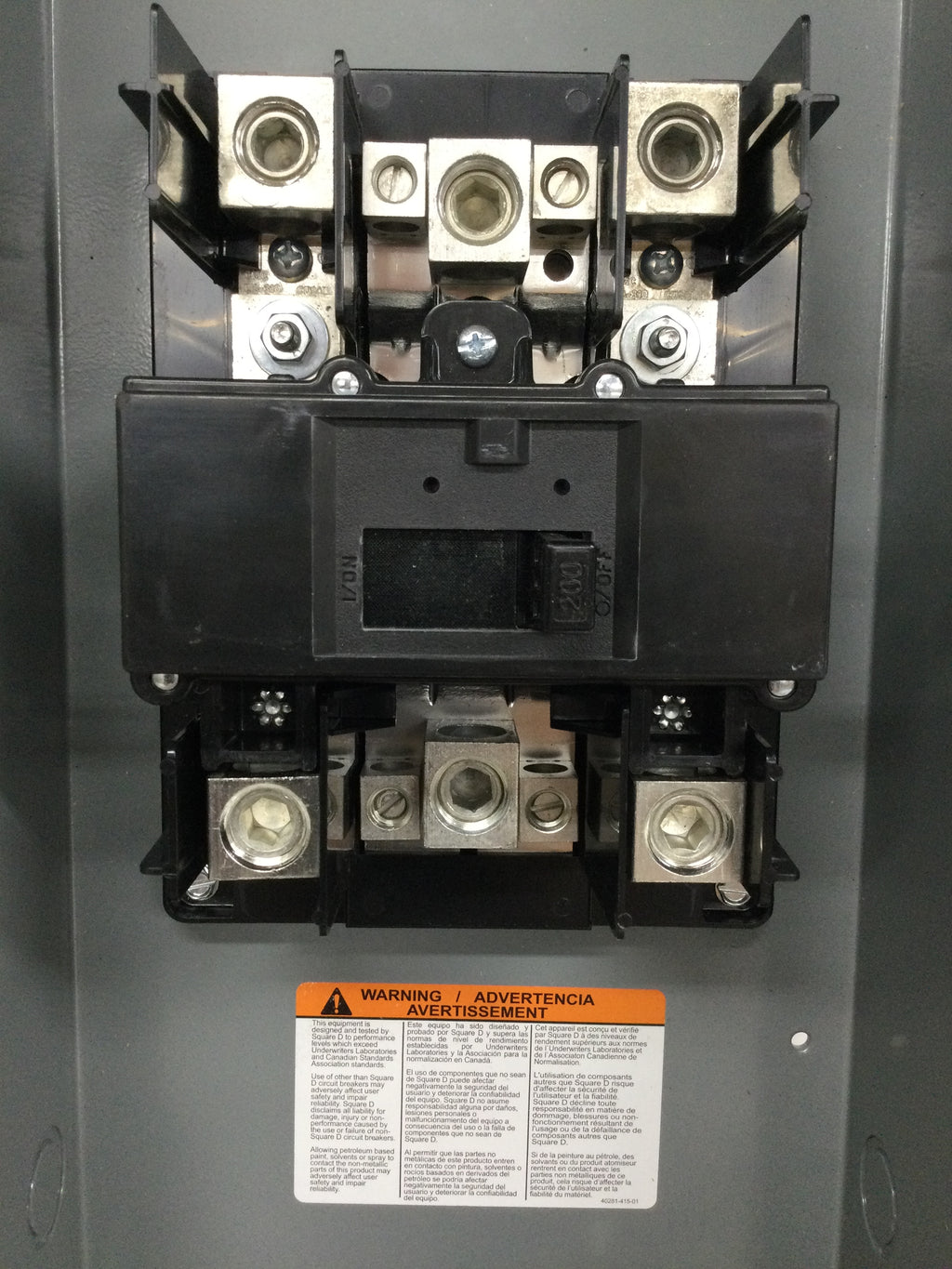

- Includes (1) Square D QOM2200VH 200 Amp circuit breaker, 22 kA interruption rating

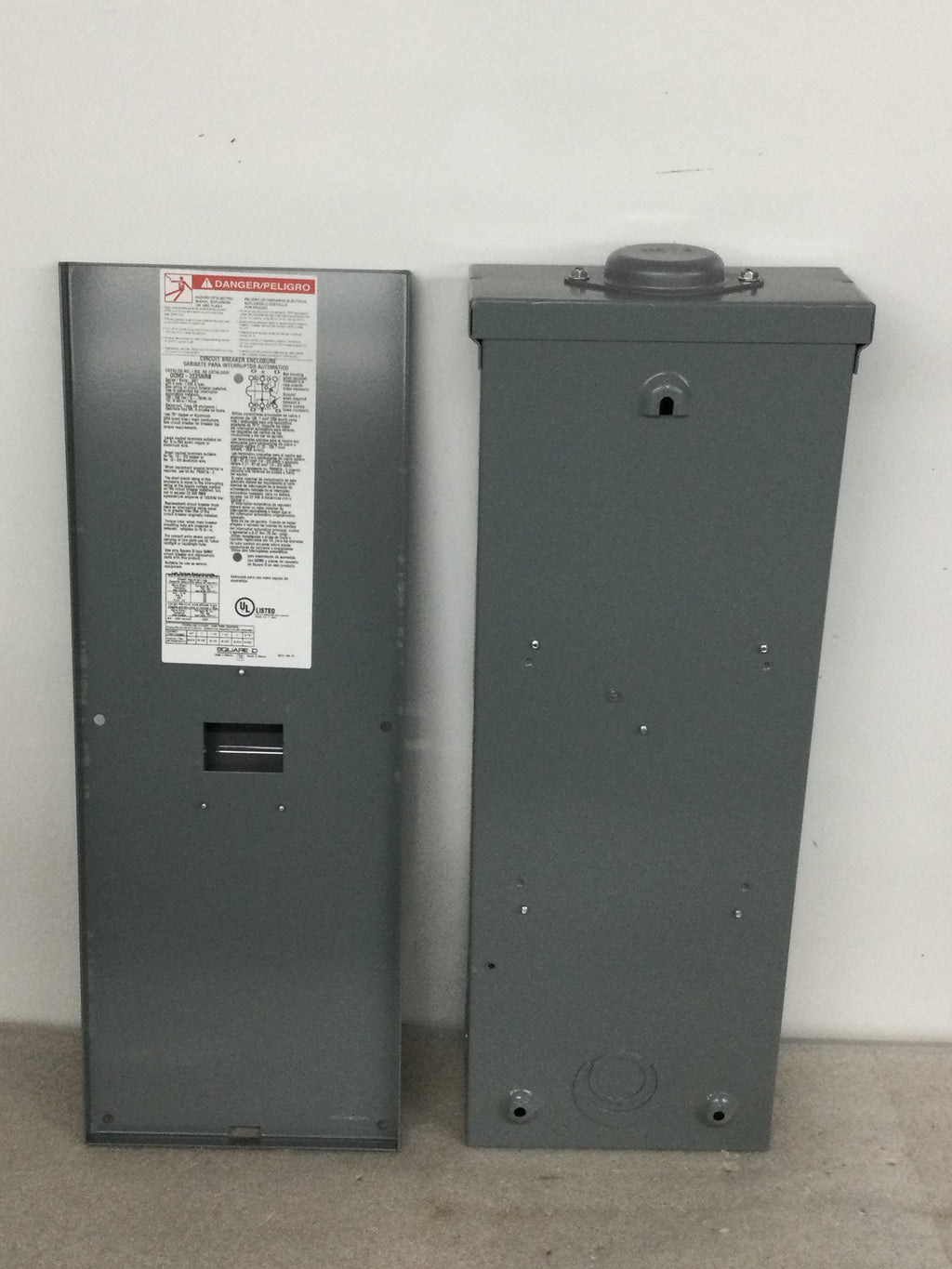

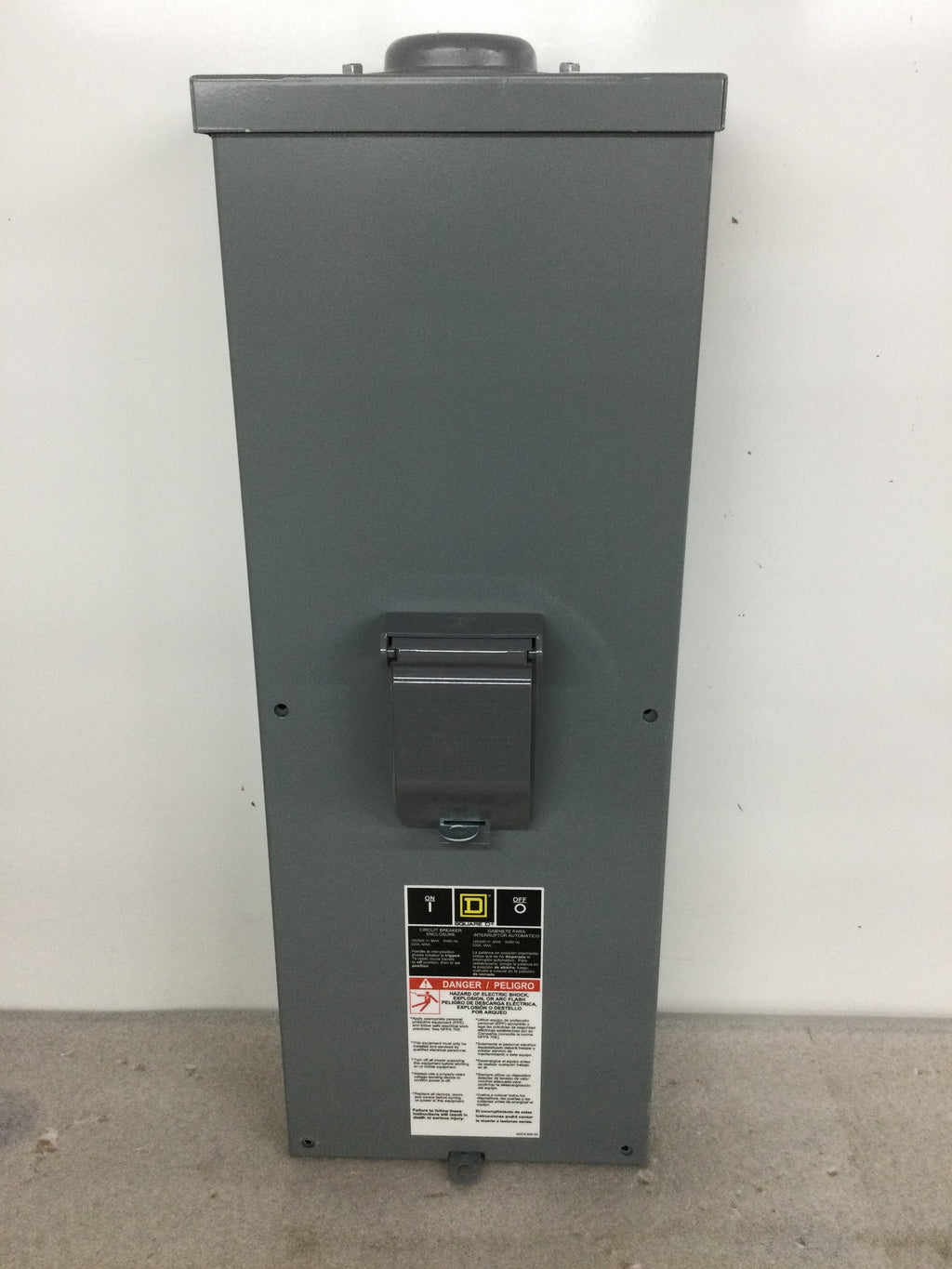

- Type-3R enclosure for outdoor use
- 1-phase, 200 Amp, 120/240-Volt AC rated
- 2-1/2 in. maximum B-type hub on the top and a 2 in. maximum knockout on the bottom
- Surface mountable for easy installation
- ANSI certified and UL Listed

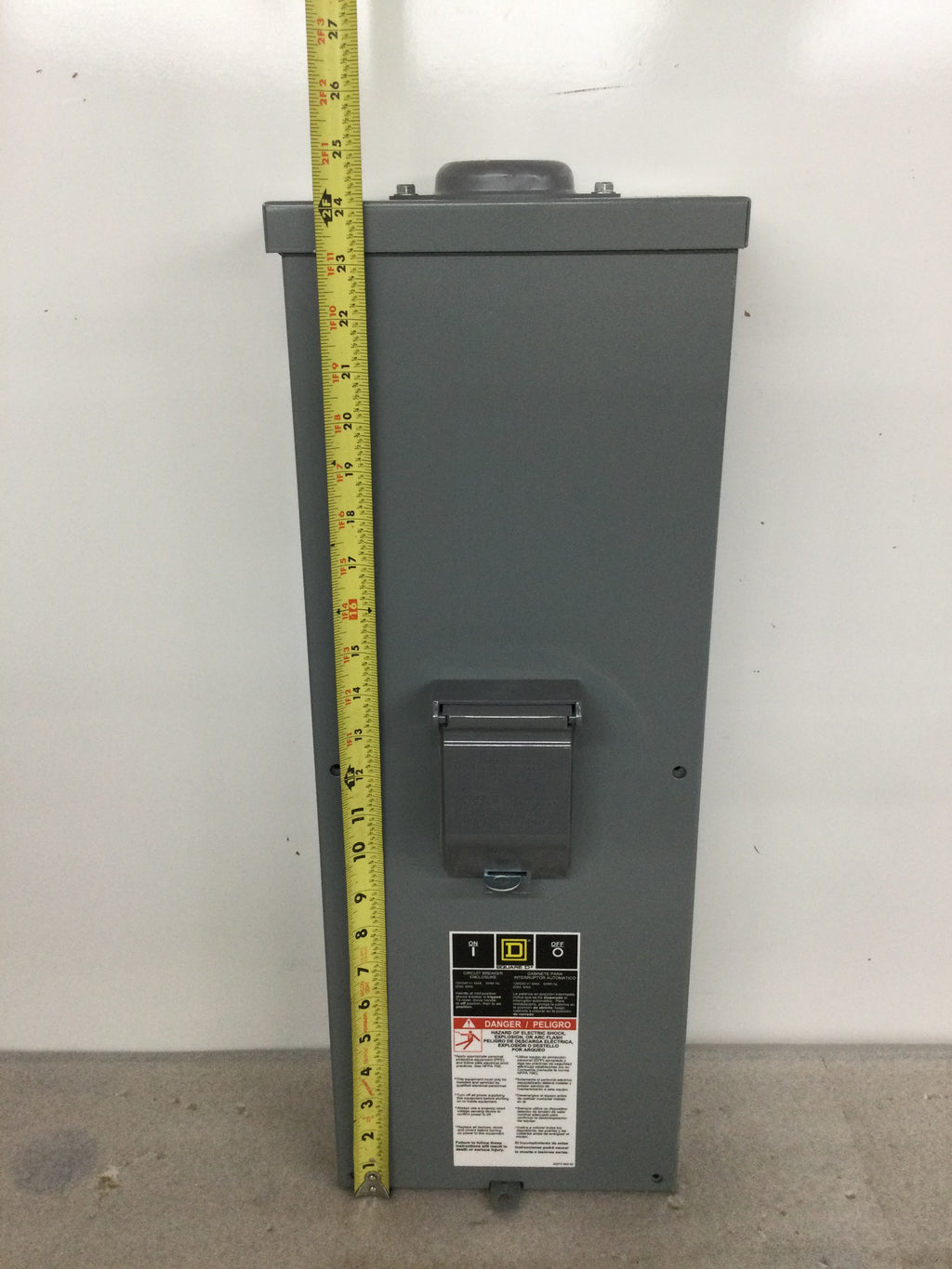

Dimensions 5.34" D x 8.68" W x 24.55" H
