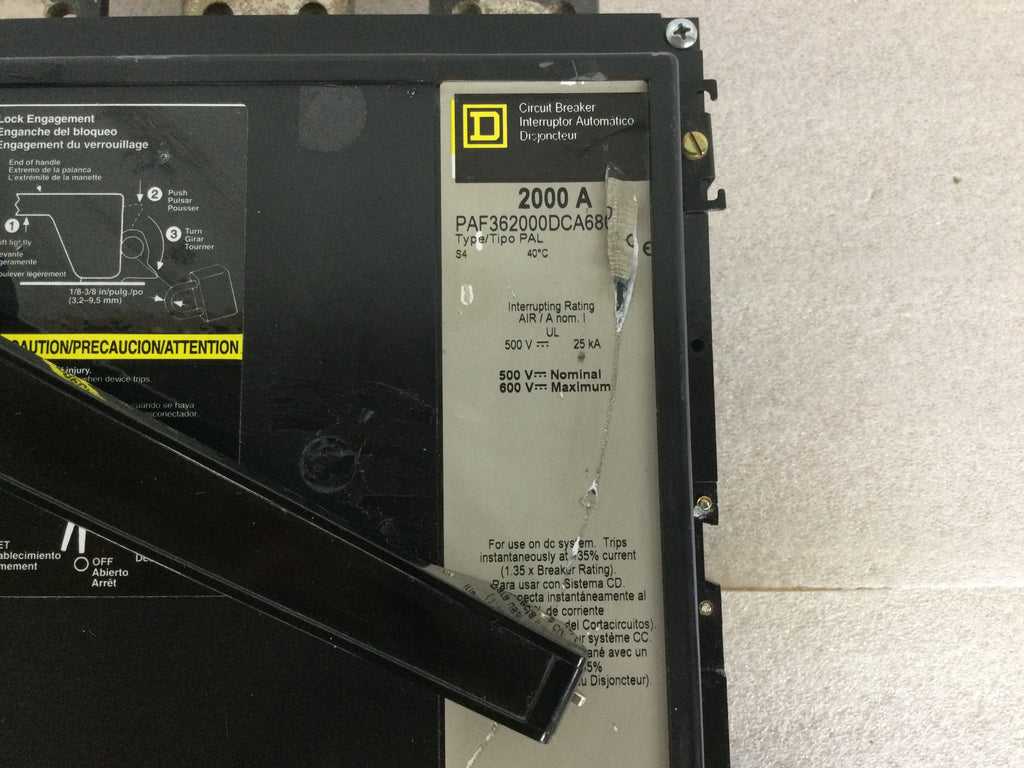

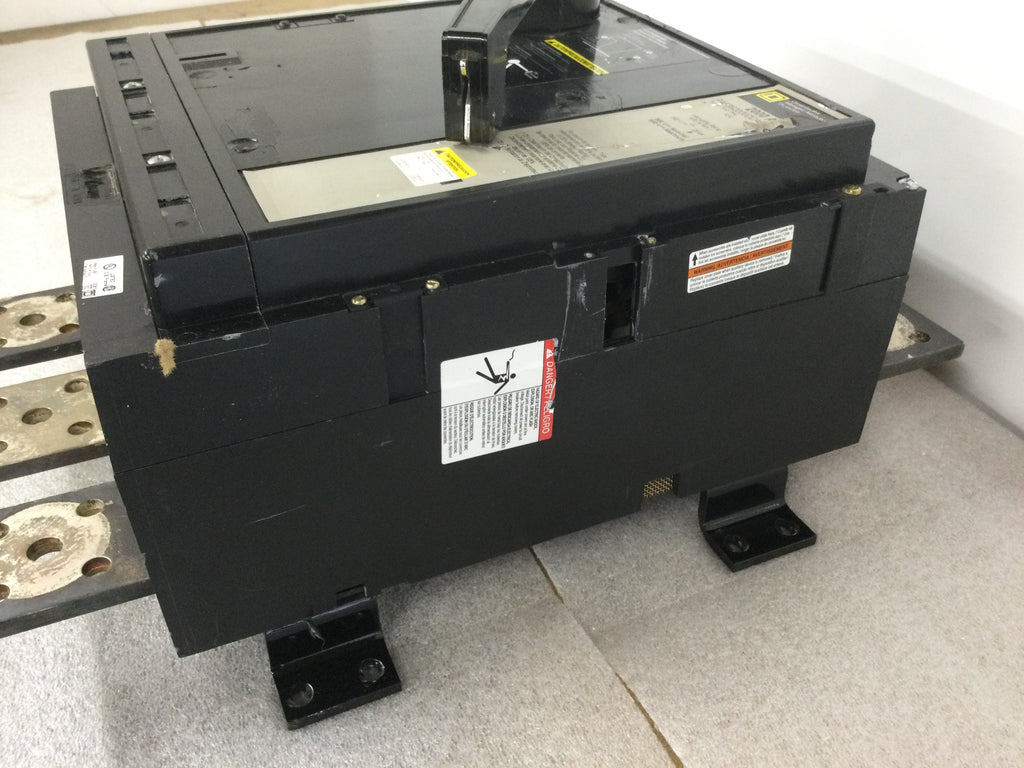

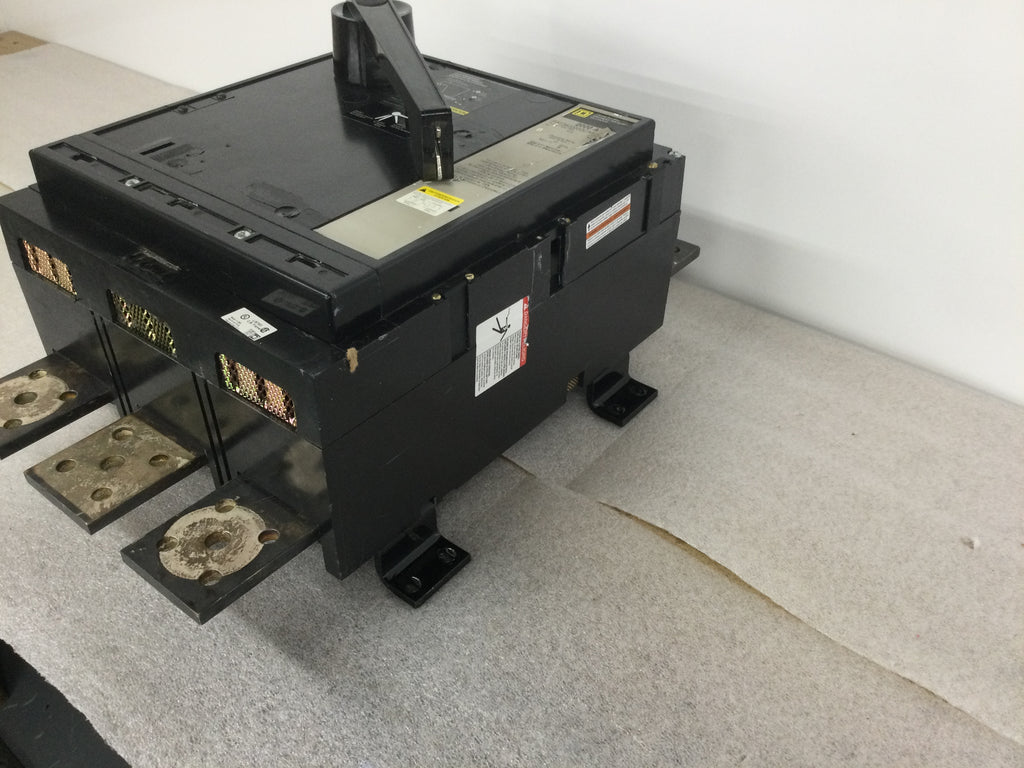

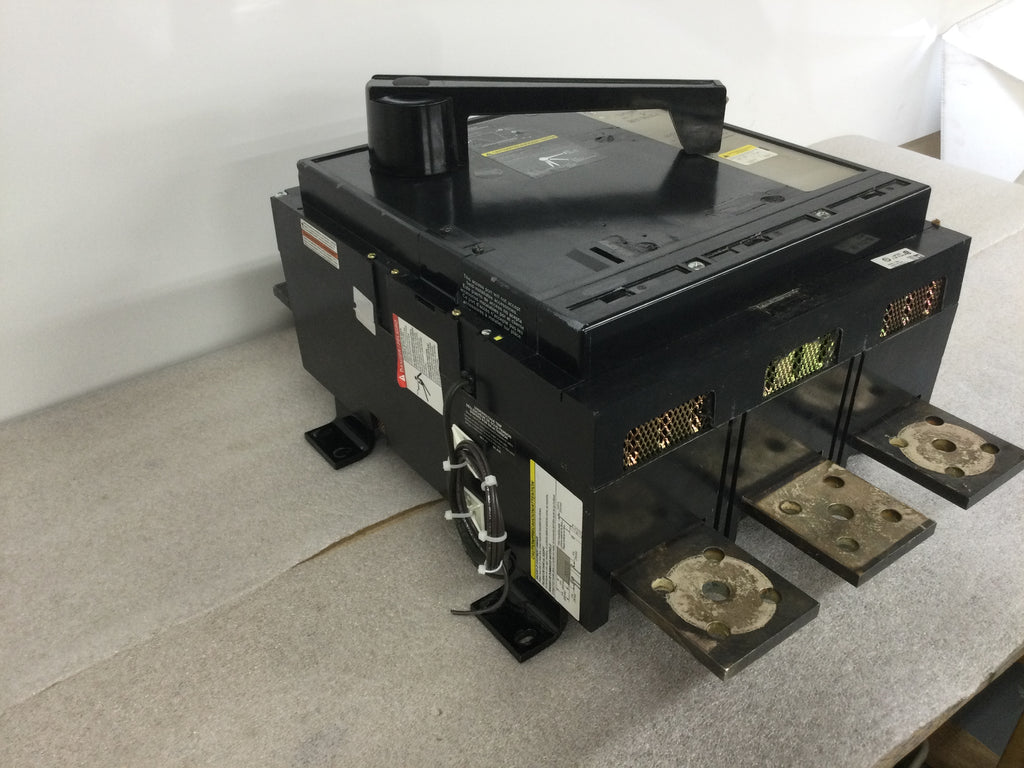

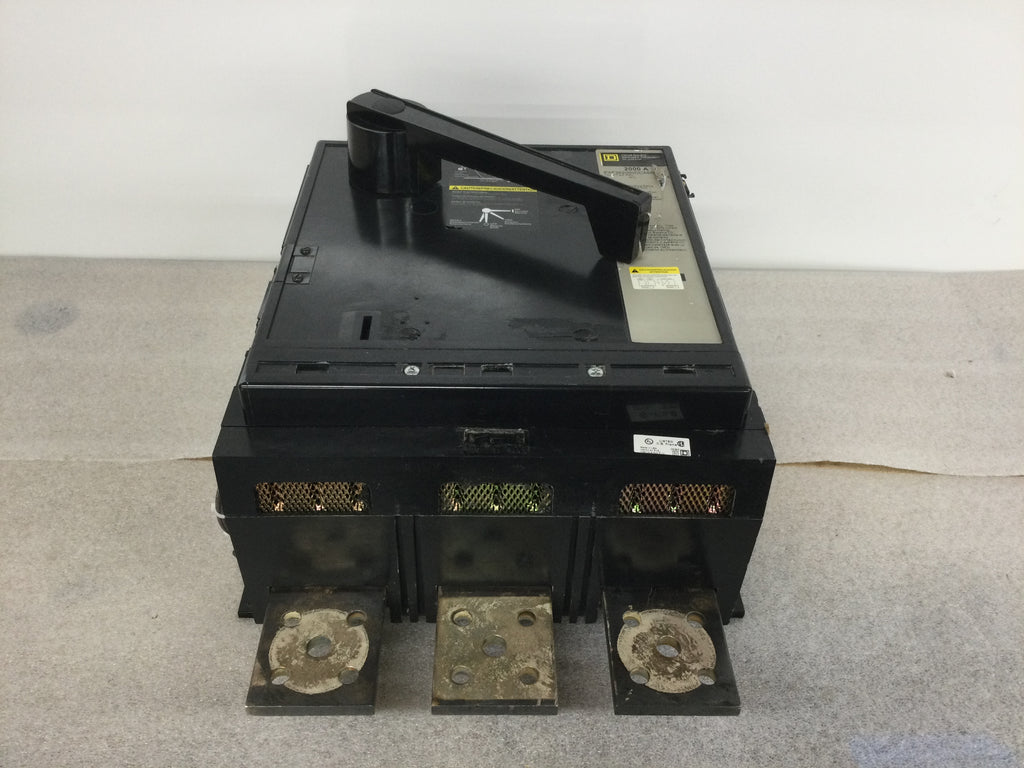

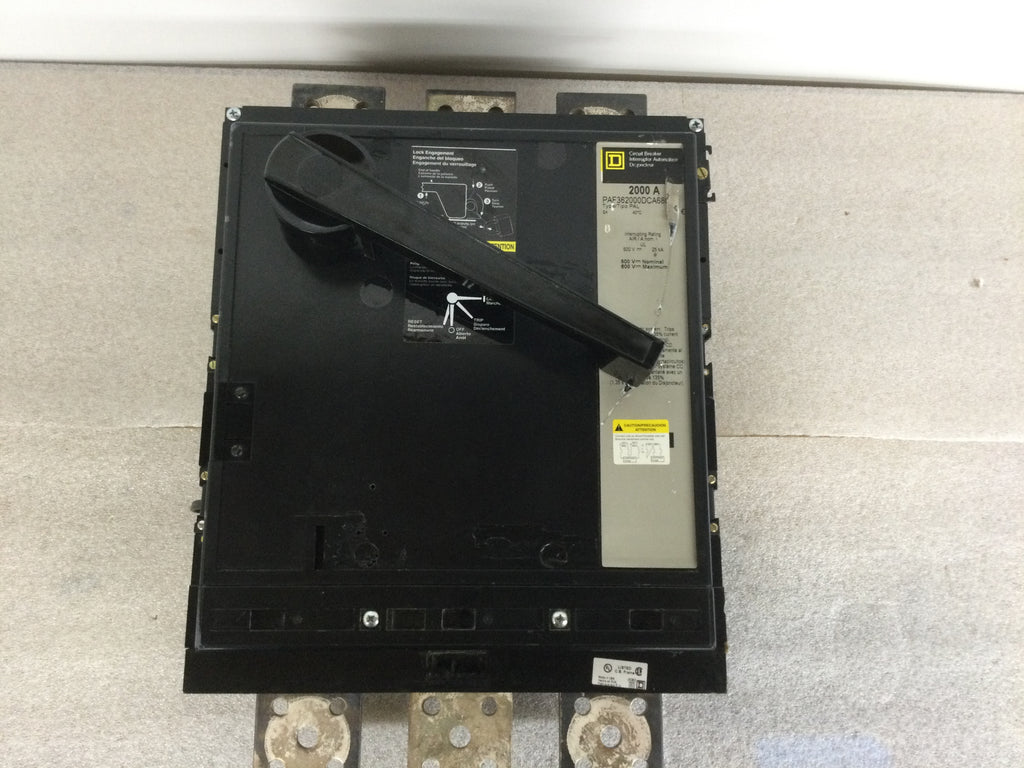

Square D PAF362000DCA680 2000 Amp 3 Pole Circuit Breaker w/Aux Switch
The Square D PAF362000DC680 2000 Amp 3 Pole Circuit Breaker is a durable, reliable solution for integration into your electrical system. Featuring a high-interrupting rating of 200kA, this breaker is designed for use in applications with high fault currents. With its convenient compressed-dimension design, it's easy to find a place for it.
Molded Case Circuit Breaker
2000 Amps
Type PAL
Auxiliary Switch | Undervoltage Trip
For Use on DC System
3 Pole
500 VDC Nominal
600 VDC Maximum
Interrupting Rating:
25,000 Amps @ 500 Volts DC
Aux. Switch:
10 Amps @ 120/240 VAC @ 1/3 HP
1/3 HP @ 120 VAC or 240 VAC
5 Amps @ 120 VAC
1/2 A @ 125 VDC
1/4 A @ 250 VDC

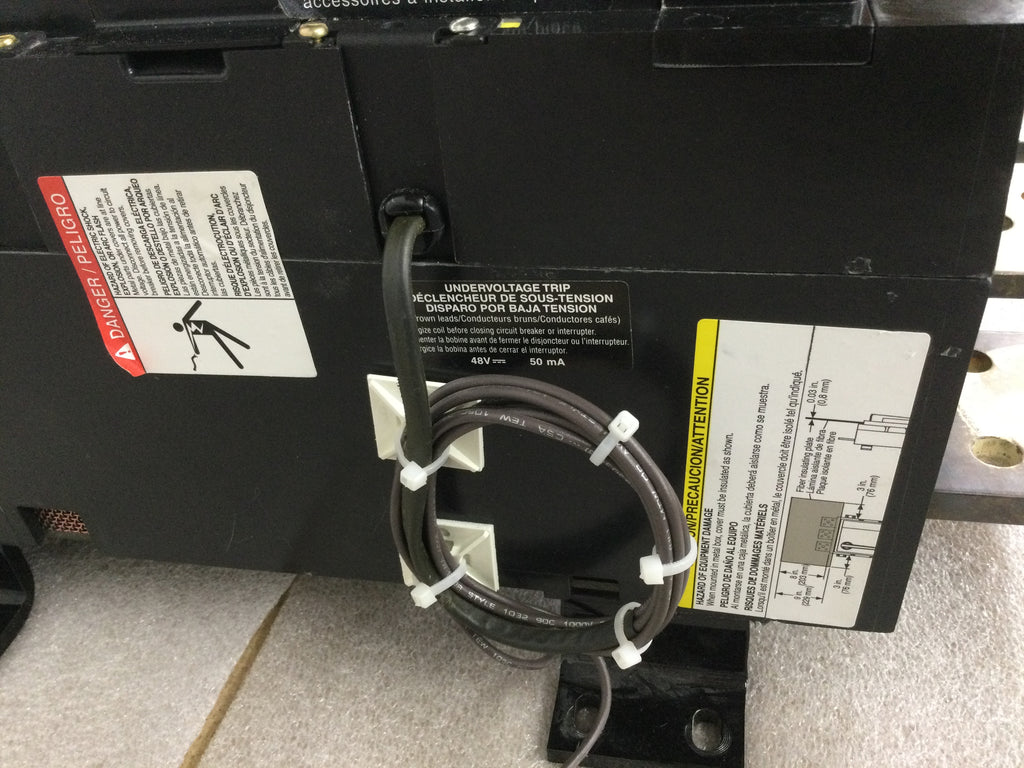

Undervoltage Trip:
48 VDC
50 mA
Breaker Weight: 62.9 lbs.
Breaker Dimensions: 7" x 12" x 14" (D x W x H)
(add 2" for handle to depth measurement)

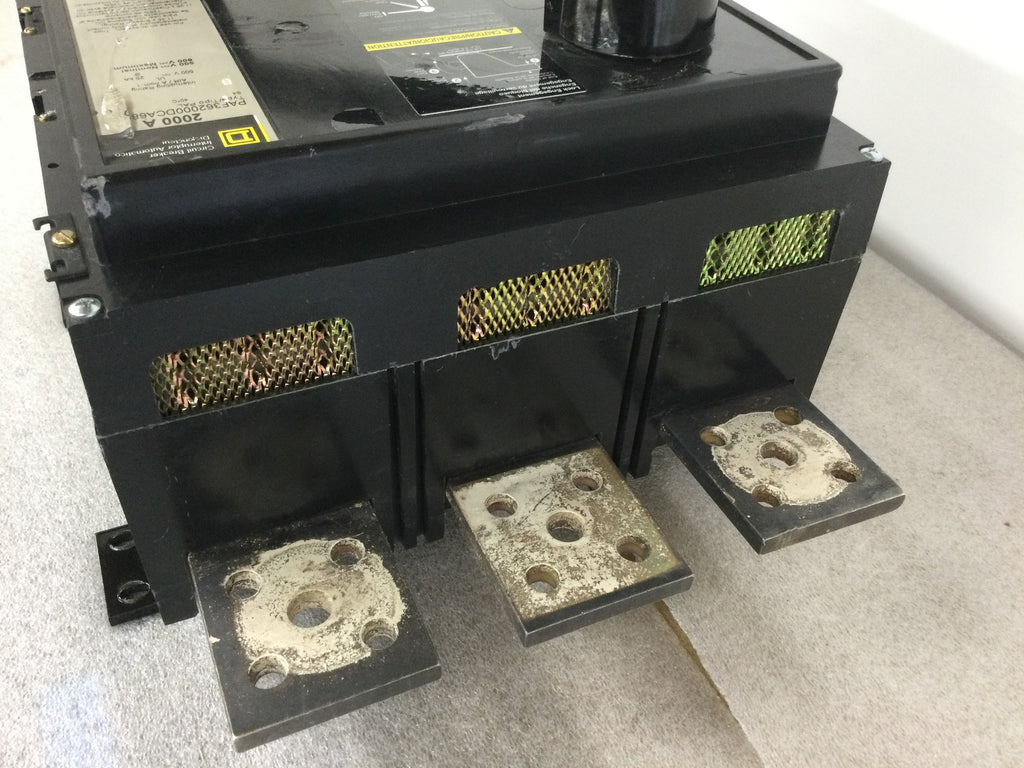

(add 6" for bus bar, 3" each on top & bottom, to height measurement)
