Description

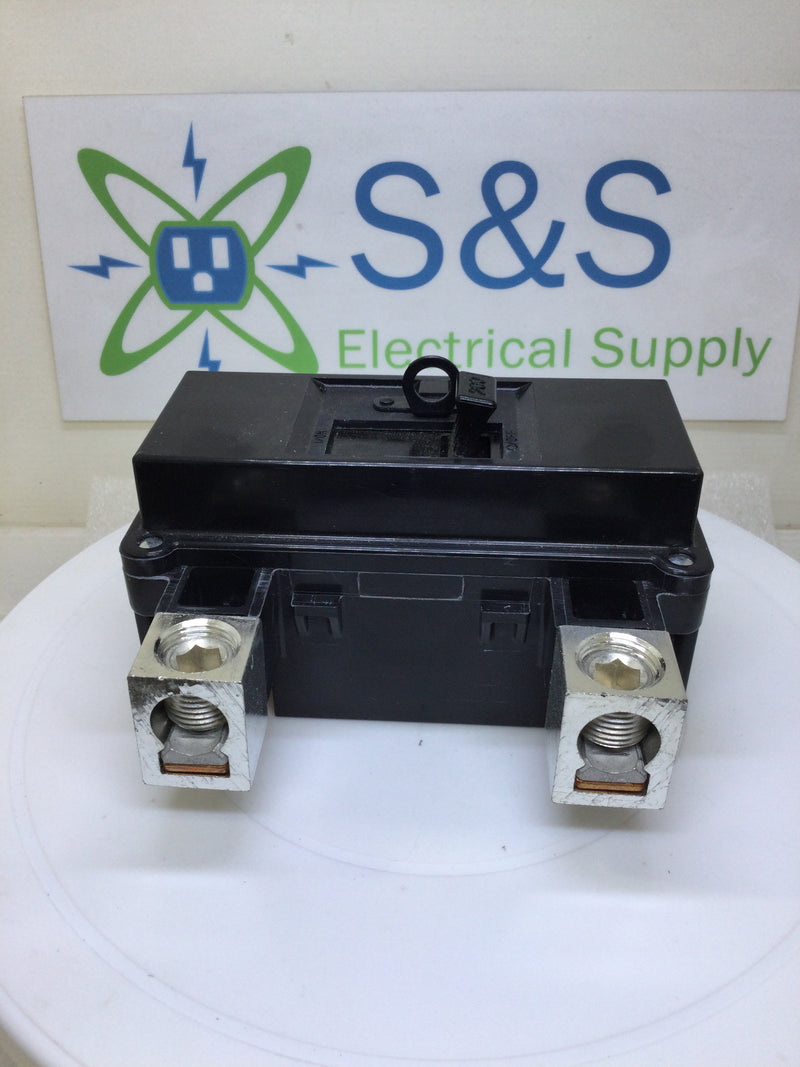

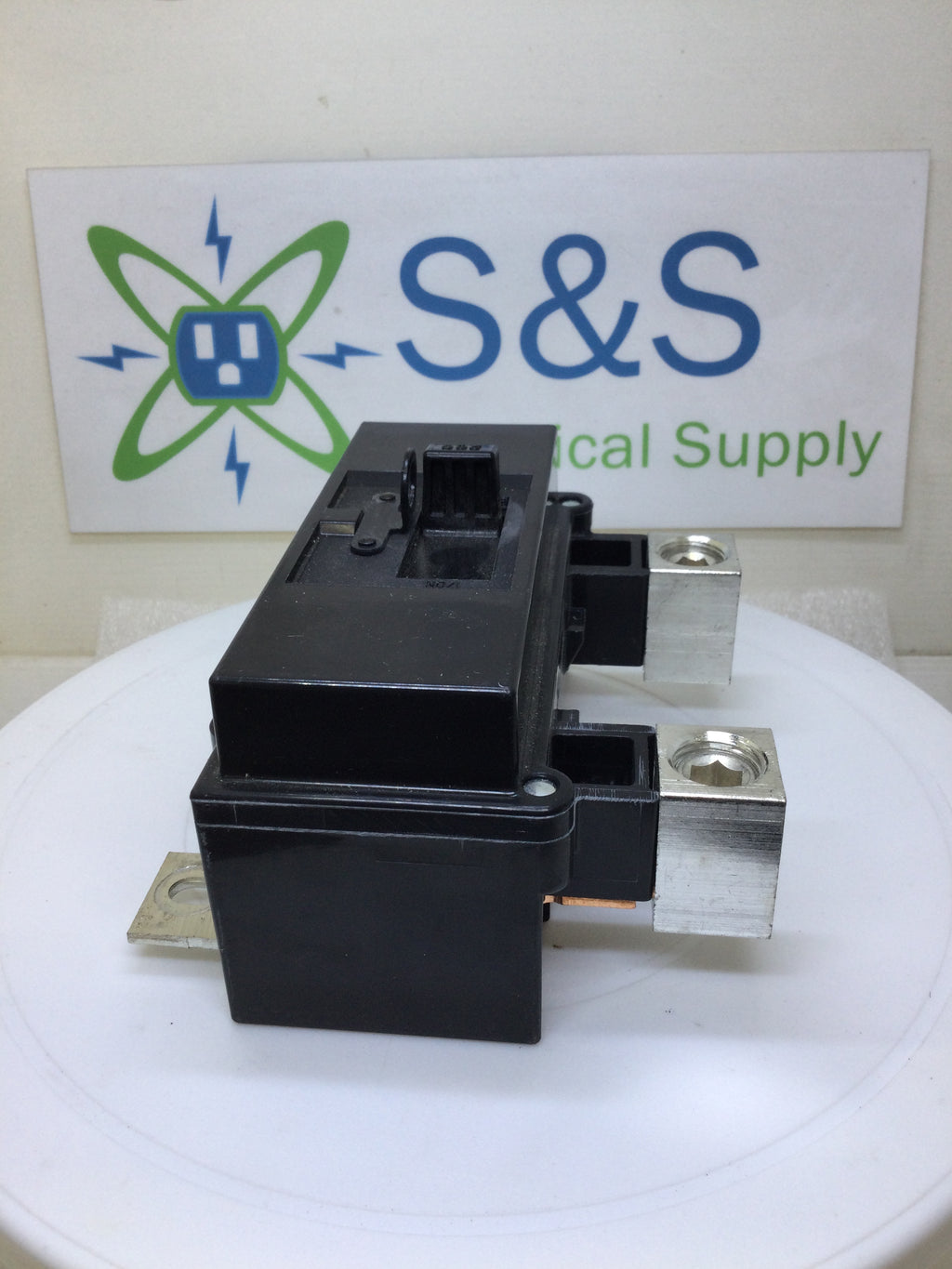

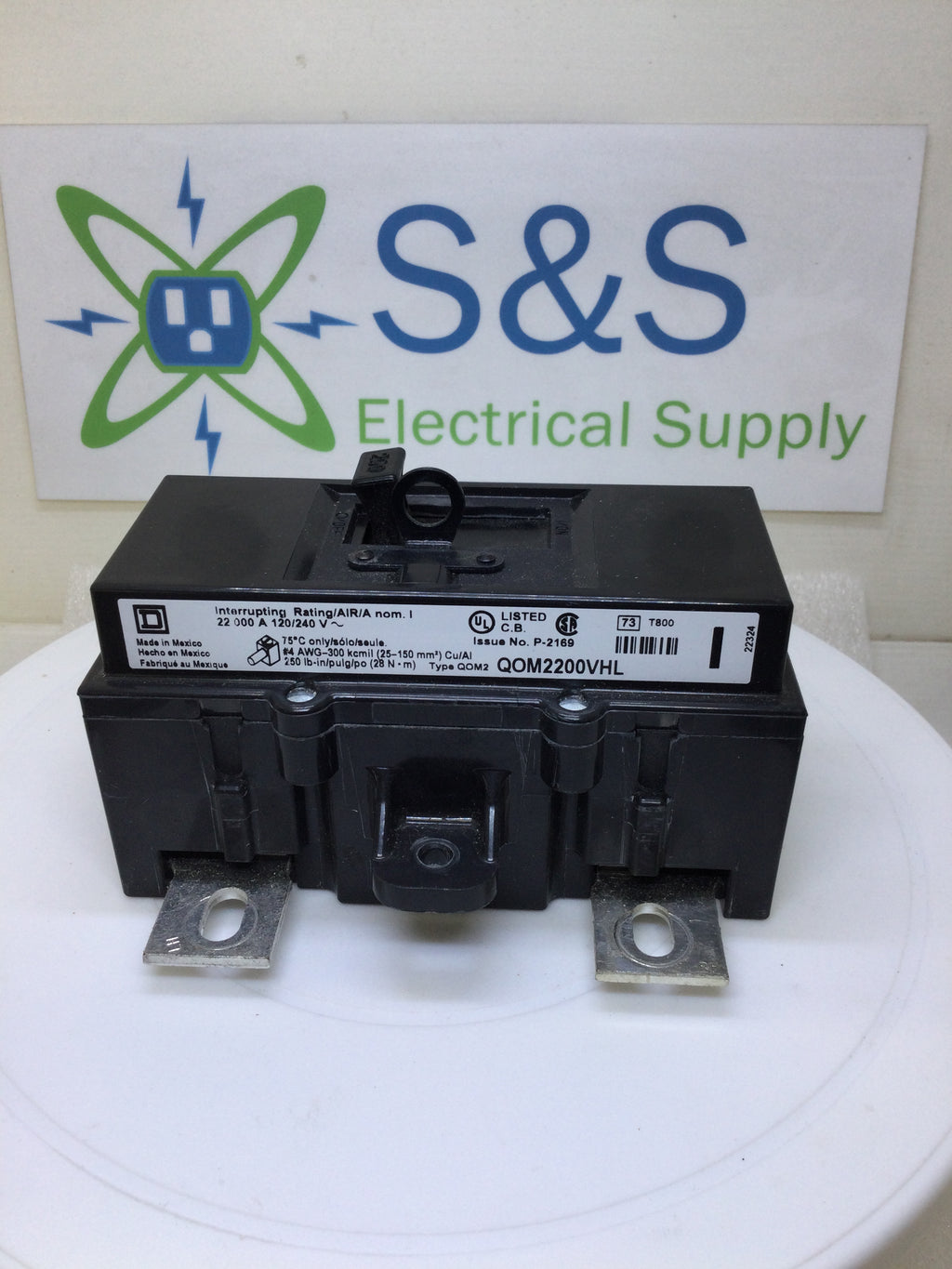

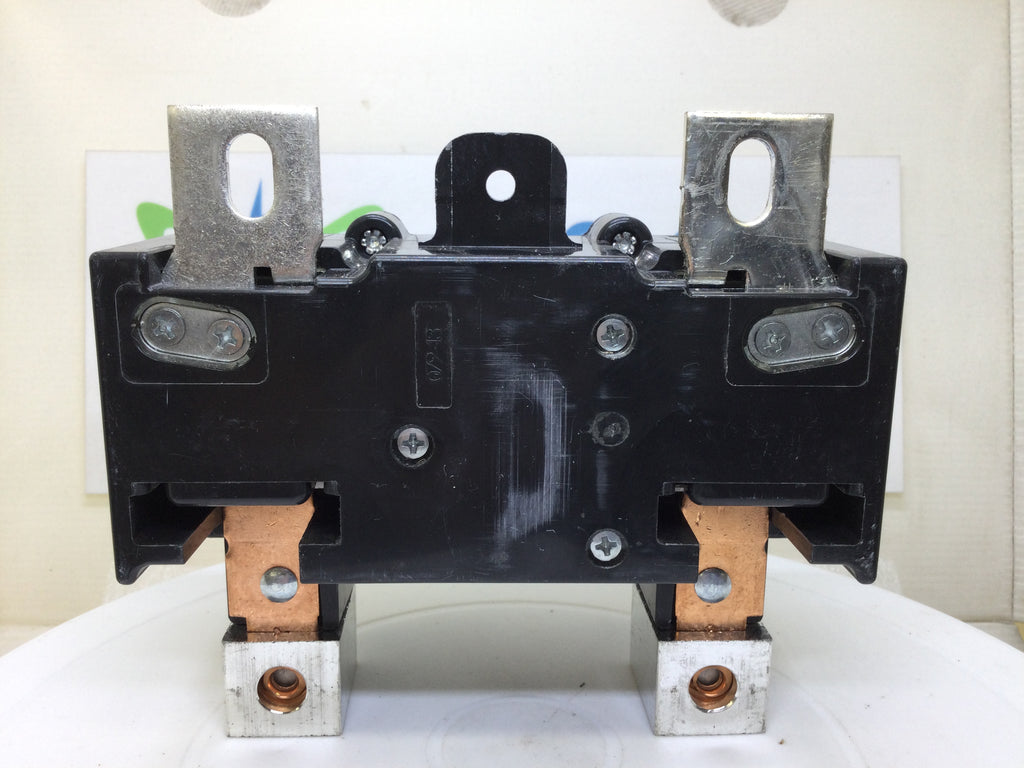

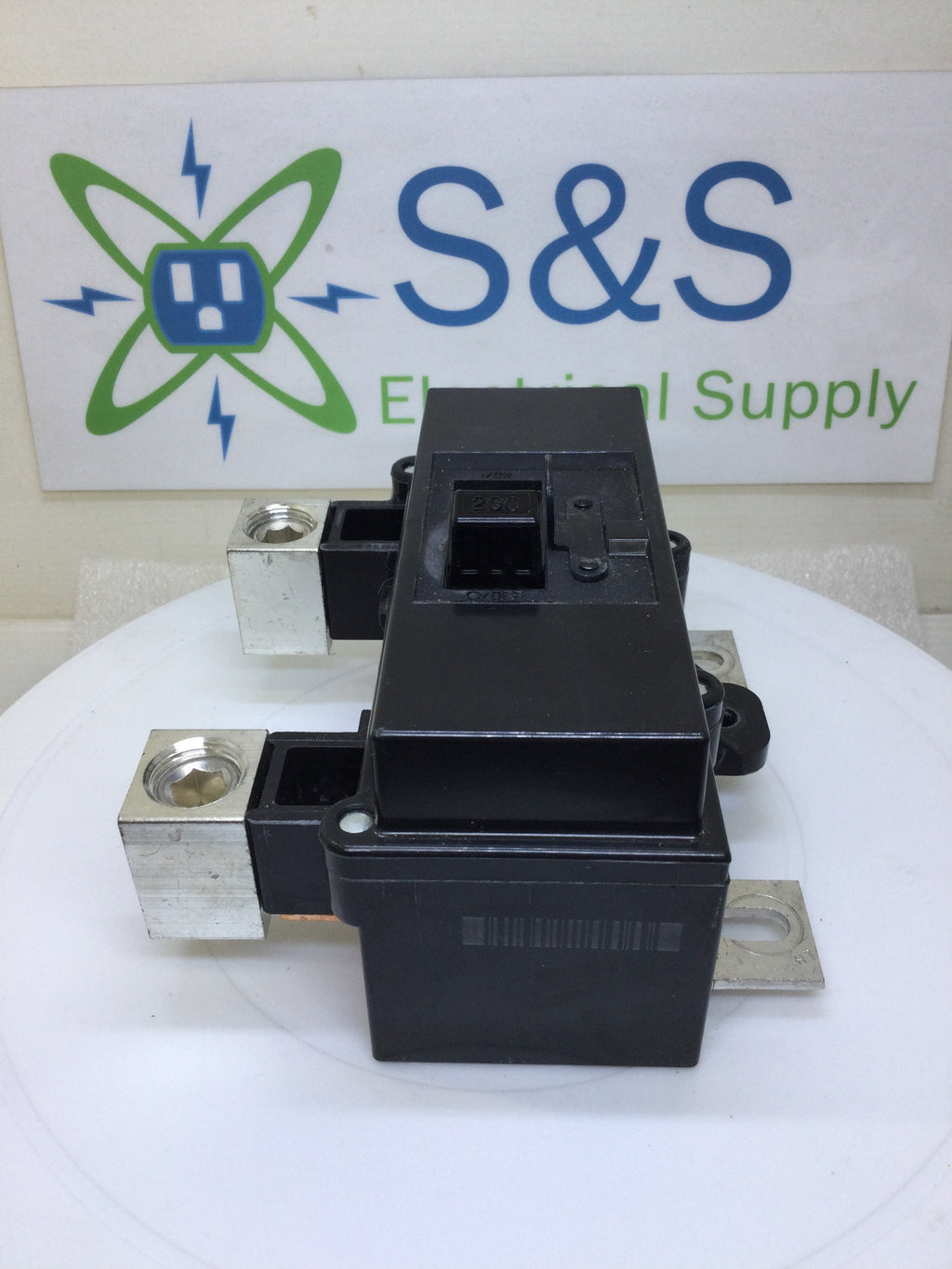

Square D QOM2200VHL 200 Amp 2 Pole 120/240Vac 22KA Circuit Breaker
- Type: Main breaker
- Current Rating: 200 Amps
- Voltage: 120/240V AC
- Poles: 2 poles
- Mounting Type: Bolt-on
- Breaking Capacity: 22kA
- Connection Type: Feed-thru
- Protection Type: Thermal magnetic
- Functions: Long-Time (LI) and Instantaneous
- Certifications: UL listed, CSA certified
- Application: Residential, commercial, and industrial power distribution
- Dimensions: 5.59" H x 5.08" W x 3.58" D
- Weight: 2.58 lbs (1.17 kg)
- Square D QOM2200VHL is compatible with the Square D QOM2200VH
- "L" in Square D QOM2200VHL designates that it is a "Load Center" compatible main breaker.
QOM2200VH - Main breaker, QO, 200A, 2 pole, 120/240VAC, 22kA, bolt on | Schneider Electric USA
