Description
Manufacturer: Square D/Schneider Electric

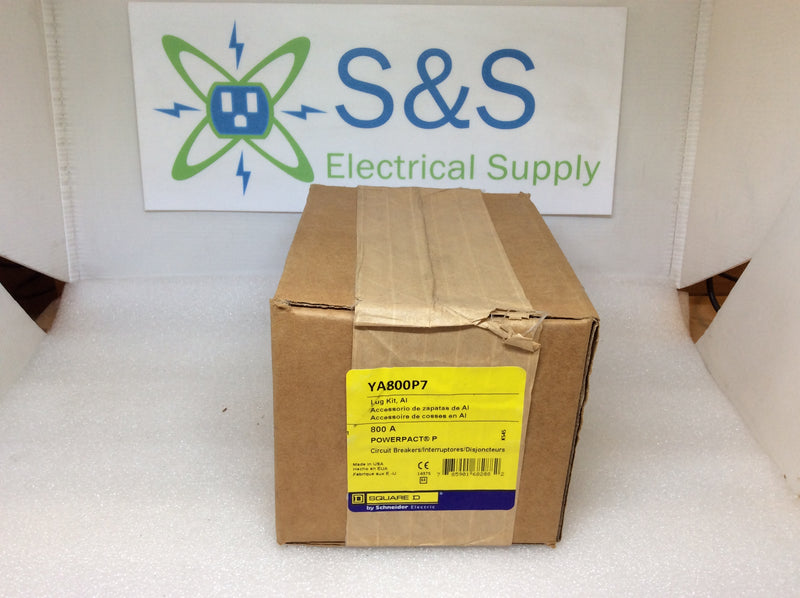

Cat. No: YA800P7
Alternate Part No: YA800P7
Product Type: Circuit Breaker Lug Terminals
Frame Type: MDL, MDM, MDP, MGL, MGM, MGP, MJL, MJM, MJP, MLL, MLM, MLP, PGL, PGM, PGP, PGD, PKL, PKM, PKP, PKD, PLL, PLM, PLP, PLD
Type: YA
Material: Aluminium
Mounting: Unit mount, Compression
Amperage Rating: 800 A
AWG Gauge: 500, 750 kcmil aluminum/copper
Size: 4.7 Inch H x 4.7 Inch W x 6.4 Inch D
Approval: UL, CSA

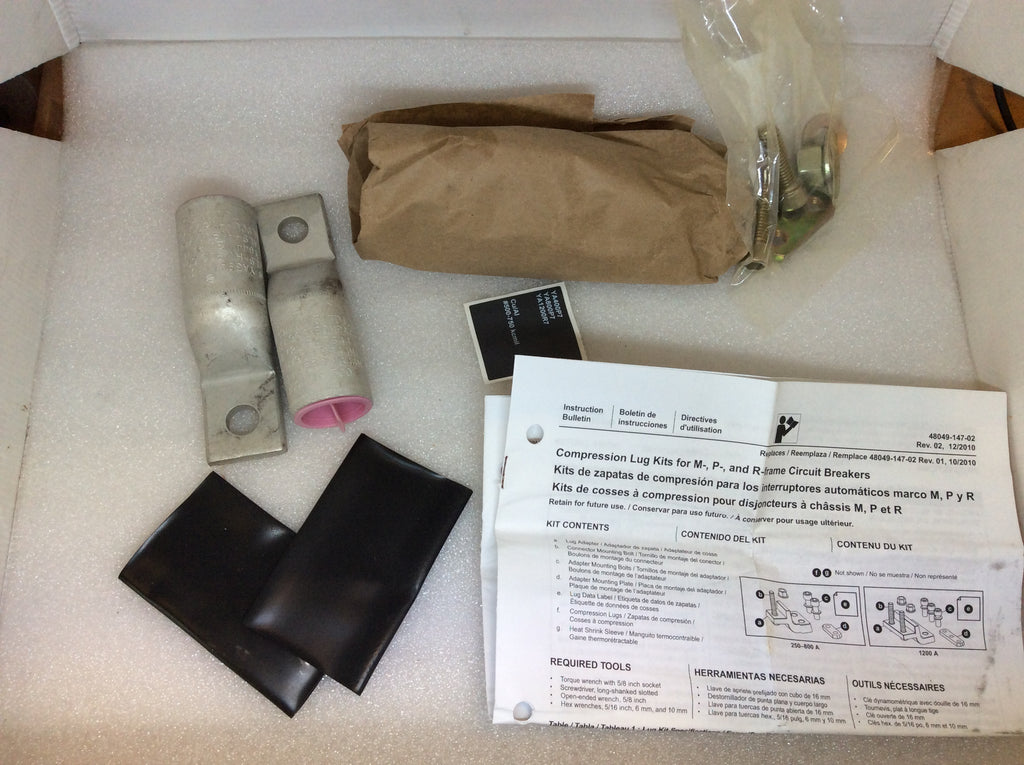

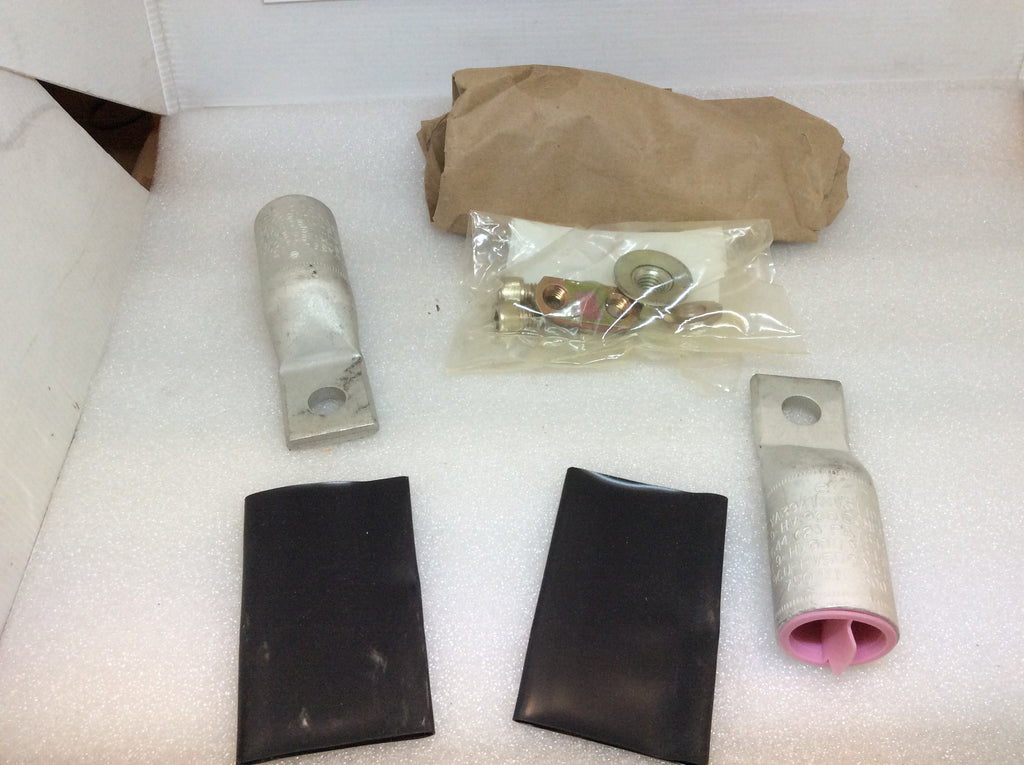

The following are the compression lugs available for use on unit mount M-frame breakers, and I-line M-frame breakers when sufficient wire bending space is available:
YA250P3 - (1) 2/0 - 300 kcmil Al/Cu - 1 lug per kit
YA400P3 - (2) 2/0 - 300 kcmil Al/Cu - 2 lugs per kit
YA300P5 - (1) 4/0 - 500 kcmil Al/Cu - 1 lug per kit
YA600P5 - (2) 4/0 - 500 kcmil Al/Cu - 2 lugs per kit
YA400P7 - (1) 500 - 750 kcmil Al/Cu - 1 lug per kit
YA800P7 - (2) 500 - 750 kcmil Al/Cu - 2 lugs per kit
CYA400P5 - (1) 4/0 - 500 kcmil Cu - 1 lug per kit
CYA600P5 - (2) 4/0 - 500 kcmil Cu - 2 lugs per kit
CYA800P7 - (2) 500 - 750 kcmil Cu - 2 lugs per kit
YA250P3 - (1) 2/0 - 300 kcmil Al/Cu - 1 lug per kit
YA400P3 - (2) 2/0 - 300 kcmil Al/Cu - 2 lugs per kit
YA300P5 - (1) 4/0 - 500 kcmil Al/Cu - 1 lug per kit
YA600P5 - (2) 4/0 - 500 kcmil Al/Cu - 2 lugs per kit
YA400P7 - (1) 500 - 750 kcmil Al/Cu - 1 lug per kit
YA800P7 - (2) 500 - 750 kcmil Al/Cu - 2 lugs per kit
CYA400P5 - (1) 4/0 - 500 kcmil Cu - 1 lug per kit
CYA600P5 - (2) 4/0 - 500 kcmil Cu - 2 lugs per kit
CYA800P7 - (2) 500 - 750 kcmil Cu - 2 lugs per kit
